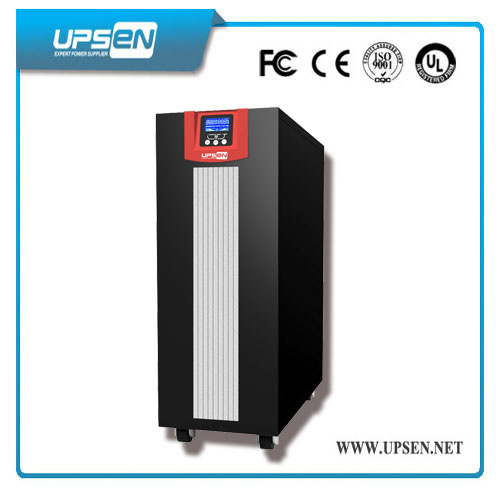

No Break Intelligent Double Conversion Online UPS Power Supply 380VAC 50Hz 3 Phase for Data Rooms
Price: |
US $ 1000-5000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Money Gram |
Prod Model: |
HE33 Series |
Noninal Output Capacity: |
8-160kw |
Output Power Factor: |
0.8 |
Output Wave: |
Pure Sine Wave |
Display: |
LED/LCD Display |
Phase: |
Three Phase |
Type: |
On-line |
Protection: |
UPS Over Current, Short Circuit, Battery Low Volta |
Application: |
Large-Medium Computer Data Center, Industrial Proc |
Brand: |
Upsen or OEM |
Product Description
No Break Intelligent Double Conversion Online UPS Power Supply 380Vac 50Hz 3 Phase for data roomsPower Range: 10K-200KVA (3ph in/3ph out)1. EPO function.
2. most advanced and new intelligent digital UPS.
3. Combined with high speed MCU and advanced CPLD technology.
4. IGBT and static switch.
ApplicationLarge-medium computer data center, industrial process and other mission-critical equipment.Key Features- DSP control.
- Double CPU control.
- Modularize.
- Battery can be sharing.
- Up to 8 units in parallel.
- Compatible with generator.
- Manual maintenance bypass.
- Wide input voltage range.
- High output power factor.
- Strong environmental adaptability.
- Advanced battery management.
- N+X parallel redundancy.
- Strong shock resistance ability.
- EPO function.
- Full protection against over-discharge, overcharge, over load.

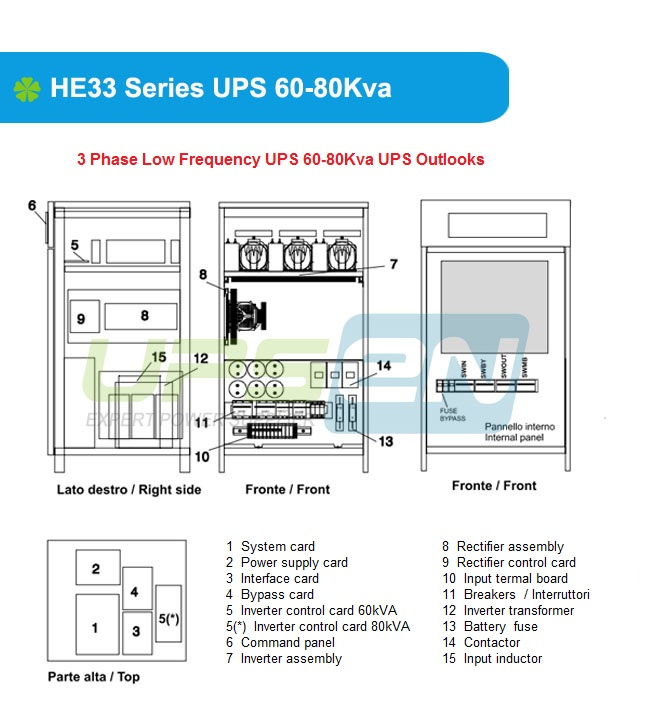

Technical Specification High Efficiency Strar Series HE33 10K-200K |
Model | HE33 Series UPS |
Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
Operate type | Double conversion online type |
Input | Nominal voltage | 220V/380, 230/400, 240/415V |
Voltage Tolerance | 380/400/415V±25% |
Frequency | 50Hz/60Hz±5% |
Permitted Frequency Tolerance | ±2% (selectable from ±1% to 5% from the front panel) |
Soft start | 0-100% in 30" (selectable) |
Input power factor | 0.95(with input filter) |
Standard features | Back Feed protection separable bypass line |
Phase | Three phase +N+G |
Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
Static stability | ±5% in 19ms |
Distortion | Linear load <3%, non linear load<5% |
Power factor | 0.8 |
Output wave | Pure sine wave |
Crest factor | 3:01 |
Battery voltage | Standard battery voltage | 384V | 432V | 480V |
Floating charge | 432V | 486V | 540 |
Terminal voltage | 336V | 378V | 420V |
Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
Maximum Discharge Current | 28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
Main Function | Active voltage change | 0-100%±5% |
Instant recover time | <10ms |
Imbalance voltage | <±5%,<±1%( Balance load voltage) |
Overload capacity | 125%→10min,150%→1min |
Static switch | Automatic |
Protection | UPS over current, short circuit, battery low voltage, over heat |
Cold method | Compel aeration ( temperature control mode) |
Noise | 60-65dB |
Display | LED,LCD display |
Remote signalling | Voltage-free contacts |
Remote commands | EPO and bypass |
Communication Port (Optional) | double RS232 + remote contacts + 2 communication interface slots |
Alarm | Alarm with buzzer and indicators |
Environment | Temperature: 0-40C Humidity: 0-90% |
*Specification are subject to change without prior notice |
Company & Product Details

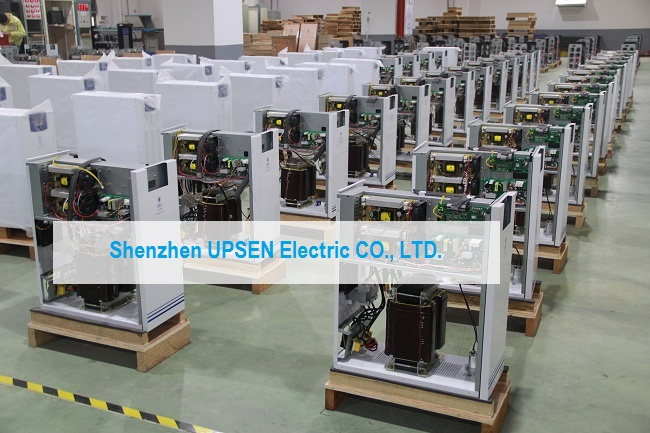

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
