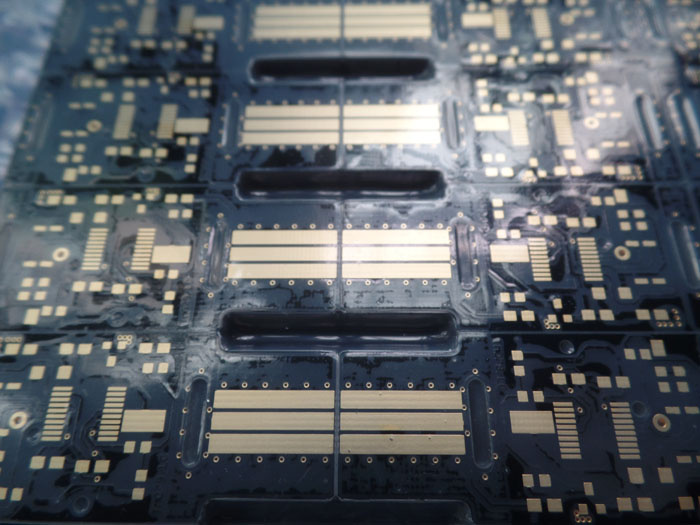

No Legend Double Sided PCB with Immersion Gold Board
| Price: |
US $ 0.43/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
BIC12O4R1.4 |
| Surface Finish: |
Immersion Gold |
| Minimum Trace And Space: |
8.5 Mil/6.5 Mil |
| Board Thick: |
1.6mm |
| Copper Thick: |
1.5oz |
| Solder Mask Color: |
Black |
| Legend Color: |
No Required |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Race And Space: |
0.3/0.9mm |
| Test: |
100% Electronic |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
2 Layer Double Sided PCB FR4 Tg 170 Immersion Gold Black Solder Mask for Bluetooth
Receiver
Commodity Introduction
This is a type of FR-4 PCB for the application of Bluetooth. It's a 2 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask from Kuang Shun. It's fabricated per IPC 6012

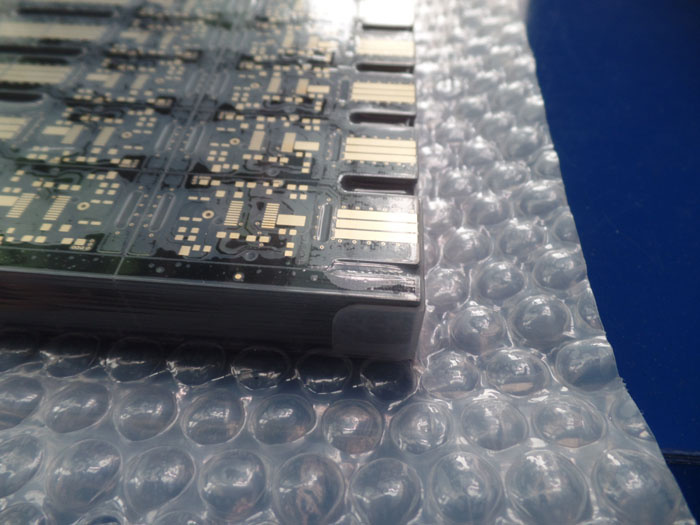

Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

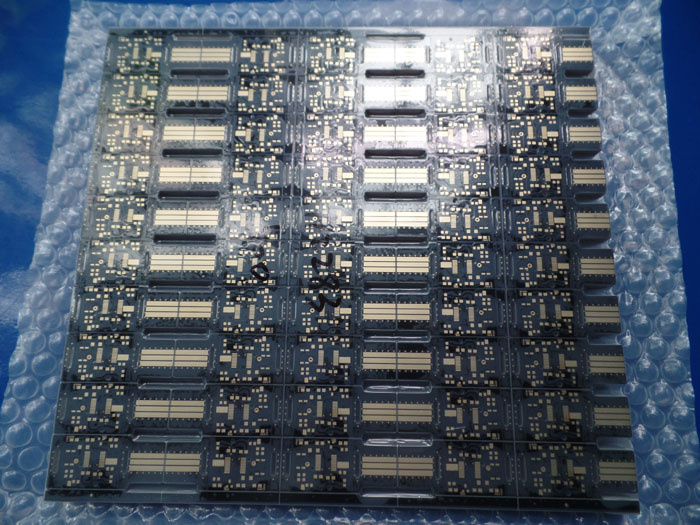

Parameters & Data Sheet| PCB SIZE | 250 x 236mm=50PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| FR-4 1.5mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 8.5mil/6.5mil |
| Minimum / Maximum Holes: | 0.3/0.9mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 1365 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (14.3%) 2micoinch over
100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Black, Kuangshun, SKM-S6189BK31 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks, V-cut |
| MARKING | |
| Side of Component Legend | No silkscreen required. |
| Colour of Component Legend | No silkscreen required. |
| Manufacturer Name or Logo: | No silkscreen required. |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Bluetooth receiver, Gsm
Server
Hdmi Splitter
Outdoor Lighting
Routers |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Fast PCB prototypes| Category | Fastest lead time | Stanardard lead time |
| 2 layer | 24 hrs | 4 days |
| 4 layer | 48 hrs | 5 days |
| 6 layer | 72 hrs | 7 days |
| 8 layer | 96 hrs | 9 days |
| 10 layer | 120 hrs | 11 days |
| 12 layer | 120 hrs | 12 days |
| 14 layer | 144 hrs | 15 days |
| 16-20 layer | Depends on specifications |
| 20 layer above | Depends on specifications |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
