No Silkscreen Multilayer PCB 6layer Fr4 with 1.0mm Board Thickness
| Price: |
US $ 0.54/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-137-V1.37 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.0mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Blue |
| Colour Of Component Legend: |
No Silkscreen Required |
| Minimum Trace And Space: |
5 Mil/9 Mil |
| Minimum / Maximum Holes: |
0.3/3.1mm |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

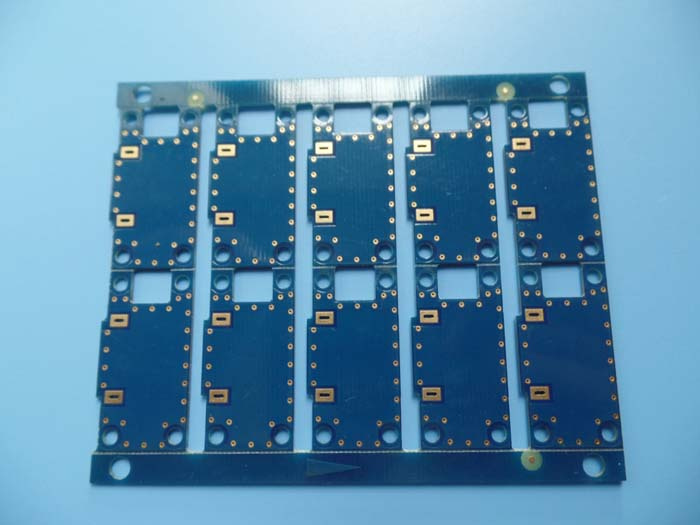

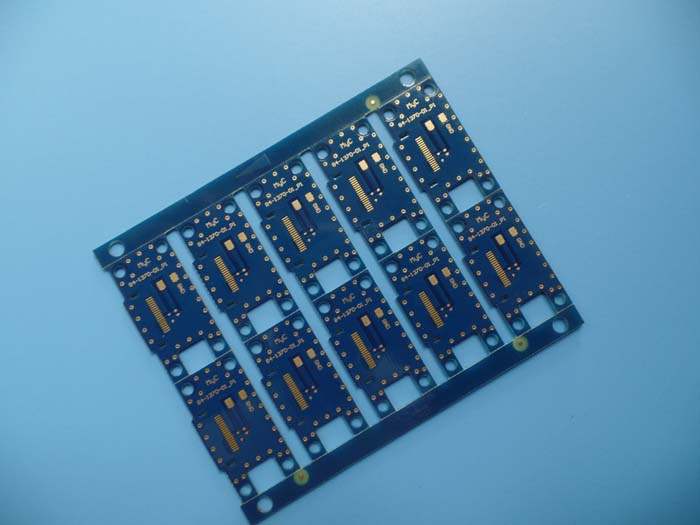

Multilayer PCB Manufacture 6 Layer Circuit Board Immersion Gold With Blue Solder Mask
Applied In Sound System
Commodity IntroductionThis is a type of FR-4 for the application of Sound System. It's a 6 layer board at 1.0mm thick. The
base laminate is from Shengyi, Solder mask and silkscreen from Kuangshun. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 125 x 91mm=10PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 6 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.102mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 3 |
| FR-4 0.102mm |
| copper ------- 35um(1oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/9.mil |
| Minimum / Maximum Holes: | 0.3/3.1mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 215 |
| Number of Milled Slots: | 14 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135ºC, CTI 175V-249V, er<5.4. Shengyi Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.0mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel (13.2% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, KSM-6189BL04, Kuangshun Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen required |
| Colour of Component Legend | No silkscreen required |
| Manufacturer Name or Logo: | Copper etched on tooling strips. |
| VIA | Plated through hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Sound system, Gigabit Hub
RFID Access Control
Gigabyte Switch
Arbitrary Waveform Generator |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Bicheng Company Advantage

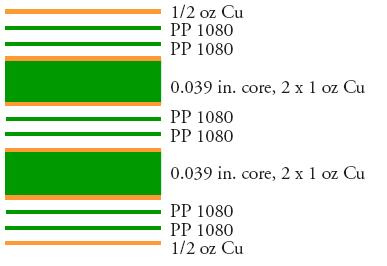

Multilayer PCB Stackup: .062" Finished Thickness
This is reference layer stackup. The stackup of multilayer PCB's can be reached in many different
ways.
Hybrid PCB: Hybrid of RO4350B and FR-4 material can reduce signal loss in high frequency
application. and meet the development needs of communication technology.
Frequently Asked Questions
Do you sell high frequency PCB?
Yes. We offer high frequency PCB and hybrid of high frequency and FR-4 mixed. The most used
high frequency material is RO4350B and RO4003C, double sided and multilayer.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
