No Silkscreen PCB Board 2alyer Black Soldermask with Immersion Gold
| Price: |
US $ 1.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-216-V2.16 |
| Board Thickness: |
0.062 Inch |
| Metal Weight: |
1 Oz Copper |
| Surface Finish: |
Enig (Immersion Gold) |
| Solder Mask: |
Lpi Black, Both Sided Per Ipc-Sm-840, Class H |
| Silkscreen: |
White, Both Sides Per Ipc-a-600h, Class 2 |
| Minimum Conductor Width: |
0.0035inch |
| Smallest Drill Hole: |
0.006 Inch |
| Minimum Finished Feature Spacing: |
0.005 Pad to Pad, 0.005 Trace to Trace |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

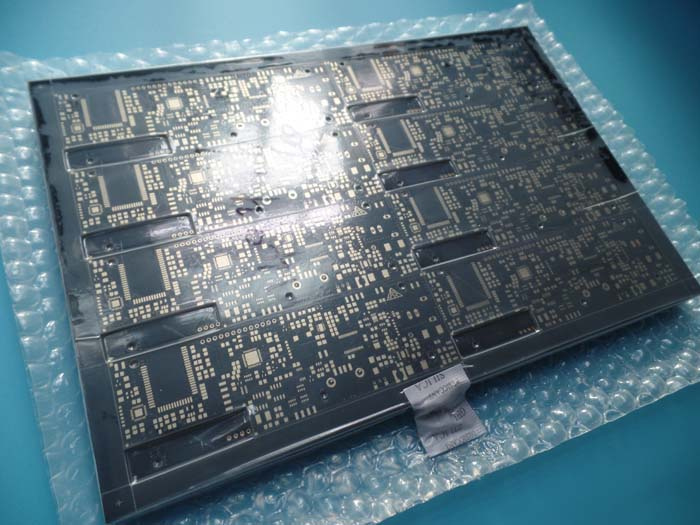

Black Solder Mask Double Sided PCB NO silkscreen with Immersion Gold in 8up Panel for Alarm System
Commodity Introduction This is a type of FR-4 PCB for the application of Alarm System. It's a 2 layer board at 0.062 inch thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2

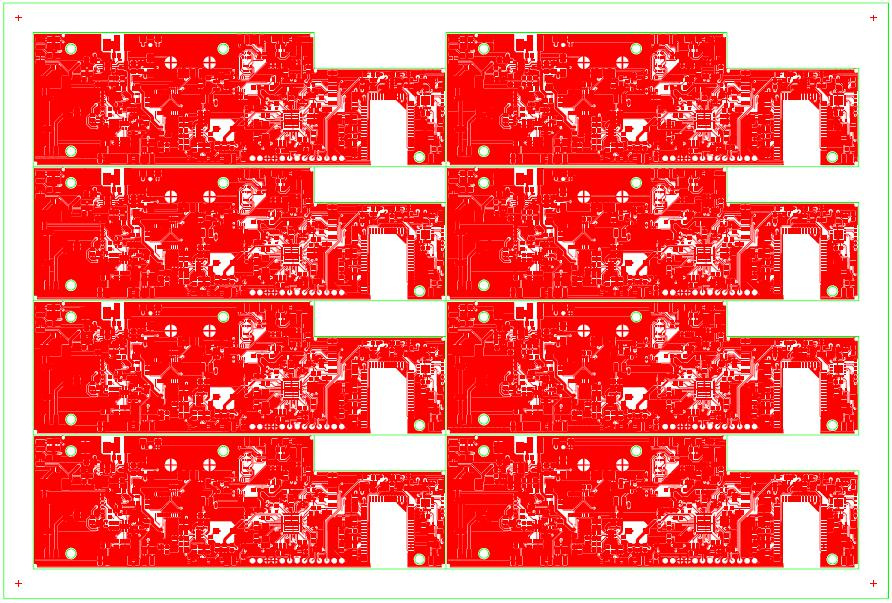

using supplied Gerber data. Each 10 boards or panels are packed separately.Panel 8up
Basic specifications and Manufacturing requirement| Number of layers: | 2 |
| Material: | ITEQ FR-4 |
| Board thickness: | 0.062 inch |
| Metal weight: | 1 oz copper |
| Surface finish: | ENIG (Immersion gold) |
| Solder mask: | LPI Black, Both sided per IPC-SM-840, Class H |
| Silkscreen: | White, both sides per IPC-A-600H, Class 2 |
| Board edge tolerance: | +/-0.015mm |
| Smallest drill hole: | 0.006 inch |
| Minimum conductor width: | 0.0035inch |
| Diameter around true position: | in accordance with IPC-2220 level B |
| Conductor width tolerance: | In accordance with IPC-600G, Class 2 |
| Minimum finished feature spacing: | 0.005 pad to pad, 0.005 trace to trace |
| Board fabricator markings: | Date code |
| Units of measurement: | millimeters |
Boards are 100% electrically
tested for open s and shorts | |
Board is fabricated in accordance
with IPC-600G, Class 2 | |

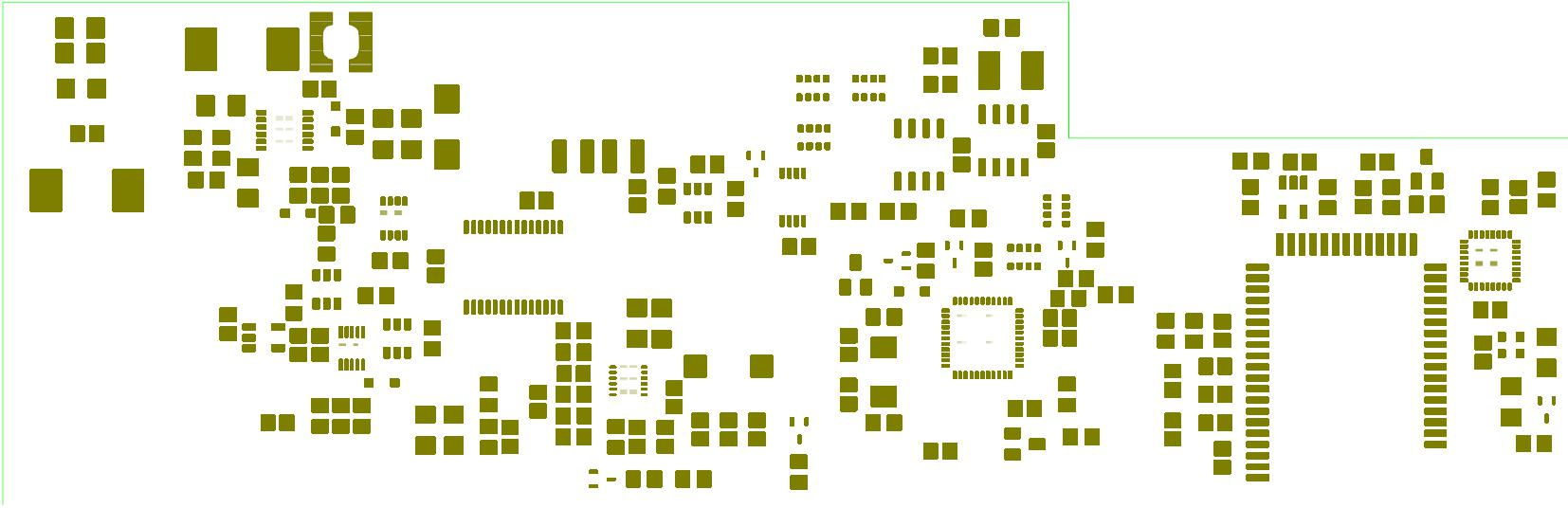

Solder Paste

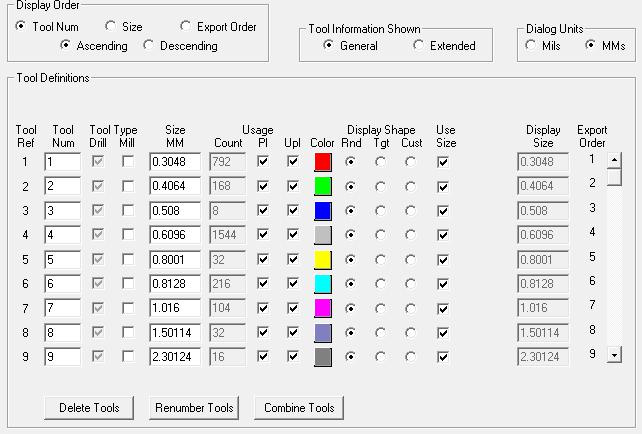

Drill table
Learn PCB and Buy PCBFrequently used Unit Conversion in PCB industry 1 inch= 25.4mm1 inch= 1000mil1 foot = 12 inch=0.3048 meter 1mm = 39.37mil1mm = 1000µm1µm = 39.37 micro inch 1oz = 35µm = 1.4mil = 305g/m² 1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²1ft² = 144 inch² = 0.09290304m² = 9.29dm²1m² = 1549.9969 inch²Advantages1. ISO certified PCB manufacturing factory.
