Non-Armored Network Fiber Cable /Cables De Fibra Optica

Prod Model:	GYXY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D
Armored:	No Armored
Fiber Material:	Doped Silica
Strength Member:	Two Parallel Steels Wire
Material Of Jacket:	HDPE/Lszh /Flame Retardant Sheath
Tube:	Central Loose Tube
Fiber:	Single Mode
Bend Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Applications:	Aerial and Duct
Certificate:	ISO9001 Tlc RoHS
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-24 Cores
Brand:	Efon
Sheath Material:	PE/LSZH Sheath/Flame Retardant PE/Anti-Rodent PE

Product Description

Product Description

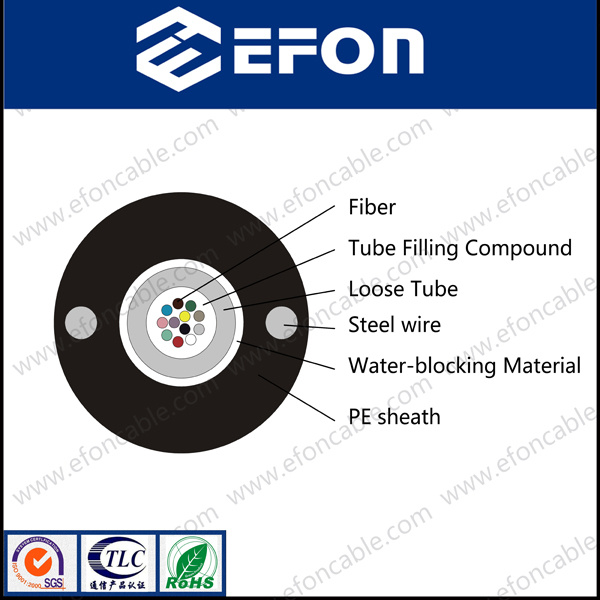

  The fibers,250µm,are positioned in a loose tube made of a high modulus plastic. The tubes ate filled with a water-resistant filling compound, Over the tube water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides, The cable is completed with the PE sheath.

Feature

1, Good mechanical and temperature performance
2, High strength loose tube that is hydrolysis resistant
3, Special tube filling compound ensure a critical protection of fiber
4, Crush resistance and flexibility
5, Two parallel steel wires ensure tensile strength
6, PE sheath protects cable from ultraviolet
7, Small diameter light weight and friendly installation
8, Long delivery length

Applications: Suitable for long-distance communication and indoor communication
Way of laying: aerial duct
Operating temperature: -40 ~ + 70 °C
Bending Radius: Static 10*Cable-diameter: Dynamic 20*Cable-diameter

Mechanical Performance :
Max Tension Performance : IEC 60794-1-2-E
Max. Operation Tension : IEC 60794-1-2-E1
Crush Test : IEC 6079 -1-2-E3
Impact Test : IEC 60794-1-2-E4
Repeated Bending : IEC 60794-1-2-E6
Torsion Test : IEC 60794-1-2-E7
Cable bend : IEC 60794-1-2-E11A
Attenuation Coefficient : ITU-T G.652
Structural Test : IEC-60793-1-20
Environmental Performance
Temperature Cycling : IEC 60794-1-2-F1
Water Penetration : IEC 60794-1-2-F5B
Filing Compound Flow : IEC 60794-1-E14


Technical Parameters

Fiber Count		2-8	10-12	14-24
Diameter of steel wire(mm)		0.7
Diameter of Loose tube(mm)		2.0	2.4	2.8
Diameter of Cable(mm)		5.8	6.0	6.3
Gross weight(Kg/Km)		54	55	62
Min. bending radius		Static 10xD     Dynamic 20xD
Max. tensile force, N		Short term/ Long term   1000N/300N
Max Crush Resistance(N/100mm)		Short term/ Long term   400N/200N
Allowable  T emperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C
