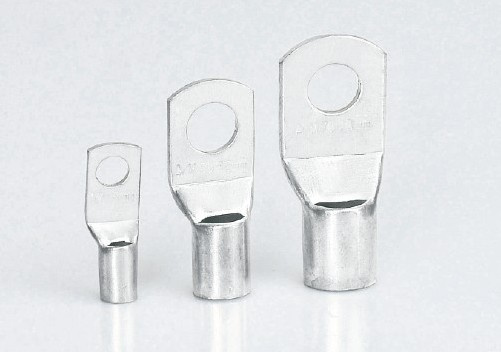

Non-Insulated Cable Copper Lug Sc Terminal

Name: Non-Insulated Cable Copper Lug Sc Terminal
Brand: all-electronics-online.com
SKU: 715292945
Availability: InStock
Rating: 4.6 (31 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals

Product Description

Non-Insulated SC Terminal
1. Cerifications: CE RoHS ISO9001
2. Terminal Material: Copper
3. Insulated Sleeve: PVC

Application:
1) These products are suitable for the connection of copper conductors (section 1.5mm2-1000mm2) in power cable with electionic equipment
2) they are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature 55 degrees below zero-155 degrees terminal connector
3) Type:

Material:purple copper tin-plated
Item NO	screw dia.d2(mm)	Dimension(mm)				Cable size(mm2)
Item NO	screw dia.d2(mm)	dφ	Dφ	L1	L	Cable size(mm2)
SC 1.5-5	5.3	1.9	3.35	6.5	18	1.5
SC 2.5-4	4.3	2.6	4	7	18	2.5
SC 2.5-5	5.3	2.6	4	7	20	2.5
SC 4-5	5.3	3.2	4.8	7.5	20.5	4
SC 4-6	6.4	3.2	4.8	7.5	22	4
SC 6-5	5.3	3.7	5.3	8	24	6
SC 6-6	6.4	3.7	5.3	8	24	6
SC 10-6	6.4	4.5	6.3	9	24	10
SC 10-8	8.4	4.5	6.3	9	25	10
SC 16-6	6.4	5.7	7.5	11	27.5	16
SC 16-8	8.4	5.7	7.5	11	29.5	16
SC 25-6	6.5	7.2	9	13.5	34	25
SC 25-8	8.4	7.2	9	13.5	34	25
SC 35-8	8.4	8.5	10.8	14.5	37	35
SC 35-10	10.5	8.5	10.8	14.5	38	35
SC 50-8	8.4	9.8	12.5	17	42.5	50

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
