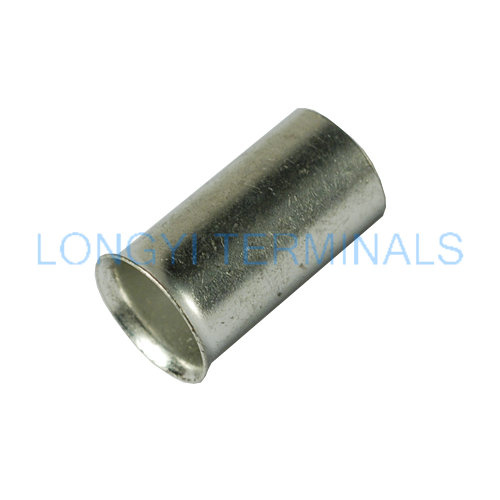

Non-Insulated Cord-End Terminals
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1 /Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cable Lugs |
Product Description
CORD-END TERMINALS
1, cable lugs are suitable for the connection of copper conductors in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.
3, Working temperature -55oC-150oC
4, Surface: Tin-plated
|
PART NO |
ITEM NO |
DIMENSIONS |
|
L |
d1 |
d2 |
T |
|
LY0023-0001 |
LN05006 |
6.1 |
1.30 |
2.1 |
0.15 |
|
LY0023-0002 |
LN05008 |
8.1 |
1.30 |
2.1 |
0.15 |
|
LY0023-0003 |
LN05010 |
10.1 |
1.30 |
2.1 |
0.15 |
|
LY0023-0004 |
LN07506 |
6.1 |
1.70 |
2.5 |
0.15 |
|
LY0023-0005 |
LN07508 |
8.1 |
1.70 |
2.5 |
0.15 |
|
LY0023-0006 |
LN07510 |
10.1 |
1.70 |
2.5 |
0.15 |
|
LY0023-0007 |
LN07512 |
12.3 |
1.70 |
2.5 |
0.15 |
|
LY0023-0008 |
LN07515 |
15.3 |
1.70 |
2.5 |
0.15 |
|
LY0023-0009 |
LN10006 |
6.1 |
1.90 |
2.7 |
0.15 |
|
LY0023-0010 |
LN10008 |
8.1 |
1.90 |
2.7 |
0.15 |
|
LY0023-0011 |
LN10010 |
10.1 |
1.90 |
2.7 |
0.15 |
|
LY0023-0012 |
LN10012 |
12.3 |
1.90 |
2.7 |
0.15 |
|
LY0023-0013 |
LN15008 |
8.1 |
2.10 |
2.9 |
0.15 |
|
LY0023-0014 |
LN15010 |
10.1 |
2.10 |
2.9 |
0.15 |
|
LY0023-0015 |
LN15012 |
12.3 |
2.10 |
2.9 |
0.15 |
|
LY0023-0016 |
LN15018 |
18.3 |
2.10 |
2.9 |
0.15 |
|
LY0023-0017 |
LN25008 |
8.1 |
2.60 |
3.5 |
0.15 |
|
LY0023-0018 |
LN25010 |
10.1 |
2.60 |
3.5 |
0.15 |
|
LY0023-0019 |
LN25012 |
12.3 |
2.60 |
3.5 |
0.15 |
|
LY0023-0020 |
LN25018 |
18.3 |
3.20 |
3.5 |
0.15 |
|
LY0023-0021 |
LN40010 |
10.1 |
3.20 |
4.0 |
0.20 |
|
LY0023-0022 |
LN40012 |
12.3 |
3.20 |
4.0 |
0.20 |
|
LY0023-0023 |
LN40018 |
18.3 |
3.20 |
4.0 |
0.20 |
|
LY0023-0024 |
LN60012 |
12.3 |
3.90 |
4.8 |
0.20 |
|
LY0023-0025 |
LN60018 |
18.3 |
3.90 |
4.8 |
0.20 |
|
LY0023-0026 |
LN100012 |
12.3 |
4.90 |
6.1 |
0.20 |
|
LY0023-0027 |
LN100015 |
15.3 |
4.90 |
6.1 |
0.20 |
|
LY0023-0028 |
LN100018 |
18.3 |
4.90 |
6.1 |
0.20 |
|
LY0023-0029 |
LN160012 |
12.3 |
6.20 |
7.5 |
0.20 |
|
LY0023-0030 |
LN160015 |
15.3 |
6.20 |
7.5 |
0.20 |
|
LY0023-0031 |
LN160018 |
18.3 |
6.20 |
7.5 |
0.20 |
|
LY0023-0032 |
LN250016 |
16.3 |
7.70 |
9.5 |
0.20 |
|
LY0023-0033 |
LN250018 |
18.3 |
7.70 |
9.5 |
0.20 |
|
LY0023-0034 |
LN250022 |
22.5 |
7.70 |
9.5 |
0.20 |
|
LY0023-0035 |
LN350016 |
16.3 |
8.70 |
11.0 |
0.20 |
|
LY0023-0036 |
LN350018 |
18.3 |
8.70 |
11.0 |
0.20 |
|
LY0023-0037 |
LN350025 |
25.5 |
8.70 |
11.0 |
0.20 |
|
LY0023-0038 |
LN500020 |
20.5 |
10.90 |
13.5 |
0.20 |
|
LY0023-0039 |
LN500022 |
22.5 |
10.90 |
13.5 |
0.20 |
|
LY0023-0040 |
LN500025 |
25.5 |
10.90 |
13.5 |
0.20 |
|
LY0023-0041 |
LN700025 |
25.5 |
13.30 |
15.0 |
0.20 |
|
LY0023-0042 |
LN900025 |
25.8 |
13.30 |
18.0 |
0.20 |
Taixing Longyi Terminals Co., Ltd is joint capital enterprise, was found in 1999. The company enjoys superior geographical location, which is only 1 km away from north exit in taixing of Ningtong High-way (the connection with Beijing-Shanghai Highway), separating with the most dynamic regions of Suzhou, Wuxi and Changzhou in Yangtze River by the river.
The company always manufacture and supply many types of copper tubes, copper plates, which is specialized in various standards of copper terminals, insulated and non-insluated terminals, LT(European style) terminals etc, with more than 4000 of specifications and an annual output of several billions. the output of copper tube terminal ranks NO 1 in China. the products are widely used in such industries as electric industry, control cabinet, household appliance, wiring harness manufacture industry etc. In 2009, company invest tens of millions on advanced and professional copper raw material production equipments for copper smelting and processing. we now make the material by ourselves for copper tube, copper sheet, copper bar etc, which both meet the needs of matching supply from customers and let our company is more competitive on delivery, quality, price etc.
We are strong in technical strength, advanced in production equipment, and scientific in management structure; all the products mould are designed and maken by ourselves. our company had passed the ISO9001-2000, all the products are in compliance with RoHS, REACH and CE. A part of consignment products(E182951, E255748) and OEM products (E319294)are in compliance with UL. over 60% of our products are exported to Spain, England, Holland, America, South-east Asia, Taiwan etc. we are supporting products to match with many famous domestic companies, such as Toshiba Electrical Transformer, Haier, Zhongxing Telecommunications, Bombardier, Siemens etc.
LongYi always follow the operating principle of "people oriented, tech on base, quality first and service supreme " and the quality policy of "constant improvement, high-class product, perfect service" we welcome guests and friends from home and abroad for instruction and cooperation, to create a bright future mutually.
