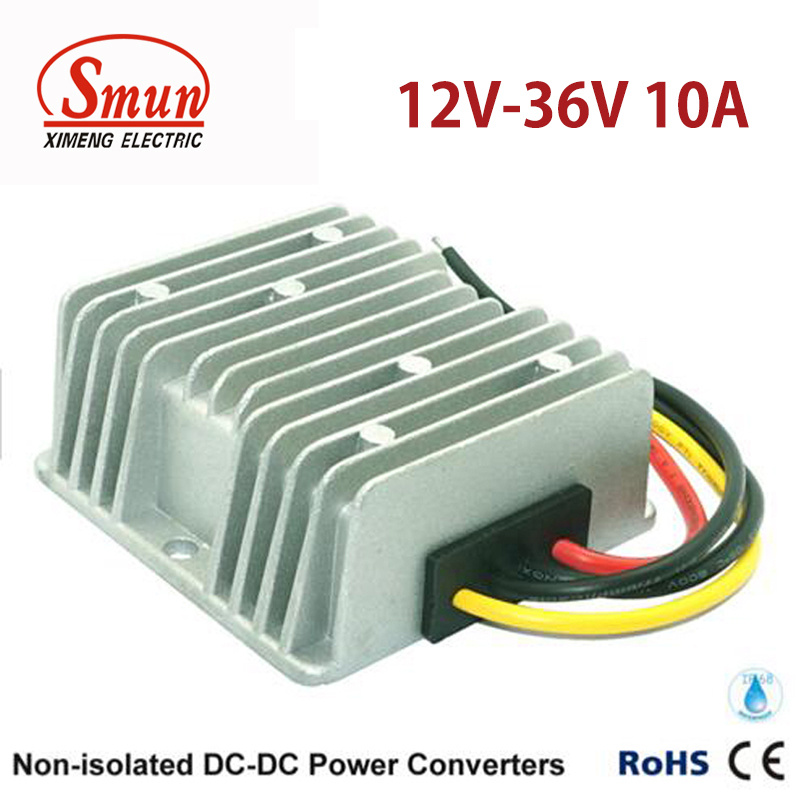

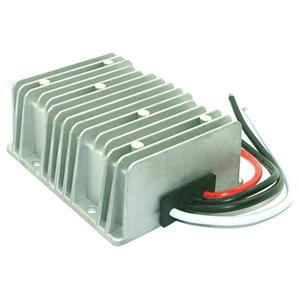

Non-Isolated Waterproof 12VDC to 36VDC 10A 360W Converter for Car

Non-Isolated Waterproof 12VDC to 36VDC 10A 360W Converter for Car
Price: US $ 23-33/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-12S3610
Rated Power: 360W
Input Voltage Range: 10-25V DC
Output Voltage: 36VDC
Output Current: 10A
Size: 100*80*39mm
Waterproof IP: IP68
Efficiency: up to 96%
Weight: 500g
Working Temperature: -40°c ~ +80°c
Protections: Over-Load, Over-Current, Over-Temp, Over-Voltage
Output Type: Single
Warranty: 1 Year
Output Power: 301 - 400W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 12VDC
Brand: Smun

Product Description

DC12V to DC36V 10A Power Converters 360W
Features

1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-25Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade DC12V to DC36V step-up converter, efficiency up to 96%
6. Certificates: CE
7. Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-voltage, Over-temperature and Over-load
Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. 1 year warranty, lifetime up to 100,000 hours.
Specifications
ModelSDS-12S3610
Input rated voltage12V DC
Input voltage range10-25V DC
Efficiency97% (half load) ; 96% (full load)
Output voltage36V DC
Output current10 Amps
Output rated power360 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 180mV
No-load current< 30mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP 68
ProtectionsOver-load, Over-current, Over-temperature, Over-voltage
Machine size100*80*39mm
Package size126*91*46mm
N. Weight470g
W. Weight500g
Cooling wayFree air convection
CertificationsCE
OtherWhite box packing
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
