| Prod Model: |
GYFTY-FS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
G652D |
| Fiber: |
Single Mode |
| Fiber Count: |
2-288 Cores |
| Fiber Material: |
Doped Silica |
| Loose Tube: |
PBT |
| Central Strength Member: |
FRP/Non-Metallic |
| Armored: |
Glass Yarn |
| Sheath: |
HDPE/Lszh Sheath/Flame Retardant Sheath |
| Operating Temperature: |
-40 ~ +60 C |
| Certificate: |
ISO9001 TCL RoHS |
| Type: |
Single-mode Fiber |
| Application: |
Communication |
| Certification: |
CCC |
| Brand: |
Efon |
| Core: |
2-288 Cores |
| Sheath Material: |
HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden |
| Connection Structure: |
Other |
Product Description
Product Description

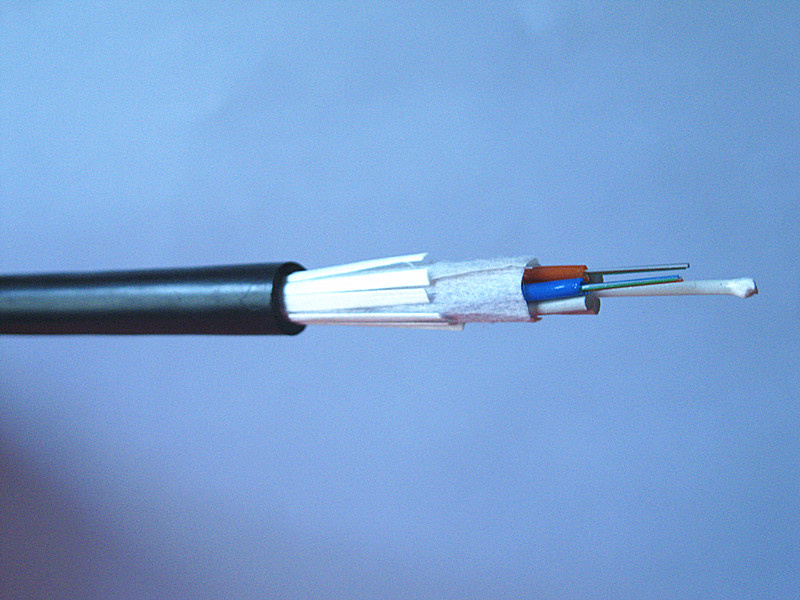

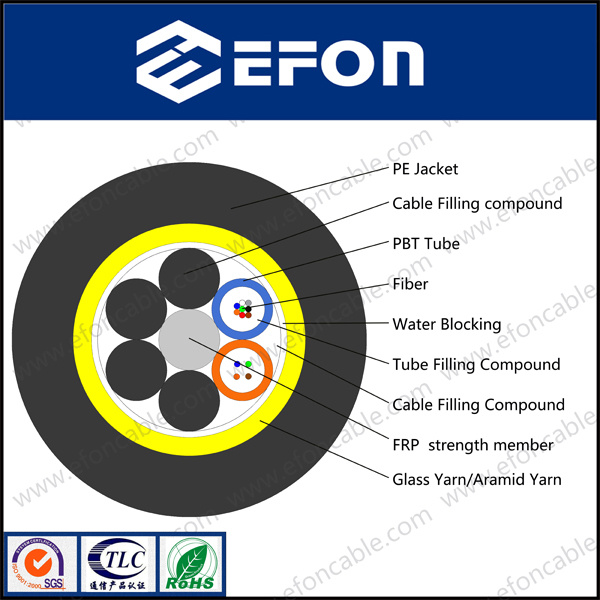

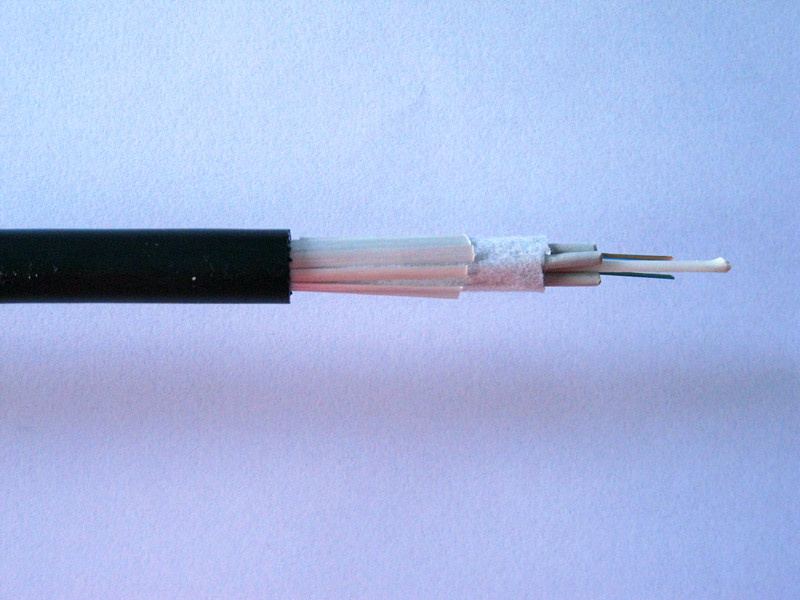

GYFTY gel filled cable is an outdoor communication optical cable of non-metallic strength member of the loose tube jelly-filled structure, with polyethylene sheath. The loose tubes are made of high modulus plastics (PBT) and filled with a water resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with cable filling compound. Polyethylene (PE) is extruded as outer sheath.
Features
- High quality optical fiber provides good transmission performance
- Accurate fiber excess length control ensures excellent mechanical and temperature performance
- Special filling gel filled loose tubes provide perfect optical fiber protection
- All section water blocking provide reliable performance of moisture-proof and water block
- High Young's modulus fiber reinforced plastic (FRP) as central strength member gives high tensile strength
- All dielectric structure, light weight, easy installation, good electromagnetic resistance suitable for operating in electrical system or frequently lighting areas
- Strict craft and raw material control enable lifespan over 30 years
Performance
Applications: Suitable for long-distance communication and indoor communication
Way of laying: overhead, pipeline
Operating temperature: -40 ~ + 70 °C
Bend radius: static 10x cable diameter
Dynamic 20x cable diameter
2.Fujikura G.652D Fiber Datasheet
Description
G.652D SM fiber is applied to range of wavelength 1310nm, 1400nm and 1550nm, which exceeds the ITU-T Recommendation G.652 and IEC60793-2-50 Type B1.3 Optical fiber specification.
Characteristics.
- G.652D SM fiber can transmit CATV information, data information of 10 GB/s and large capacity radiation information;
- G.652D SM fiber has long distance transmission;
- G.652D SM fiber can be used in new DWDM and CWDM;
- G.652D SM fiber can use in equipment of wavelength 1310nm and 1550nm
3.DateSheet
Fiber
|
|
8 |
12 |
24 |
48 |
MAX LOSS |
1310nm |
dB/km |
0.35 |
1550nm |
0.22 |
Tensile Strength |
Long |
N |
1200 |
Short |
3000 |
compressive strength |
Long |
N/100mm |
1100 |
Short |
2200 |
Mnimum bend radius |
mm |
Longtime 12.5D |
Shorttime 25D |
-50 °C +70 °C |
fiber excess length |
- |
0.5-- 0.8 ‰ |
Technical Specifications
| Item | Unit | Index |
| G.652D SM fiber | G.652B SM fiber |
| Optic characteristic |
Attenuation | 1310nm | dB/km | ≤0.35 | ≤0.35 |
| 1383nm | dB/km | ≤0.35 | _ |
| 1550nm | dB/km | ≤0.22 | ≤0.22 |
Dispersion | 1288~1339nm | ps/nm | ≤3.5 | ≤3.5 |
| 1271~1360nm | ps/nm | ≤5.3 | ≤5.3 |
| 1550nm | ps/nm | ≤18 | ≤18 |
| PMD | Individual fiber | ps/km ½ | ≤0.2 | ≤0.2 |
| Design link value | ps/km ½ | ≤0.08 | ≤0.08 |
| Mode field diameter | μm | 9.2±0.4 | 9.2±0.4 |
| Cut-off wavelength | nm | 1550~1330 | 1550~1330 |
| Zero dispersion wavelength | nm | 1302~1322 | 1302~1322 |
| Zero dispersion slope | ps/ nm 2 | ≤0.09 | ≤0.09 |
| Geometry characteristic |
| Cladding diameter | 125±0.7 | 125±0.7 | 125±0.7 |
| Core/cladding concentricity | ≤ 0.5 | ≤0.5 | ≤0.5 |
| Cladding non-circularity | ≤ 1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | 245±0.5 | 245 ± 5 | 245 ± 5 |
| Coating/cladding concentricity error | ≤ 12 | ≤12 | ≤12
|
