Non-Metallic GYFTY 12 Core Optical Fiber Cable

Name: Non-Metallic GYFTY 12 Core Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 753066215
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 10/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Central Stranding Member:	Steel Wire or FRP
Installation Style:	Aerial
Waterblocking Material:	Water Blocking Tape or Filling Compound
Brand Name Of Fiber:	Corning ,Yofc,Draka,Fujikura or as Your Requiermt
Second Armour Material:	Corrugated Aluminium Tape
Named:	Fiber Optic Cable
Fiber:	2-288core Fiber Optic Cable
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiber Optic Cable
Sheath Material:	LSZH

Product Description

Optical Fiber Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
2-36	10.4	90	10 times O.D.	20 times O.D.	1500	600	1000	300
38-60	10.2	110
62-72	11.7	115
74-96	13.4	150
98-120	15.0	190
122-144	16.6	230
146-216	16.9	240
218-240	19.3	305
242-288	21.5	375

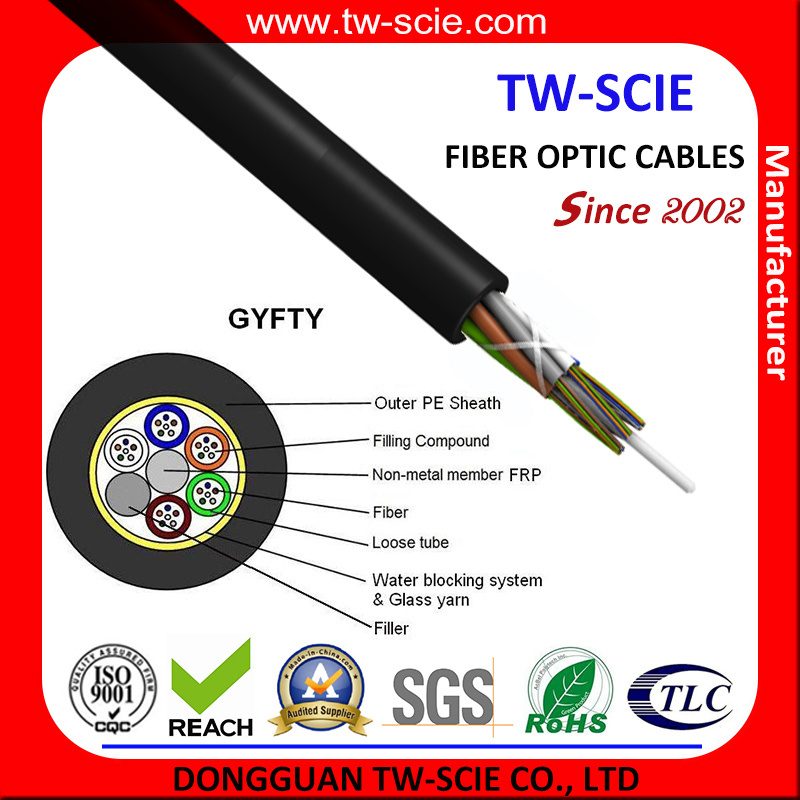

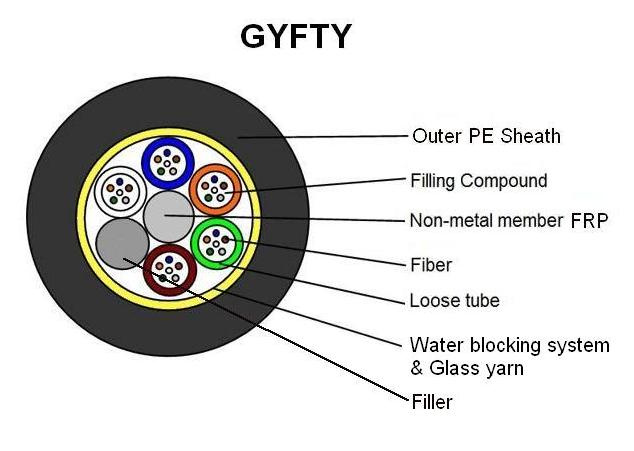

Non-Metallic 12 Core Optical Fiber Cable (GYFTY-Fs)
Product Description
Recommended laying methods

Aeria
Recommended laying methods
Non-metallic strengthen member
Reinforced with gass or aramid yarn
PE outer sheath

Recommended laying methods
Non-metalic structure providing excelent anti-eectromagnetism, Anti-thunder and anti-static performances

Appicable fieds
Long-distance teecom, LAN in high -votage area or access to teecom network
Especialy for power transmission system. Much thunder areas and higheectromagnetic interference
