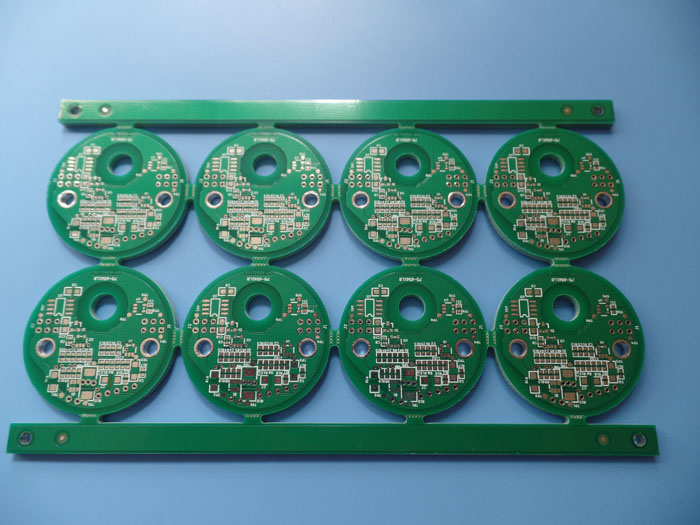

Normal PCB 4 Layer 1 Oz Copper Board with HASL
| Price: |
US $ 1.21/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
BIC1013R3.3 |
| Surface Finish: |
HASL Lead Free |
| Copper Thick: |
1 Oz |
| Solder Mask Color: |
Green |
| Minimum/Maximum Holes: |
0.4/6.3mm |
| Legend Color: |
White |
| Board Thick: |
1.6mm |
| Minimum Trace and Space: |
10 Mil/5.9 Mil |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Bicheng 4 Layer PCB Multilayer PCB FR-4 Epoxy resin Tg130 1.6mm Thick HAL Applied In Security Electronics
Commodity Introduction

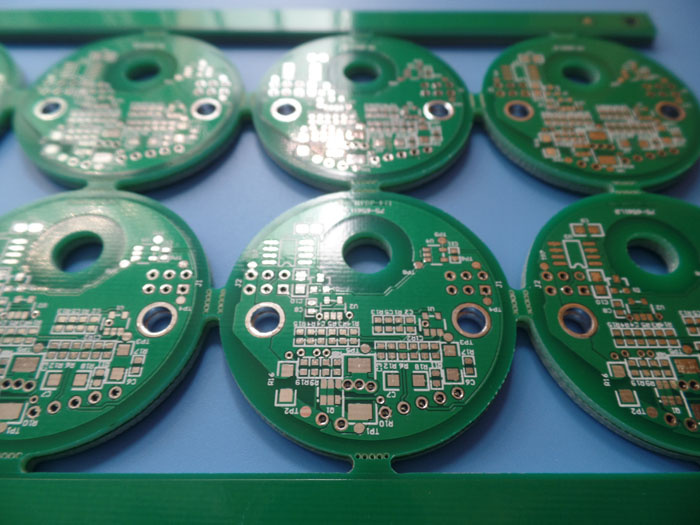

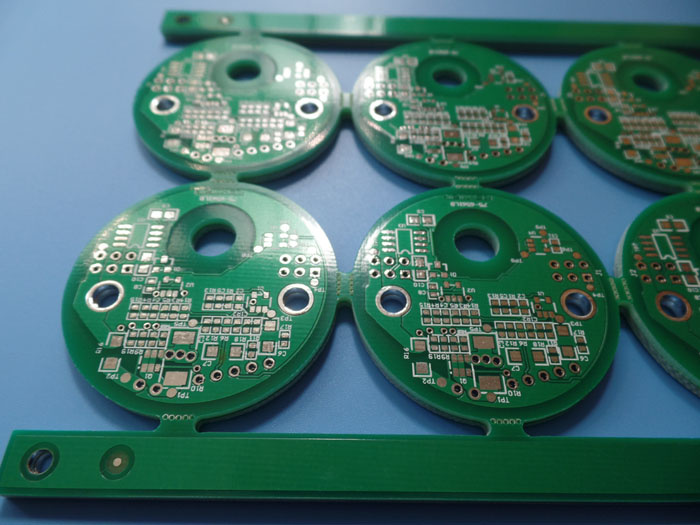

This is a type of FR-4 PCB for the application of Security Electronics It's a 4 layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 170 x 72mm=8PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10mil/5.9mil |
| Minimum / Maximum Holes: | 0.4/6.3mm |
| Number of Different Holes: | 11 |
| Number of Drill Holes: | 3512 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135, CTI 175V-249V, Shengyi Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Security electronics,
Radar Detector
Bluetooth Receiver
Wlan
Codec
Intercom |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
HASL
Hot air solder leveling is for short HASL, which is a common type of surface finish used on printed circuit boards (PCBs). We dipped the PCBs (with exposed copper surfaces) into a bath of molten solder, then remove the excess solder on PCB surface and in the holes by strong hot air(which
we call it HASL machine) to get a glossy layer of coating.
One is alloy of tin and lead. The temperature of smelting furnace for Tin/Led is about 240ºC. Anot
-her one is pure tin, because lead is harmful to human body, EU has forbidden using tin/lead. So
the popular is pure tin or HASL Lead free. The temperature of smelting furnace for pure tin is hig
-hly at 300ºC, and plus the operating environment, high temperature and high etching are great
harm on PCB itself. Due to its hot air generated, HASL has low planarity. It makes this surface
finish unsuitable for use with fine pitch components. It has hidden danger of board warp or twist
under high thermal stress. To avoid this disadvantages, high Tg material and PP are took into
consideration for some PCB user. But it also has excellent wetting during component soldering
and it can avoid copper corrosion. So it is also mostly used in single sided PCB, Double sided
PCB and some multilayer PCB.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
