| Prod Model: |
NSQ series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Window Type |
| Color: |
Red |
| Window Size: |
30mm, 40mm, 55mm, 85mm,125mm |
| Approve: |
CE |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

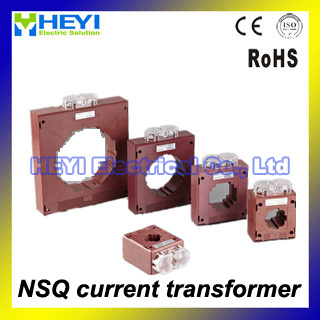

NSQ current transformer is made according to standard BS7626 and IEC44-1.
| NSQ Series: |
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient: | 30A-3000A
5A, 1A
BS7626, IEC44-1
0.66KV
50-60Hz
2.5VA, 15VA
0.5, 1.0, 3.0
Ith=60×Ih
FS<5 |
Technical data:
Model |
Primary/
secondary |
Busbar
Hole
Dimension |
Rated
Burden
(VA) |
class |
Rated
Voltage |
Rated
Frequency |
NSQ-30 |
30/5A-300/5A |
30×10mm |
2.5-5 |
0.5/1.0 |
0.72 |
50/60Hz |
NSQ-35 |
50/5A-400/5A |
35×10mm |
5 |
0.5/1.0 |
0.72 |
50/60Hz |
NSQ-40 |
100/5A-600/5A |
40×10mm |
10 |
0.5/1.0 |
0.72 |
50/60Hz |
NSQ-60 |
600/5A-1600/5A |
60×10mm |
15 |
0.5/1.0 |
0.72 |
50/60Hz |
NSQ-100 |
800/5A-3000/5A |
100×10mm |
15 |
0.5/1.0 |
0.72 |
50/60Hz
|
How to Order?1.
Please let us know what kind of model, like Mes-40 100/5A.2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Customerservice:| Basic services | 1) Manufacturing & Offering high quality split core current transformer ,low & high voltage current transformer ,hall current sensor,digital smart meter and all related equipments. |
| 2) Purchasing all the products and accessories in electrical industry for customers requirements. |
| 3) OEM service |
| Characteristic services | 1) Service of product customization |
| 2) Research and development of new products |
| 3) To provide technical support to solve various technical problems of products. |
| 4) Welcomed to join our HEYI Team.As our agent in accordance with its local market conditions design solutions, providing products and technical support, real-time tracking and other one-stop service. |
Contact us:
Send your Inquiry Details in the Below, Click "Send" Now!
YOUR BENEFITS IS OUR BUSINESS!!!
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
