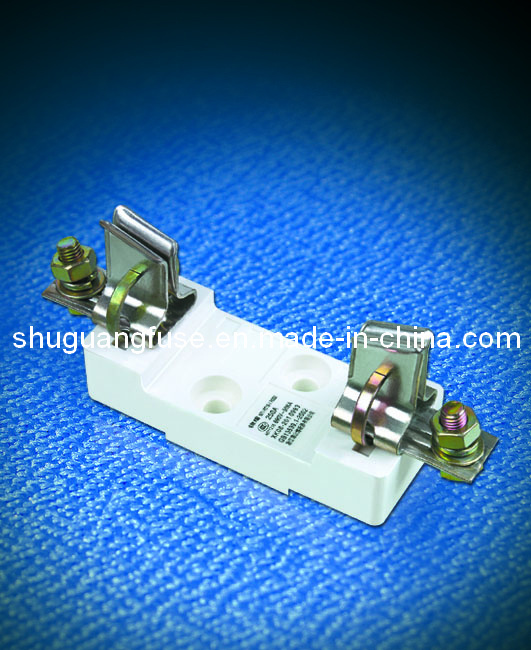

Nt Fuse Holder (NT)

Name: Nt Fuse Holder (NT)
Brand: all-electronics-online.com
SKU: 711124335
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 4.5-18.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	12/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Ceramic or Resin
Color:	White
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Overcurrent Protection
Certification:	CE
Type:	Fuse
Breaking Capacity:	Low Voltage Circuit Breakers

Product Description

Specifications

1. Body material: Ceramics or Resin
Knife material: Brass or red copper
2. Widely used in power-load and short -circuit protection of electrical installations
3. Conforms to IEC and GB standards with all of the ratings at the world advanced leve
4. Technical Date for reference

	Type	Rated Voltage(V)	Max Current(A)	Grading Current	PCS/CTN	G.W(KG)	N.W(KG)	MEAS(CM)
FUSE LINK	NT00C	500-660V	100A	gG / gL / aR/aM	135	25	24	4127.519.5
	NT00	500-660V	160A	gG / gL / aR/aM	135	25	24	4127.519.5
	NT0	500-660V	160A	gG / gL / aR/aM	72	19	18	27.526.526.5
	NT1	500-660V	250A	gG / gL / aR/aM	48	23	22	43* 22.8*27.5
	NT2	500-660V	400A	gG / gL / aR/aM	30	22	21	323223.7
	NT3	500-660V	630A	gG / gL / aR/aM	30	27	26	36.53228
	NT4	500-660V	1250A	gG / gL / aR/aM
FUSE HAND
FUSE BASE	Sist101(00C)	500-660V	160A	gG / gL / aR/aM	120	25	24	4926.528.5
	Sist101 (00)	500-660V	160A	gG / gL / aR/aM	120	25	24	4926.528.5
	Sist160(0)	500-660V	160A	gG / gL / aR/aM	54	19.5	18.5	35.529.525
	Sist201(1)	500-660V	250A	gG / gL / aR/aM	30	19	18	4131.728
	Sist401(2)	500-660V	400A	gG / gL / aR/aM	24	22.5	21.5	46.52732
	Sist601(3)	500-660V	630A	gG / gL / aR/aM	15	17	16	34.526.533.5
	Sist1001(4)	500-660V	1250A	gG / gL / aR/aM

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
