NT(NH) RT16 Low Voltage Fuses Link

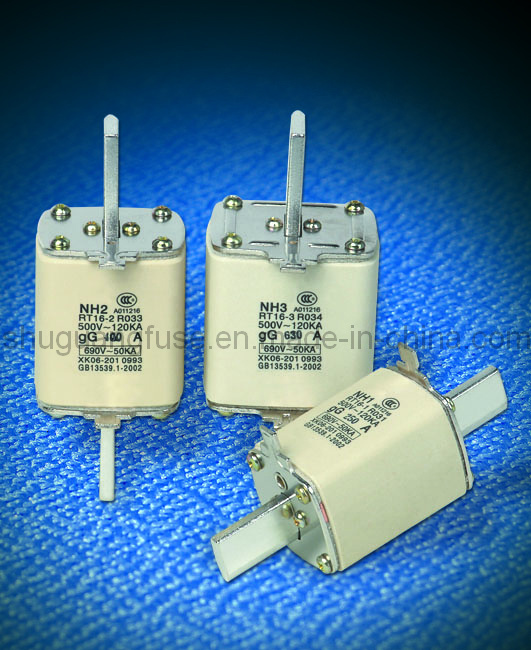

Name: NT(NH) RT16 Low Voltage Fuses Link
Brand: all-electronics-online.com
SKU: 711291635
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	120/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT(NH), RT16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Ceramic
Color:	White
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-extinguishing Medium:	Quartz Sand
Function:	Overcurrent Protection
Certification:	CE
Type:	Fuse
Breaking Capacity:	Low Voltage Circuit Breakers

Product Description

Specifications
NH(NT, RT16) HRC Fuse is light in weight, small in size, low in power, loss and high in breaking capacity.
Standard IEC269 VDE0636

NT Low Voltage Fuse and Base

Application
NH(NT, RT16 low voltage H. R. C. Fuse is light in weight, small in size, low in power, loss and high in breaking capacity. This product has been widely used in overload and short circuit protection of electric installations.
This product conforms to IEC 269 and VDE0636 standards with all of the rating at the world advanced level.

Type	Fuse Link				Fuse Base
Type	Rated Current (A)	Rated Voltage (V)	Rated Power Loss(W)	Weight (Kg)	Type	Rated Current (A)	Weight (Kg)
RT16-000/NT00C NH00C	2	500,690	0.41	0.15	Sist101	160	0.2
	4		0.62
	6		0.81
	10		1.08
	16		1.60
	20		1.81
	25		2.31
	32		3.07
	36		3.17
	40		4.05
	50		4.25
	63		4.70
	80		5.7
	100		7
RT16-00/NT0 NH0	10	500,690	1.42	0.2	Sist101	160	0.32
	16		2.45
	20		2.36
	25		2.7
	32		3.74
	35		4.3
	40		4.7
	50		5.5
	63		6.9
	80		7.6
	100		8.9
	125	500	10.1
	160	500	15.2
RT16-1/NT1 NH1	80	500,690	6.2	0.36	Sist201	250	0.8
	100		7.5
	125		10.2
	160		13
	200		15.2
	224	500	16.8
	250	500	18.3
RT16-2/NT2 NH2	125	500,690	6.9	0.65	Sist401	400	1.2
	160		11.5
	200		15
	224		16.6
	250		18.4
	300		21
	315		19.2
	355		24.5
	400		26
	415		21.7
RT16-3/NT3 NH3	355	500,690	22.7	0.85	Sist601	630	1.5
	400		26.8
	425		28.9
	500	500	32
	630	500	40.3
RT16-4/NT4 NH4	800	380	62	1.95	Sist1001	1000	3.45
RT16-4/NT4 NH4	1000	380	75	1.95	Sist1001	1000	3.45
