Nyby 0.6/1kv Low Voltage PVC Insulated Power Armoured Cables
| Price: |
US $ 1-99/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
NYBY, NYRY |
| Rated Voltage: |
0.6/1 Kv |
| Number Of Core: |
1-5 |
| Refer Standard: |
IEC 60502-1 |
| Type Of Armor: |
Swa or Sta |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Wire Core Material: |
Copper |
| Model: |
Nyby, Nyry |
| Brand: |
Jl |
Product Description
Low Voltage PVC Insulated Power Armoured Cables Application:IEC 60502-1 cables are used for electricity supply in low voltage installation system, IEC 60502-1 cables are
suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations,
local energy distributions, industrial plants, where there is no risk of mechanical damage.Low Voltage PVC Insulated Power Armoured Cables Colour Code:| 1 Core : | Red or Black |
| 2 Cores : | Red, Black |
| 3 Cores : | Red, Yellow, Blue |
| 4 Cores : | Red, Yellow, Blue, Black |
| 5 Cores : | Red, Yellow, Blue, Black, Green |
| Above 5 Cores: | Black Cores with White numerals |
| Colour Code (2) : |
| 1 Core : | Brown or Blue |
| 2 Cores : | Brown or Blue |
| 3 Cores : | Brown, Black, Grey |
| 4 Cores : | Blue, Brown, Black, Grey |
| 5 Cores : | Green/Yellow, Blue, Brown, Black, Grey |
| Above 5 Cores: | Black Cores with White numerals |

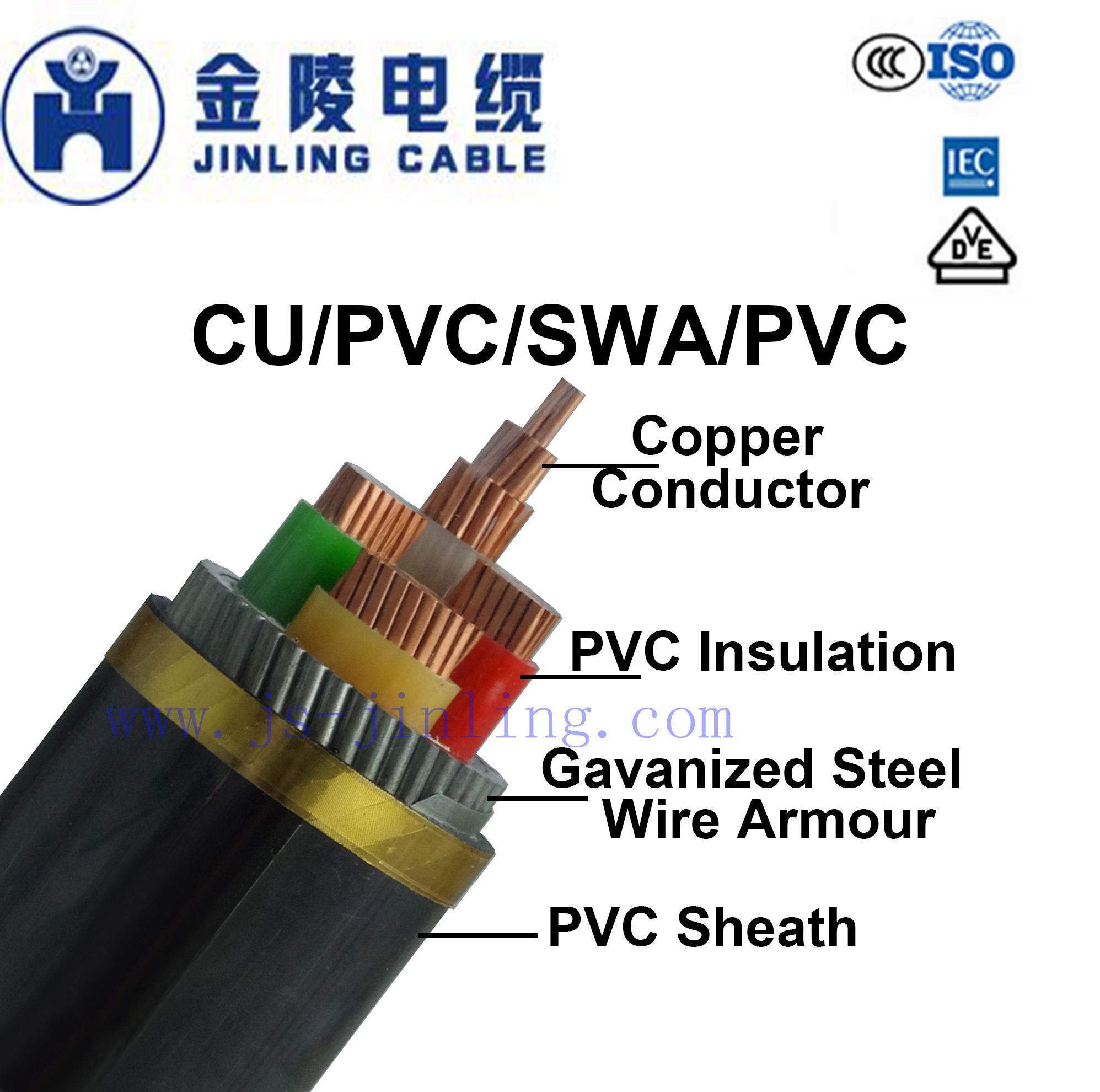

Low Voltage PVC Insulated Power Armoured Cables Construction:
Copper or Aluminum Conductor , PVC Insulation, Aluminum/galvanized steel wires or Double Steel /Aluminum Tape Armour, PVC SheathedLow Voltage PVC Insulated Power Armoured Cables Technical Data:Conductor: Copper or Aluminium conductor, round standed or Shaped,solid round conductor(Class1)or stranded Conductor(Class2) ,
Test Voltage: 4000V
Working Temperature:-5-70 º C
Short-circuit max. Conductor temperature:160°C

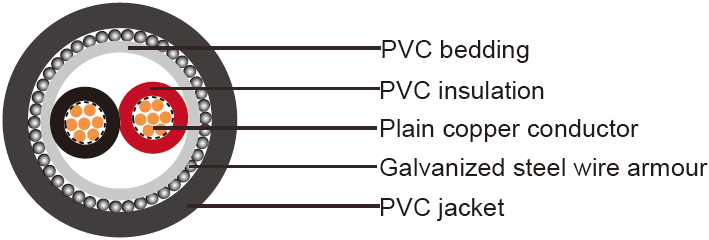

Insulation resistance: 20 MΩ x kmParameter:Two cores(Galvanized steel wire armoured)
Nominal
Cross Section | Diameter of
Conductor
(Approx.) | Nominal
Insulation
thickness | Nominal Inner
Covering
thickness | Nominal
Steel Wire
dia. | Nominal
Sheath
thickness | Overall
Diameter
(Approx.) |
| mm² | mm | mm | mm | mm | mm | mm |
| 2x2.5 | 1.8 | 0.8 | 1 | 0.8 | 1.8 | 14 |
| 2x4 | 2.3 | 1 | 1 | 1.25 | 1.8 | 16.7 |
| 2x6 | 2.8 | 1 | 1 | 1.25 | 1.8 | 17.7 |
| 2x10 | 3.6 | 1 | 1 | 1.25 | 1.8 | 19.3 |
| 2x16 | 4.5 | 1 | 1 | 1.25 | 1.8 | 21.1 |
| 2x25 | 5.6 | 1.2 | 1 | 1.6 | 1.8 | 24.8 |
| 2x35 | 6.7 | 1.2 | 1 | 1.6 | 1.8 | 27 |
| 2x50 | 8 | 1.4 | 1 | 1.6 | 1.9 | 30.7 |
| 2x70 | 9.4 | 1.4 | 1 | 2 | 2.1 | 34.5 |
| 2x95 | 11 | 1.6 | 1.2 | 2 | 2.2 | 39.2 |
| 2x120 | 12.4 | 1.6 | 1.2 | 2 | 2.3 | 42.2 |
| 2x150 | 13.8 | 1.8 | 1.2 | 2.5 | 2.5 | 47.2 |
| 2x185 | 15.3 | 2 | 1.4 | 2.5 | 2.6 | 51.6 |
| 2x240 | 17.5 | 2.2 | 1.4 | 2.5 | 2.8 | 57.2 |
| 2x300 | 19.5 | 2.4 | 1.6 | 2.5 | 3 | 62.8 |
| 2x400 | 22.6 | 2.6 | 1.6 | 2.5 | 3.2 | 70.3 |

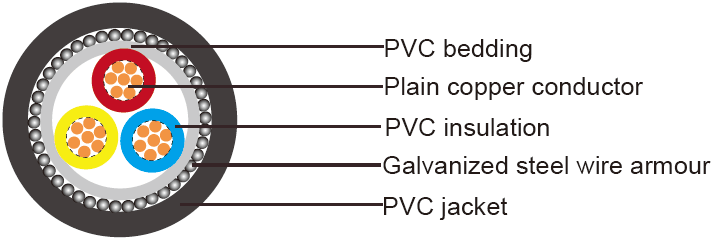

Three cores(Galvanized steel wire armoured)
Nominal
Cross Section | Diameter of
Conductor
(Approx.) | Nominal
Insulation
thickness | Nominal Inner
Covering
thickness | Nominal
Steel Wire
dia. | Nominal
Sheath
thickness | Overall
Diameter
(Approx.) | | |
| mm² | mm | mm | mm | mm | mm | mm | | |
| 3x2.5 | 1.8 | 0.8 | 1 | 0.8 | 1.8 | 14.5 | | |
| 3x4 | 2.3 | 1 | 1 | 1.25 | 1.8 | 17.4 | | |
| 3x6 | 2.8 | 1 | 1 | 1.25 | 1.8 | 18.4 | | |
| 3x10 | 3.6 | 1 | 1 | 1.25 | 1.8 | 20.2 | | |
| 3x16 | 4.5 | 1 | 1 | 1.6 | 1.8 | 22.8 | | |
| 3x25 | 5.6 | 1.2 | 1 | 1.6 | 1.9 | 26 | | |
| 3x35 | 6.7 | 1.2 | 1 | 1.6 | 1.9 | 28.5 | | |
| 3x50 | 8 | 1.4 | 1 | 2 | 2 | 33.3 | | |
| 3x70 | 9.4 | 1.4 | 1.2 | 2 | 2.1 | 37 | | |
| 3x95 | 11 | 1.6 | 1.2 | 2 | 2.3 | 41.6 | | |
| 3x120 | 12.4 | 1.6 | 1.2 | 2.5 | 2.4 | 45.9 | | |
| 3x150 | 13.8 | 1.8 | 1.4 | 2.5 | 2.6 | 50.4 | | |
| 3x185 | 15.3 | 2 | 1.4 | 2.5 | 2.7 | 54.8 | | |
| 3x240 | 17.5 | 2.2 | 1.5 | 2.5 | 2.9 | 61.2 | | |
| 3x300 | 19.5 | 2.4 | 1.6 | 2.5 | 3.1 | 66.8 | | |
| 3x400 | 22.6 | 2.8 | 1.6 | 3.15 | 3.4 | 76.7 | | |
| 3x500 | 25.2 | 2.8 | 1.8 | 3.15 | 3.7 | 83.6 | | |
| | | | | | | | | |
| Three cores+1(Galvanized steel wire armoured) | | |
Nominal
Cross Section | Diameter of
Conductor
(Approx.) | Nominal
Insulation
thickness | Nominal Inner
Covering
thickness | Nominal
Steel Wire
dia. | Nominal
Sheath
thickness | Overall
Diameter
(Approx.) |
| mm² | mm | mm | mm | mm | mm | mm | mm | mm |
| 3x10 +6 | 3.6 | 2.8 | 1 | 1 | 1 | 1.25 | 1.8 | 21.9 |
| 3x16 +10 | 4.5 | 3.6 | 1 | 1 | 1 | 1.6 | 1.8 | 24.2 |
| 3x25 +16 | 5.6 | 4.5 | 1.2 | 1 | 1 | 1.6 | 1.8 | 27.9 |
| 3x35 +16 | 6.7 | 4.5 | 1.2 | 1 | 1 | 1.6 | 1.9 | 30.8 |
| 3x50 +25 | 8 | 5.6 | 1.4 | 1.2 | 1 | 2 | 2 | 36.4 |
| 3x70 +35 | 9.4 | 6.7 | 1.4 | 1.2 | 1.2 | 2 | 2.1 | 40.1 |
| 3x95 +50 | 11 | 8 | 1.6 | 1.4 | 1.2 | 2.5 | 2.3 | 46.3 |
| 3x120 +70 | 12.4 | 9.4 | 1.6 | 1.4 | 1.4 | 2.5 | 2.4 | 50.3 |
| 3x150 +70 | 13.8 | 9.4 | 1.8 | 1.4 | 1.4 | 2.5 | 2.6 | 55 |
| 3x185 +95 | 15.3 | 11 | 2 | 1.6 | 1.4 | 2.5 | 2.7 | 60.3 |
| 3x240 +120 | 17.5 | 12.4 | 2.2 | 1.6 | 1.6 | 2.5 | 2.9 | 67 |

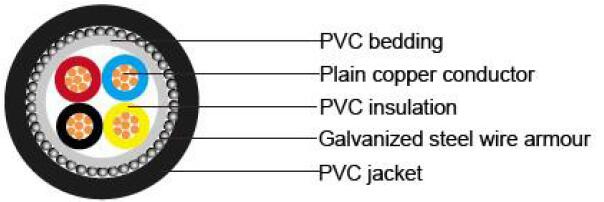

Four cores(Galvanized steel wire armoured)
Nominal
Cross Section | Diameter of
Conductor
(Approx.) | Nominal
Insulation
thickness | Nominal Inner
Covering
thickness | Nominal
Steel Wire
dia. | Nominal
Sheath
thickness | Overall
Diameter
(Approx.) |
| mm² | mm | mm | mm | mm | mm | mm |
| 4x4 | 2.3 | 1 | 1 | 1.25 | 1.8 | 18.5 |
| 4x6 | 2.8 | 1 | 1 | 1.25 | 1.8 | 19.7 |
| 4x10 | 3.6 | 1 | 1 | 1.25 | 1.8 | 22.3 |
| 4x16 | 4.5 | 1 | 1 | 1.6 | 1.8 | 24.5 |
| 4x25 | 5.6 | 1.2 | 1 | 1.6 | 1.9 | 28.2 |
| 4x35 | 6.7 | 1.2 | 1 | 1.6 | 2 | 31.1 |
| 4x50 | 8 | 1.4 | 1 | 2 | 2.1 | 36.7 |
| 4x70 | 9.4 | 1.4 | 1.2 | 2 | 2.3 | 40.4 |
| 4x95 | 11 | 1.6 | 1.2 | 2.5 | 2.5 | 46.6 |
| 4x120 | 12.4 | 1.6 | 1.4 | 2.5 | 2.6 | 50.6 |
| 4x150 | 13.8 | 1.8 | 1.4 | 2.5 | 2.7 | 55.3 |
| 4x185 | 15.3 | 2 | 1.4 | 2.5 | 2.9 | 60.6 |
| 4x240 | 17.5 | 2.2 | 1.6 | 2.5 | 3.1 | 67.3 |
| 4x300 | 19.5 | 2.4 | 1.6 | 3.15 | 3.4 | 74.9 |
| 4x400 | 22.6 | 2.6 | 1.8 | 3.15 | 3.7 | 84.4 |
| 4x500 | 25.2 | 2.8 | 2 | 3.15 | 3.9 | 92.1 |
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
