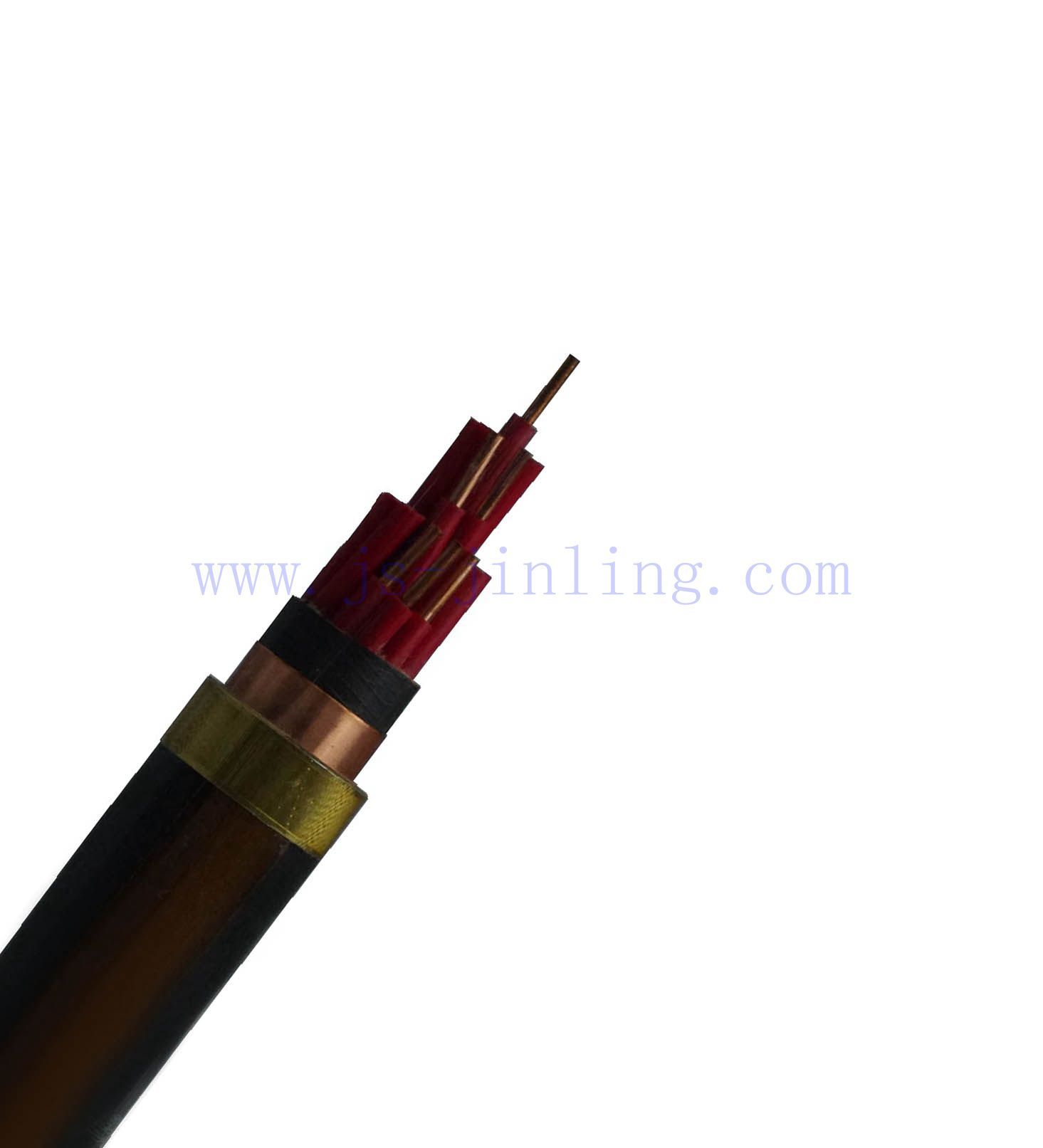

Nysy LV Screen Power Cable

Name: Nysy LV Screen Power Cable
Brand: all-electronics-online.com
SKU: 834957395
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 0.3-25/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Screen Cable
Rated Voltage:	0.6/1 Kv
Class Of Conductor:	1
Refer Standard:	IEC 60502-1
Screen:	Copper Tape
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Indoor,Tunnels,Cable Trench
Brand:	Jl

Product Description

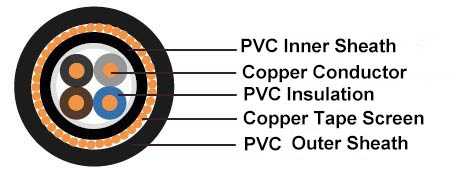

NYCY LV Screen Power Cable Consruction:
Copper Conductor, PVC Insulated, Copper Tape Screen, PVC Sheathed

NYCY LV Screen Power Cable Application

The cable used as are used in power plants, industrial and switching installations, for street lighting, domestic
power supply connections, in secondary distribution networks and other..

NYCY LV Screen Power Cable Standards

IEC 60502-1 : 2009,HD603 S1,VDE0276 part 603,

NYCY LV Screen Power Cable Technical Character:
Conductor:Solid Copper Conductor, class 1
Working voltage:600/1000V
Test Voltage: 4000V
Working Temperature:0-70º C
Bending Radiu: 12 x overall diameter
Max. Conductor temperature: 70 º C
Short-circuit max. Conductor temperature:160°C
Insulation resistance: 100 MΩ / km
Cable Parameter:

No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
No x mm2	mm	kg/km
1 x 10.0	11	280
1 x 16.0	12	440
2 x 1.5	13	205
2 x 2.5	13.5	270
2 x 4.0	15.5	360
2 x 6.0	17	435
2 x 10.0	19.5	590
2 x 16.0	20.5	820
3 x 1.5	13.5	225
3 x 2.5	14.5	290
3 x 4.0	16.5	400
3 x 6.0	17.5	510
3 x 10.0	20	850
3 x 16.0	23	1080
4 x 1.5	14.5	260
4 x 2.5	15.5	350
4 x 4.0	17	470
4 x 6.0	18.5	590
4 x 10.0	21	900
4 x 16.0	23	1250
5 x 1.5	15	330
5 x 2.5	16	400
5 x 4.0	19	560
5 x 6.0	21	710
5 x 10.0	23	1000
7 x 1.5	15	320
7 x 1.5	16	350
7 x 2.5	17.5	450
7 x 4.0	21	670
7 x 6.0	24	790
8 x 1.5	17	380
8 x 1.5	17	400
8 x 2.5	18	510
10 x 1.5	19	440
10 x 2.5	20.5	600
12 x 1.5	20	500
12 x 2.5	21	660
14 x 1.5	20.5	540
14 x 2.5	22	760
14 x 2.5	22.5	800
16 x 1.5	22	600
16 x 2.5	23	910
19 x 1.5	23	690
19 x 2.5	23.5	950
21 x 1.5	24	810
21 x 2.5	26	1100
24 x 1.5	26	860
24 x 2.5	28	1300
30 x 1.5	27	1230
30 x 2.5	30	1610
40 x 1.5	30	1590
40 x 2.5	35	2100
52 x 1.5	32	1820
52 x 2.5	38	2500
61 x 1.5	33	2000
61 x 2.5	40	2850
