| Prod Model: |
TK208 |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Application: |
Car, Truck, Fleet |
| GSM Frequencies: |
Quad-Band |
| GPS Chip: |
U-Blox 7 Chipset |
| Receiving Ways: |
55 Channels |
| Backup Battery: |
Internal |
| Warranty: |
12 Months |
| Mobile APP: |
Android and Ios |
| Antenna: |
Internal |
| OBD Connector: |
Male |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
Product Description

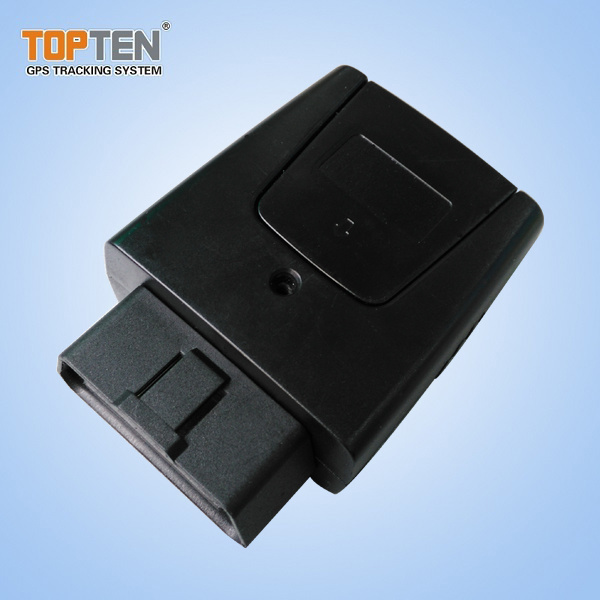

OBD Vehicle GPS Tracking Device with OBD Port Ignition on/off (TK208-ER)
TK208 OBD GPS tracker is the cost-effective solution for security & real-time tracking. It has unique features as followings:- Plug & play design with OBD connector, easy installation;
- Smart engine ON/OFF status detection;
- Support RFID & wireless immobilizer for security.
Features and functions:
- Track on SMS, Web or APP;
- GPS tracker+ car alarm functions, arm/disarm by SMS/web/phone call;
- Arm/disarm automatically by RFID tag, RFID identification;(Optional)
- Check the car's real physical address (such as city & street name.);
- Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.;
- Check the location directly by the Google map's URL;
- Smart engine ON/OFF status detection without extra connection;
- Wireless immobilizer to stop the car safely by SMS or Web (optional);
- Data logger to store 5520 waypoints.
- Odometer function
- Over-speed alarm;
- Movement alarm which can be used as an alarm;
- Engine on alarm;
- Vibration alarm;
- Power failure alarm;
- Monitor the voice;
- Voltage:10V-60VDC, suitable for all vehicles with OBD connector ;
- Trace optimization when vehicles turns a corner;
- Plug & play design, easy installation;
- Reliable design of framework with hardware watchdog.
- Power save design.
Specifications:
| Working voltage: | 10 ~60VDC |
Power Consumption:
| Standby current:8mA
Working current: 50mA;
Peak current: 800mA; |
| Inside Backup battery: | Rechargeable 3.7V 350mAh Li-ion battery |
| Size of the main unit: | 70*51*26 (mm) |
| Weight of the main unit: | 55g |
| Working temperature: | -20 ~ 85ºC |
| Humidity: | 0 ~ 95% |
| GSM frequencies: | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS chip: | U-blox 7 chipset |
| Receiving ways | 56 channels |
| Working frequencies | 1575.42Mhz C/A(GPS) |
| Receiving sensibility | -162dBm |
| Positioning accuracy | ≤10m (wide-open area) |
| Speed accuracy | ≤0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Hot start | 1 sec., average |
| Warm start | 2 sec., average |
| Cold start | 40 sec., average |

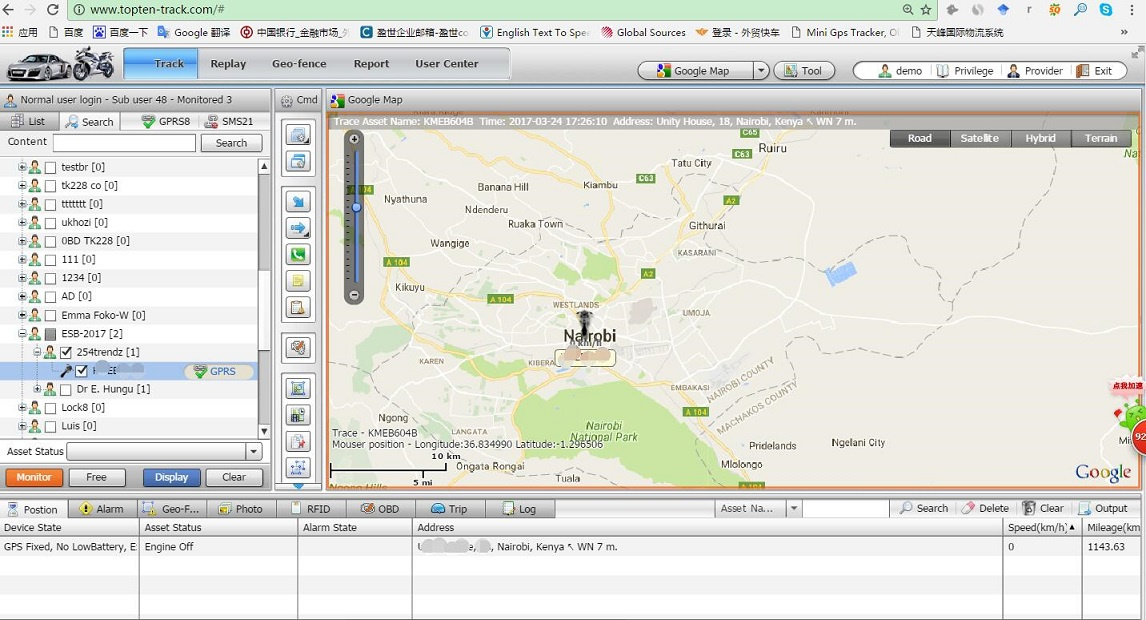

GPS Real-time Tracking platform:

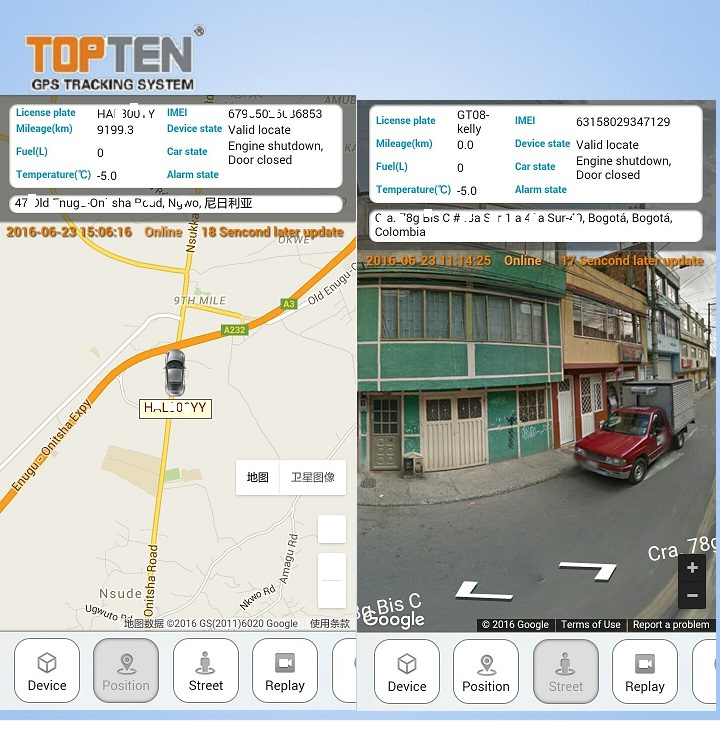

GPS Mobile App:
More products:
Delivery time:
Order <100pcs, products will be delivered in 3 working days upon receipt of the payment;
Order >100pcs, products will be delivered in 3-7 days or according to our production schedule
Warranty:
We provide 12 months warranty for all product.
In case of any defective GPS tracker, customers can send it back to us, we'll examine and fix it.
Payment:
T/T, Western Union, PayPal, Credit Card
With TOPTEN GPS tracker, you can track your vehicle/fleets 100% as follows:
Live track your vehicle.
Record history traces 24/7
Record speed and fuel level
Get alert once vehicle are tampered or driver is over speeding
Download reports including time, location, speed, direction, fuel, etc.
We have our own R&D team developing 4-5 new models each year.
Products are with CE, FCC certificate.
Technical support and after-sales service are available 24/7.
