| Prod Model: |
TK209 |
| GPS Geographic Location: |
Global |
| Quad Band: |
GSM850/900/1800/1900 |
| Network: |
GSM GPS GPRS |
| Antennae: |
Built-in Internal |
| GPS Accuracy: |
5-10m |
| Tracking Web & APP: |
Lifetime Free to Use |
| Warranty: |
1 Year |
Product Description

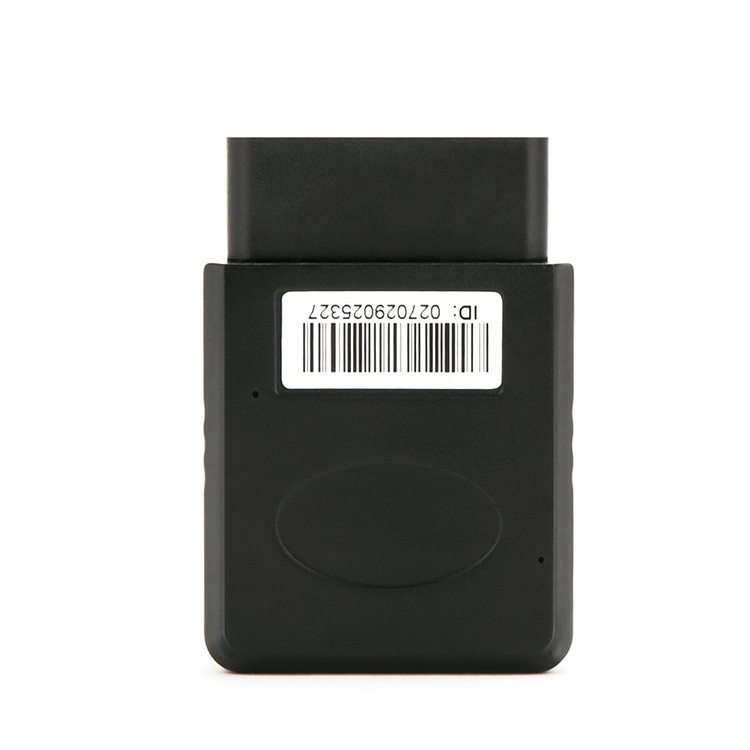

OBDII Diagnose GSM Car GPS Tracker TK209 Rastreador Locator For Cars Vehicle OBD2 Car Reader Overspeed Alarm GPS Tracking Device Features:
Quan-Band GPS/GPRS/GSM OBD diagnose Tracker
Real-time tracking
Movement and speeding alarm
Power failure alarm(Contains battery)
Geo-fence Alarm
Support power saving mode
Support call alarm
No need to install, insert can be used
Easy operation,Powered via OBD (without breaking cable)
Remote diagnose function
Remind of maintenance
Report of driving data
Alarm for security issue
trip fuel consumption statistics
Support get the total mileage of the vehicle
Specifications:
GSM:850/900/1800/1900 Quad band
GPRS: Class12, TCP/IP
Working Voltage:9-50V DC
Working current:≈22mA (12vDC)
Working current:≈12mA (24vDC)
GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s
Hot start≈2s(Open sky)
GPS Precision:10m(2D RM)
Working temperature:-20°~+70°
Working humidity:20%~80%RH
Measurement:71(L)×49(W)×24(H)mm
GPS chips: U-bolx
GSM chips: MT6261
OBD with diagnosis
This product is a professional-grade automotive OBD product has the following characteristics:
Function:
1)Get the vehicle to support the activities of data items (data flow item)
2)Get vehicle support freeze data items (freeze frame items)
3) Get the vehicle support vehicle information items (vehicle identification items)
4) Get the vehicle activity data items (90 more)
5) Get the vehicle freeze data items (including malfunction code freeze frame storage and related field data)
6) Get the vehicle identification information items (vehicles VIN number, etc.)
7) has decided to get the fault code
8) Get pending fault code
9) Clear fault information
10) hard acceleration monitoring
11) rapid deceleration monitoring (brakes)
12) Parking is not flame monitoring (alarm)
13) Battery voltage monitoring (automatic low voltage alarm)
14) trip mileage statistics
15) trip fuel consumption statistics
16) Travel time statistics
17) to get the total mileage of the vehicle
18) to obtain instantaneous fuel consumption of vehicles
19) reading device parameters (model, displacement, mileage, low-voltage threshold, parking is not flame threshold, alarm control ...)
20) set the device parameters (models, displacement, mileage, low-voltage threshold, parking is not flame threshold, alarm control ...)
21) Other extensions
Product protocol support
This product is a communication protocol for the international standard with the car,including as follows:
1) SAE_ J1850_VPW
2) SAE_J1850_PWM
3) ISO_15765_STD_500
4) ISO_15765_EXT_500
5) ISO_15765_STD_250
6) ISO_15765_EXT_250
7) ISO_9141_08_Init
8) ISO_9141_94_Init
9) ISO_14230_Slow_Init
10) ISO_14230_Fast_Init
Inteface means
OBDII J1962 connector meets standards, can be mounted directly to the vehicle OBD diagnostic seat to use.
OBD diagnostic seat vehicle signal is defined as follows:
Pin 2 - J1850 Bus+(VPW/PWM)
Pin 4 - Chassis Ground
Pin 5 - Signal Ground
Pin 6 - CAN High (CANBUS)
Pin 7 - ISO 9141-2 K Line(ISO9141-2/KWP2000)
Pin 10 - J1850 Bus-(PWM)
Pin 14 - CAN Low (CANBUS)
Pin 15 - ISO 9141-2 L Line(ISO9141-2/KWP2000)
Pin 16 - Battery Power
Communication Interface Definition
Using serial communications, serial port level is TTL / CMOS (3.3V), the pin is defined as follows:
1 red wire, power supply positive output, DC12V
2 white wire, serial data output, TxD
3 blue line, serial data input, RxD
4 black lines, power ground, GND
6 Technical parameters
Voltage DC9 ~ 16V
Current 35mA (normal) <10mA (standby)
Operating temperature -20 ° ~ +70 °
Storage temperature -40 ° ~ +85 °
