Octal High Voltage High Current Darlingtontransistor Array Electronic Components

Name: Octal High Voltage High Current Darlingtontransistor Array Electronic Components
Brand: all-electronics-online.com
SKU: 801987995
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 0.23/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

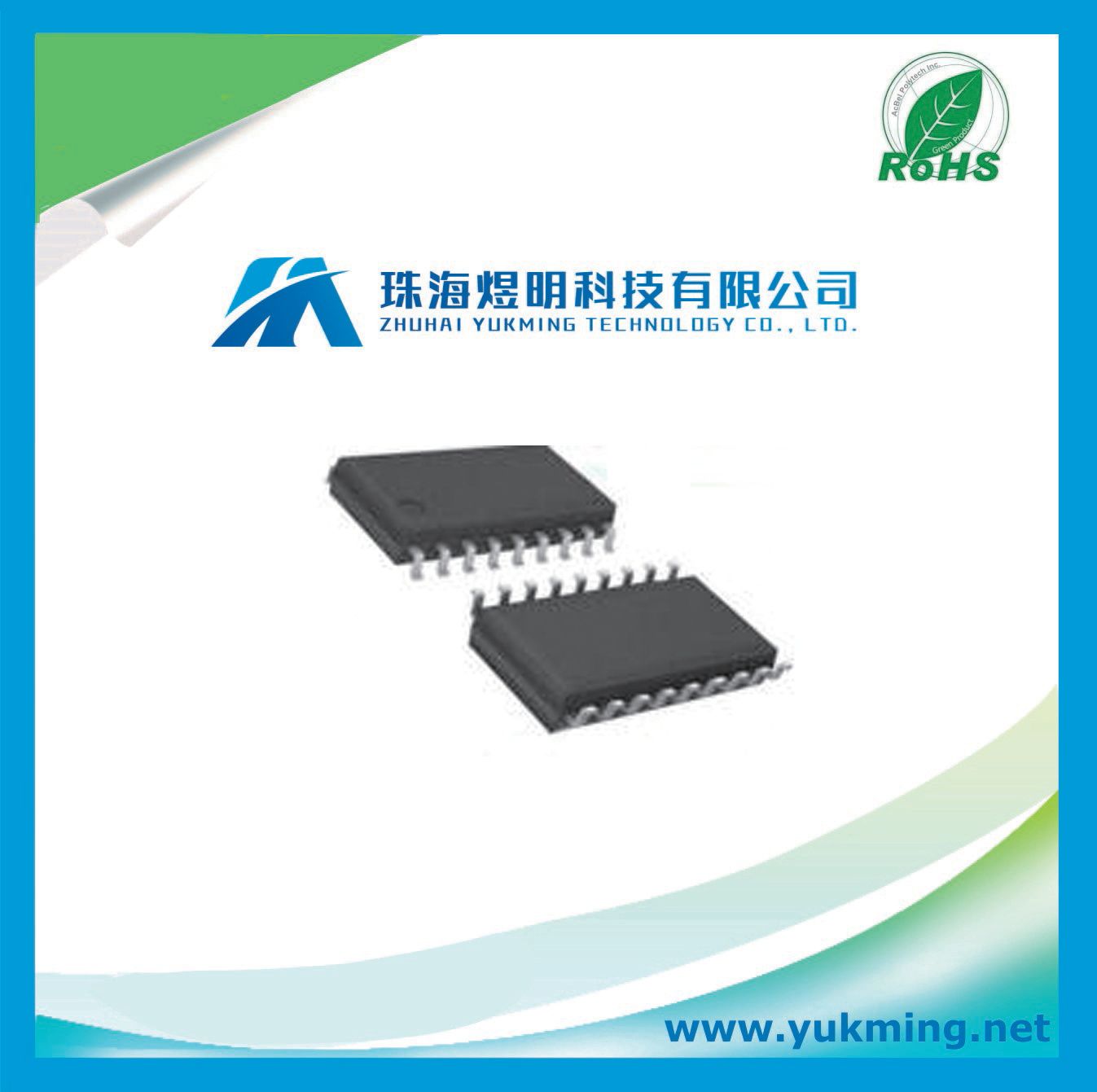

Prod Model:	ULN2803AFWG

Product Description

Octal High Voltage,High Current Darlington
Transistor Arrays

Description
The eight NPN Darlington connected transistors in this
family of arrays are ideally suited for interfacing between
low logic level digital circuitry (such as TTL, CMOS or
PMOS/NMOS) and the higher current/voltage
requirements of lamps, relays, printer hammers or other
similar loads for a broad range of computer, industrial,
and consumer applications. All devices feature
open-collector outputs and free wheeling clamp diodes
for transient suppression

The ULN2803 is designed to be compatible with
standard TTL families while the ULN2804 is optimized
for 6 to 15 volt high level CMOS or PMOS.

The ULN2803APG / AFWG Series are high−voltage,
high−current darlington drivers comprised of eight NPN
darlington pairs.All units feature integral clamp diodes
for switching inductive loads.
Applications include relay, hammer, lamp and display (LED)
Drivers. The suffix (G) appended to the part number represents
a Lead (Pb)-Free product.

Features
Output current (single output)
500 mA (Max.)
High sustaining voltage output
50 V (Min.)
Output clamp diodes
Inputs compatible with various types of logic.
Package Type−APG : DIP−18pin

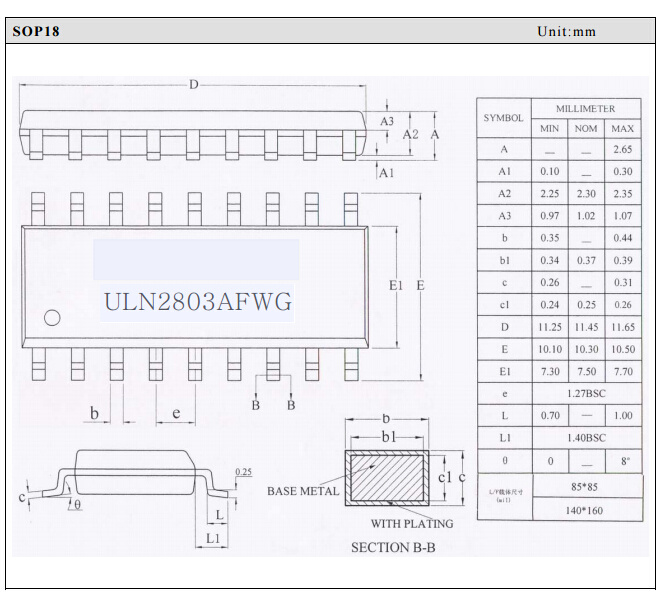

Package Type−AFWG : SOL−18pin
