| Cable Dimension: |
4.8mm-7.0mm |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Odva Fiber Optic Waterproof Outdoor Cable Assembly |
| Connection Structure: |
Odva |
| Brand: |
Fiberlink or OEM |
| Sheath Material: |
LSZH |
Product Description

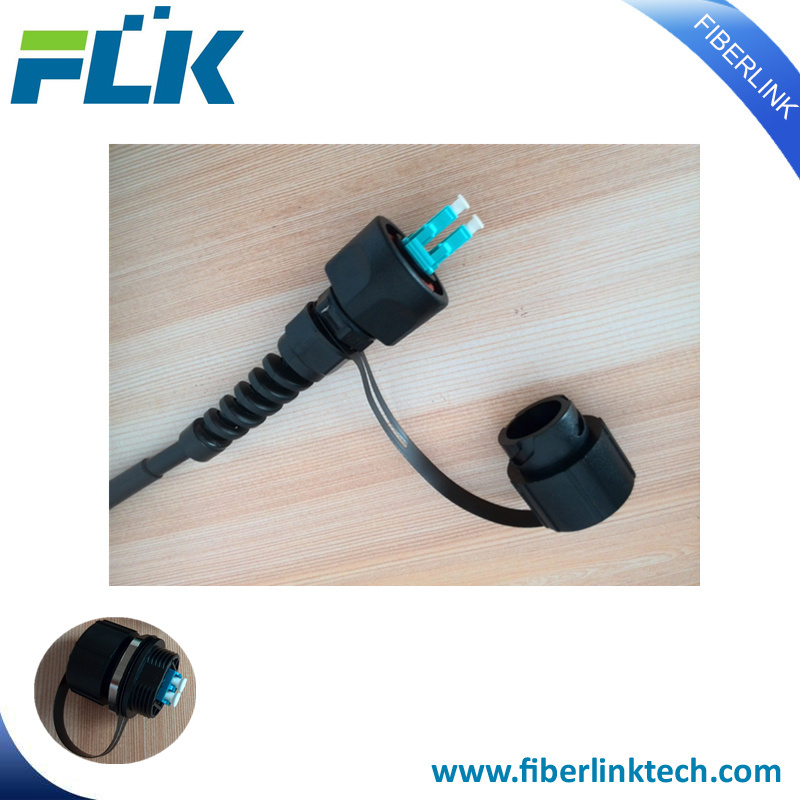

ODVA Fiber Optic Waterproof Outdoor Cable Assembly Patch Cord is designed for outdoor waterproof connector attaches to adapter on panel of RRH. ODVA waterproof connector is a typical outdoor use fiber cable, suitable for different temperature and weather, with good protection glass, especially ideal for FTTA and harsh environment use. All assemblies come with an ODVA connector on one end and an LC, SC, MPO or ODVA style connector on the other end.
Features
1.Protection Rating: IP67
2.meeting standard of Telcordia GR-326-CORE
3.Good performance of insert-pluck repeat ability and good interchangeability
4.IP67 rated to ensure protection from dust and water immersion
5.Flame retardant materials per UL-94-0
6.Bayonet-style mechanical lock
7.temperature range of-40°C-85°C
Applications
1. Harsh environments where chemicals, corrosive gases and liquids are commonplace
2. Telecommunication/CATV Systems
3. FTTX and Special environmental
4. Mobile routers and internet hardware
Specifications
| Parameters | Standard Fiber Cable Assemblies |
| Connector | Side-A: Compact RRU/BBU Helix cover Connector |
| Side-B: DLC(duplex LC),SC,MPO/MTP |
| Fiber count | 2core or 4......24 |
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC/PE |
| Outer Diameter of fiber cable | 4.8mm-7.0mm |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Loss(dB)
TIA/EIA-455-107 | ≤ 0.3dB
(UPC/APC) | ≤ 0.3dB
(UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB(UPC)
≥55dB(APC) | ≥35dB(UPC) |
| Exchange ability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | |
| Operating Temperature (°C) | -14~ + 85 |
| Storage Temperature (°C) | -40 ~ +85 |
