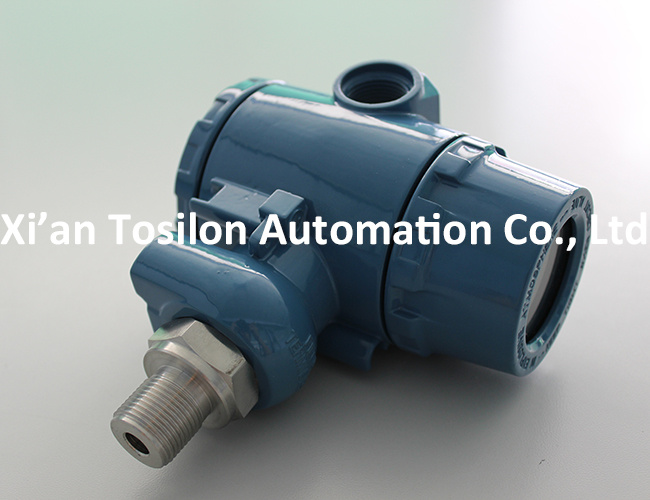

OEM High Temperature Piezo Water Tank Pressure Transmitter
| Price: |
US $ 100-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TPZ200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0~0.2MPa......60MPa |
| Overpressure: |
2f.S |
| Accuracy: |
0.5%F.S |
| Stability: |
0.25%F.S Max. 0.4%F.S |
| Working Tempt. (Degrees Celsius): |
-40~85 |
| Tempt. Compensation (Degrees Celsius): |
-10~70 |
| Transmission Type: |
2-Wire, 3-Wire, as Required |
| Output Signal: |
4-20mA DC, 0~5V DC |
| Power Supply: |
10~30V DC |
| Pressure Type: |
Gauge, Sealed Gauge, Absolute |
Product Description
Tosilon OEM High Temperature Piezo Water Tank Pressure Transmitter (Ex Approved)Design and Manufacturing According to CE StandardIntroduction Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from German. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
Features· Full stainless steel construction;
· Alarm Available (upper and lower value set);
· Pressure Buffer Connector;
· Electric connection optional;
· Pressure connection optional;
· Ceramic core and cell imported from German;

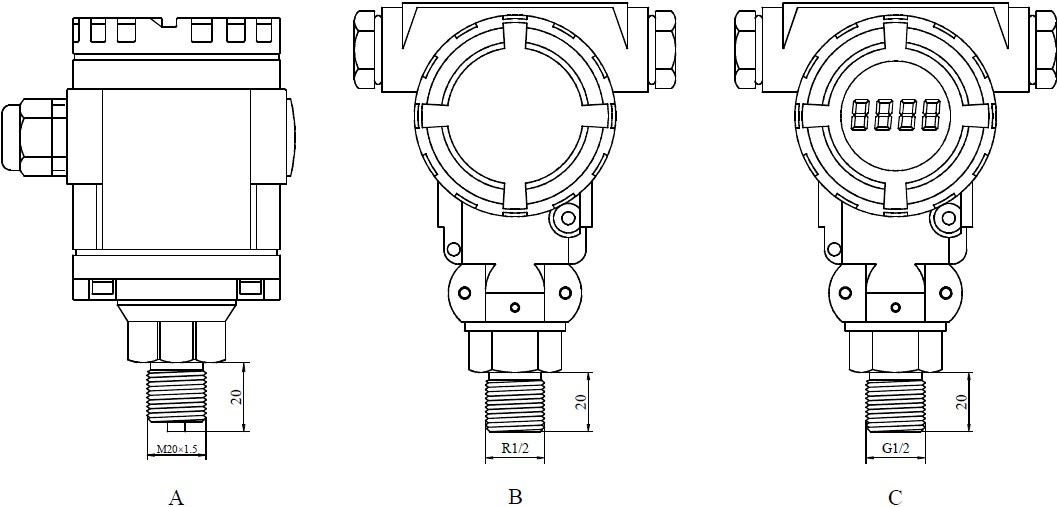

· CE approvedOutline Structure
Performance Parameters (For details, please contact Tosilon)
Pressure Range Overpressure0~0.2MPa......60MPa 2F.SAccuracy Stability±0.5%F.S 0.25%F.S Max. 0.4%F.SWorking Temp. Pressure Type-40 oC~85 oC Gauge, Sealed Gauge, Absolute Temp. Compensation Transmission Type
-10 oC~70 oC 2-wire, 3-wire
Output Power Supply4-20mA DC, 0~5V DC 10~30V DC For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Item | Description | Remark |
| Pressure Range | 0~0.2MPa......60MPa | |
| Overpressure | 2F.S | |
| Accuracy | ±0.5%F.S | |
| Stability | 0.25%F.S Max. 0.4%F.S | |
Working Temp.
(Degrees Celsius) | -40~85 | |
Temp. Compensation
(Degrees Celsius) | -10~70 | |
| Media | Compatible with 1Cr18Ni9Ti | |
| Transmission Type | 2-wire | 3-wire | |
| Output | 4-20mA DC | 0~5V DC | 1-5V DC | 0.5~4.5V DC | 0~10V DC | |
| Power Supply | 10~30V DC | 8~30V DC | 5V(ratio) | 11~30Vdc | |
| Load Resistance | (U-10)/0.02(Ω) | >20kΩ | |
| Insulation | >100M Ω@50V | |
| Vibration / Shock | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |
| Range of Display | -9999~99999@TPZ200C | |
| Electrical Connection | Water-proof Cable, IP65 | |
| Pressure Port | M20×1.5,G1/2,R1/4,NPT1/2 | |
| Pressure Type | Gauge, Sealed Gauge, Absolute | Response Time: 10ms | |
| electromagnetic compatibility | electromagnetic emission | Electromagnetic Sensitivity | |
| EN50081-1/-2 | EN50082-2
|
As a China leading mass flowmeter manufacture, Tosilon Automation, establish in 1989, has been engaged in and leads the advanced technology in Coriolis Mass Flow Meter, Density Meter and Flow Metering System which are more effective, efficient and innovate.
In the past 20 years, by cooperating with Northwestern Polytechnical University, Huazhong University of Science and Technology, Xi'an Shiyou University and CSIC Xi'an Dong Yi Science Technology & Industry Group Co., Ltd, financially supported by Provincial Science Technology Program, numbers of achievements and breakthroughs had been made in product-design and production process.
As a leading company in industrial measuring field in China, Tosilon offers complete solutions to flow, density, level, pressure, explosion protection, oil condition monitoring systems, etc. Presently, Tosilon's instrumentation has acquired certifications including CE, FCC, IECEx, ATEX. By years of efforts in improving and modifying, Tosilon has its featured products professionalized to meet the needs from major industries covering Oil & Gas Industry, Petrochemical Industry, Chemical Industry, Mineral Industry, Food Industry, Wine Industry, Paper Making, Power Plant, Drilling Mud Field, Pharmaceutical Industry, aviation, etc. Tosilon is always committed to the innovation and improvements in the technology, providing advanced products, solutions, and offering professional services to clients.
