| Prod Model: |
Energy Saving Star ES33 10-80Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crest Factor: |
3:01 |
| Output Power Factor: |
0.8 |
| Instant Recover Time: |
<10ms |
| Display: |
LED \ LCD Display |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
Product Description

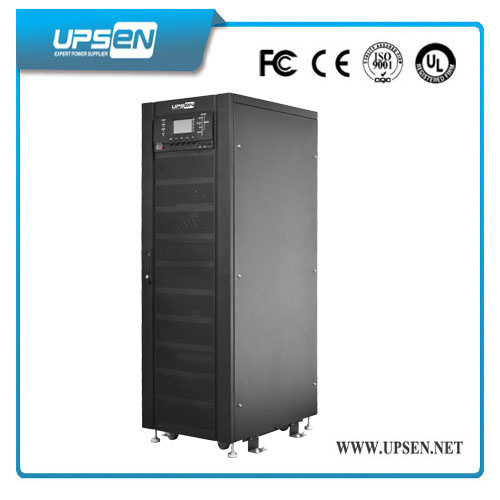

OEM UPS with Intelligent Battery Management System
1:high Frequency UPS with Inbuilt Batteries
2:high Frequency UPS System is 3/3 phase
3: UPS with Three Phase 380/400/415Vac
4: high Frequency UPS with high quality for bank
UPS Application
Large-medium computer data center, industrial process and other mission-critical equipment
UPS Key Features
1: DSP control
2: Double CPU control
3: Modularize
4: Battery can be sharing
5: Up to 8 units in parallel
6: Compatible with generator
7: Manual maintenance bypass
8: Advanced battery management
9: N+X parallel redundancy
10: Wide input voltage range
11: High output power factor
12: Strong environmental adaptability
13: Strong shock resistance ability
14: EPO function
15: Full protection against over-discharge, overcharge, over load
High Efficiency Strar Series HE33 10K-200K |
| Model | HE33 Series UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion online type |
| Input | Nominal voltage | 220V/380, 230/400, 240/415V |
| Voltage Tolerance | 380/400/415V±25% |
| Frequency | 50Hz/60Hz±5% |
| Permitted Frequency Tolerance | ±2% (selectable from ±1% to 5% from the front panel) |
| Soft start | 0-100% in 30" (selectable) |
| Input power factor | 0.95(with input filter) |
| Standard features | Back Feed protection separable bypass line |
| | Phase | Three phase +N+G |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability | ±5% in 19ms |
| Distortion | Linear load <3%, non linear load<5% |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Crest factor | 3:01 |
| Battery voltage | Standard battery voltage | 384V | 432V | 480V |
| Floating charge | 432V | 486V | 540 |
| Terminal voltage | 336V | 378V | 420V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
| Maximum Discharge Current | 28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125% → 10min,150% → 1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED \ LCD display |
| Remote signalling | Voltage-free contacts |
| Remote commands | EPO and bypass |
| Communication Port (Optional) | double RS232 + remote contacts + 2 communication interface slots |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
| *Specification are subject to change without prior notice |
