off Grid Hybrid Charger AC/Solar Charging Inverter Modified Sine Wave Inverter
| Price: |
US $ 54.5-55.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
HD Plus 1-2KVA |
| Dimention: |
276.7*245*97mm |
| Application: |
Home,Mobile Solao Power System |
| Power: |
720W 1300W |
| Input Voltage: |
230VAC |
| Frequency: |
50Hz 60Hz |
| Transfer Time: |
15ms Typical,20ms Max |
| Charge Mode: |
PWM |
| Cahrger: |
Built-in Enhanced AC Charger |
| Display: |
LED+LCD |
| Battery Alarm: |
>87% |
Product Description

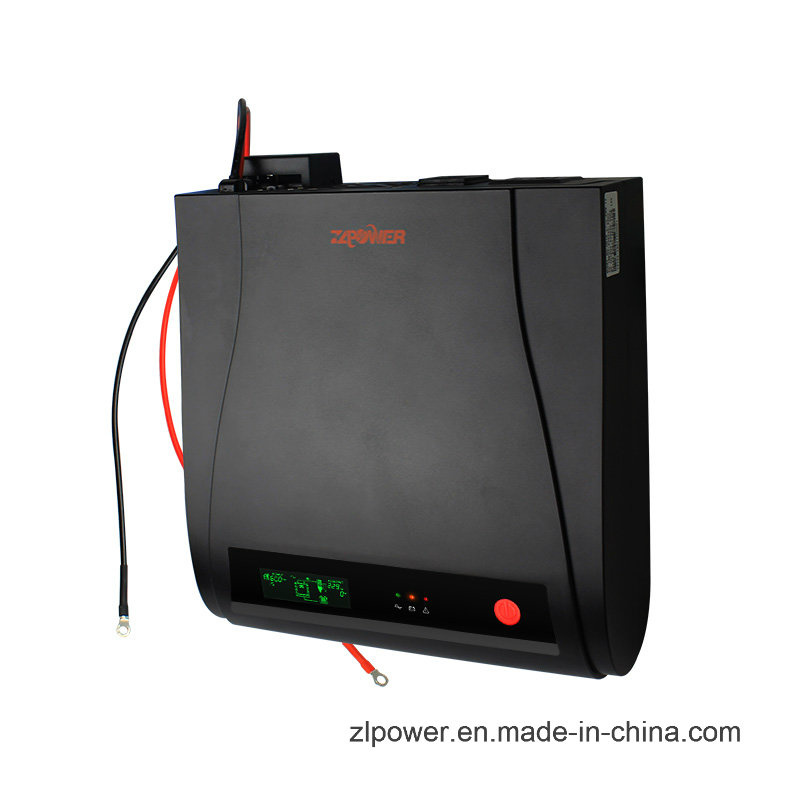

HD Plus Inverter Series
Application:The HD Plus1000~2000VA series Hybird charger solar inverter,apply to home solar power system,mobile solar power system.
Features:♦ HD Plus Series AC/Solar charging Off grid Hybrid Inverter.
♦ Built-in enhanced AC charger
♦ Built-in solar charger controller up to 40A
♦ Selectable Input voltage ranges/AC charging current/ AC or solar charger priority
♦ Intelligent 3-stage charger control for efficient charging and preventing overcharger
♦ Auto restart upon AC recovery
♦ LCD+LED display
♦ Multiple protections: low battery alarm, low battery shutdown, over charger protection,
overload protection, over temperature protection, short circuit protection
Specifications| Model Parameters | HD Plus1K-12 | HD Plus2K-24 |
AC
Input | Nominal Power | 1KVA/720W | 2KVA/1300W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 230VAC |
| Selectable Voltage Range | 165-270Vac±4%(Narrow Range) 85-270Vac±4%(Wide Range) |
| Max AC input Voltage | Max:270VAC |
| Frequency | 50Hz:or 60Hz |
AC
output | Output Voltage Waveform | Modified sine wave |
| Voltage Regulation (Batt.Mode) | 230VAC (+10% / -18%) |
Nominal Output
Frequency (Hz) | 50Hz or 60Hz (Auto detection) |
| Transfer Time | 15ms Typical, 40ms Max. |
Solar
charger | Charger mode | PWM |
| Maximun PV Array Power | 450W | 900W |
| Optimal Work Voltage Rang | 15VDC-18VDC | 30VDC-36VDC |
| MAX. PV input Voltage | 55VDC |
| MAX. PV input Current | 40Amp |
AC
Charger | Charging Algorithma | 3-step charging |
| Nominal Charger Current | 15 Amp or 20Amp Selectable | 10Amp |
| Floating Charging Voltage | 13.7VDC | 27.4VDC |
| Over charge Protection | 16VDC | 32VDC |
| Efficiency | Efficiency (Battery Mode) | >80% |
| Efficiency (Line Mode) | >95% |
Battery
Voltage | Nominal DC input Voltage | 12VDC | 24VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC | 21VDC±0.6VDC |
| Low DC input shut-down | 10VDC±0.3VDC | 20VDC±0.6VDC |
High DC input
Alarm & Fault | 16VDC±0.3VDC | 32VDC±0.6VDC |
System
Parameter | Protections | Low battery, over charging, over load, over temp |
| Indicators | LCD+LED Display |
| Over-Load Protection | 1min Load >110%,20s Load >120%,0s Load >150% |
General
Specifications
| Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~55ºC |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 276.7*245*97mm |
| Net Weight(kg) | 2.6 | 2.7 |
Product specifications are subject to change without further notice

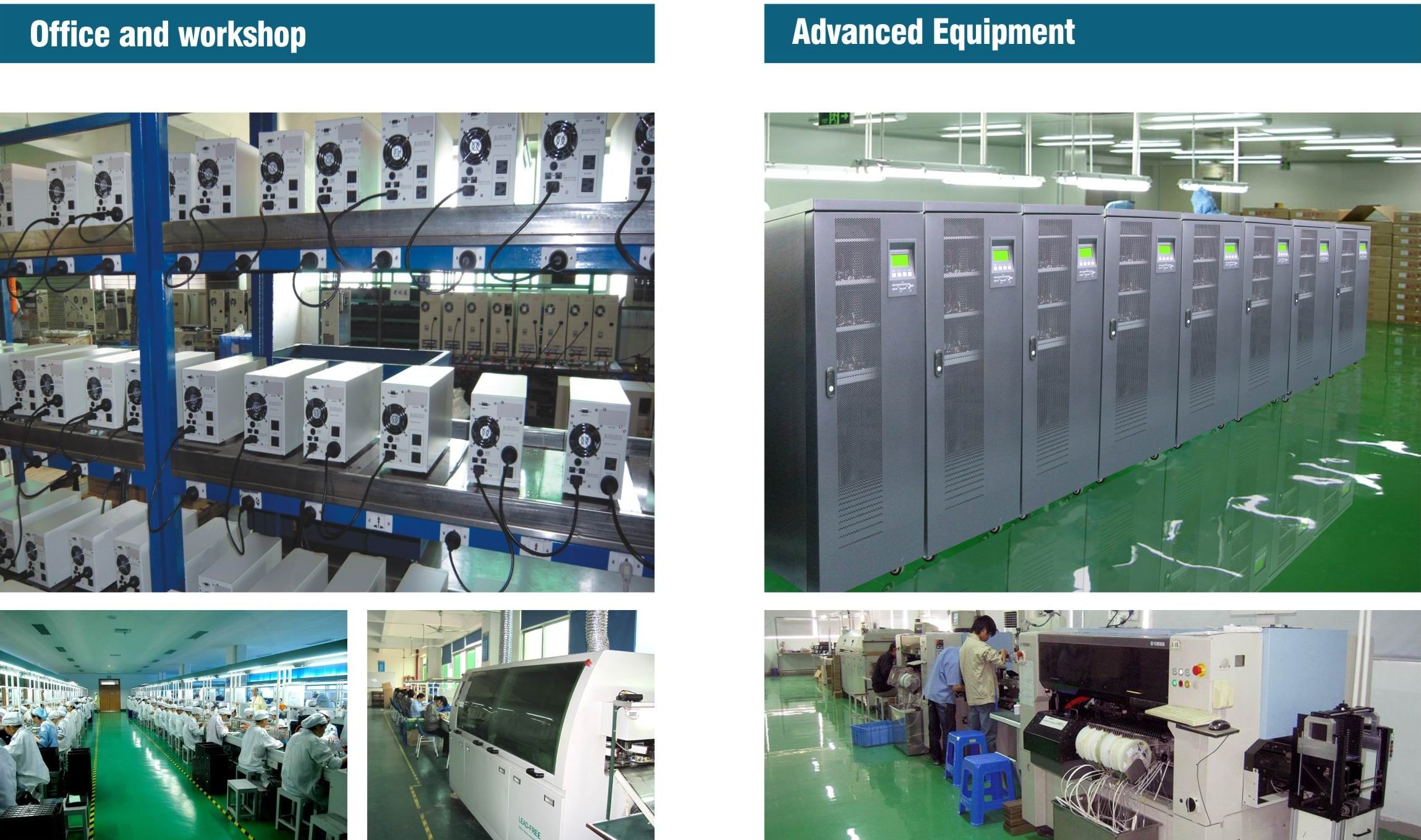

Factory Overview:
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
