| Prod Model: |
LW500-LW8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Phase: |
Single Phase |
| Nominal Voltage: |
110V, 120V/220V, 230V, 240V |
| Peak Power: |
3times of Rating Power |
| Short Circuit Prtection: |
Yes, Shutdown After 10ms |
| Power Factor: |
0.9-1.0 |
| Addtional Function: |
off-Charging |
| Battery Voltage: |
12V, 24V, 48V |
| Minimum Start Voltage: |
10V, 20V, 40V |
| Max Charge Current: |
20A, 35A, 70A, 90A(According to Inverter Model) |
| Communication: |
RS232, Snmp, USB Optional |
| Phase: |
Single Phase |
| Protection: |
Overvoltage |
| Type: |
on-Line |
| Brand: |
Zlpower |
Product Description
KEY FEATURES:
Home and office inverter
1. Pure sine wave output
2.12V/24V/48VDC, 110V/220VAC, 1KW-6KW available.
3. Max 70A charge current. Short recharge time, very suitable for critical...
It widely applied in wind Generator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of main power, mobile electricity work also telecommunications device, launch Station, Emengency EPS and so on.
Product performance

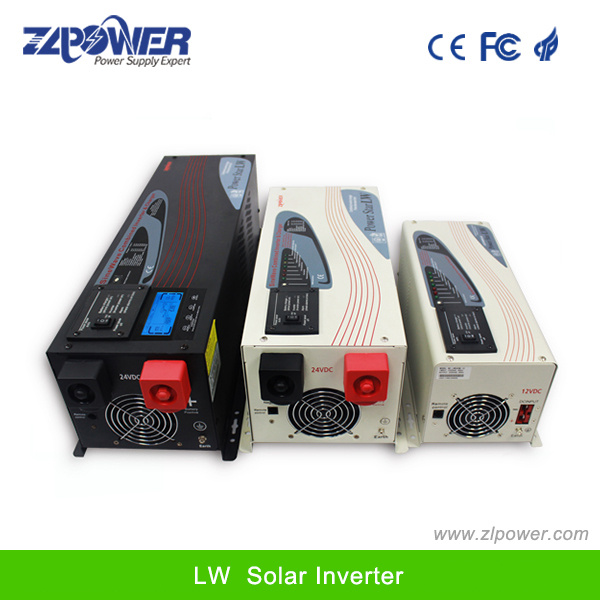

LW Series Pure Sine Wave Inverter takes low frequency converter Device, with built in Isolation transformer. Zero Voltage(ZV) and soft switch technic, high capability Motorola MCU, digital and dummy combined technics which Complete the voltage increase in one time and SPWM wave modemed Advanced circuit, high efficiency and compact size, small weight And super stability
It has no repellency for the load, which can work well with Inductive load such as fluorescent lamp, electromotor, microwave ovens, Induction cooker, refrigerator, air conditions and transformer.
With protection fonction like, DC input protect When pole wrong, AC input protection against over and low voltage, Output protection against over load, shor circuit Protection, DC input and AC output completely electric insulation.
Technical Specification:
Inverter (Rated Output Power)
1000W /1500W/2000W / 3000W/4000W/5000W/6000W
Input Voltage Waveform: Pure Sine Wave (utility or generator)
Nominal Input Voltage: 230VAC
Low Line Disconnect: 184VAC± 4%
High Line Disconnect: 253VAC± 4%
Max AC Input Voltage: 270Vrms
Nominal Input Frequency: 50Hz/ 60Hz (Auto detection)
Over-Load Protection
(SMPS load)
Circuit breaker
Output Short Circuit Protection: Circuit breaker
Efficiency (Line Mode): >95%
Transfer Switch Rating: 30A
Transfer Time(AC to DC): 20ms (typical)
Output Voltage Waveform: Sine wave
Power Factor: 0~1.0
Nominal Output Voltage (V): 230VAC
Output Voltage Regulation: ± 10% RMS
Nominal Efficiency>80%
Nominal DC Input Voltage
12V/24/48V
Nominal Charge Current
35A /70A
Charge Current Regulation: ± 5ADC
Batteryinitial voltage0 -15.7 VDC (can operate with 0V battery)
Communication: RJ11 (Used for factory testing. No customer interface available)
Safety Certification
Compliance with UL458
CE(EN60950)
EMI Classification
FCC, CLASS A
EN50091-2, CLASS A
Operating Temperature Range: 0° CTO 40° C
Storage temperature: -15C ~ 60C
Operation humidity5% to 95%
Audible Noise: 60dB max
Cooling: Forced air, variable speed fan.
| Inverter (Rated Output Power) | 1000w | 1500w | 2000w | 3000w | 4000w | 5000w | 6000w |
| Input Voltage Waveform | Pure Sine Wave (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac± 4% |
| High Line Disconnect | 253Vac± 4% |
| Max AC Input Voltage | 270Vrms |
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
Over-Load Protection
(SMPS load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | > 95% |
| Transfer Switch Rating | 30A |
| Transfer Time(Ac to Dc) | 20ms (typical) |
| Output Voltage Waveform | Sine wave |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Output Voltage Regulation | ± 10% rms |
| Nominal Efficiency | > 80% |
| Nominal DC Input Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V/48V | 24V/48V | 24V/48V | 24V/48V |
| Nominal Charge Current | 35A | 35A | 35A | 35A | 70A | 70A | 70A |
| Charge Current Regulation | ± 5Adc |
| Batteryinitial voltage | 0 -15.7 Vdc (can operate with 0V battery) |
| Communication: | RJ11 (Used for factory testing. No customer interface available) |
| Safety Certification | Compliance with UL458 | CE(EN60950) |
| EMI Classification | FCC, CLASS A | EN50091-2, CLASS A |
| Operating Temperature Range | 0Cto 40C |
| Storage temperature | -15C ~ 60C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
