| Prod Model: |
CS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warrenty: |
12 Months |
| Output Frequency: |
50/60Hz ±0.3Hz |
| Battery Type: |
Gel/AGM/Sealed Lead Acid |
Product Description
off grid inverter single phase Inverter with low battery Alarm
Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)
Key Features:
1: High efficiency and portable
2: Advanced microprocessor design
3: Manual control input&output breakers
4: Remote control & RS232 communication port
5: Easy to install & easy to operate & easy to solve
6: Compatible to mains voltage or generator power
7: Allows start up and through power with depleted batteries
8: AC Grid priority & battery priority working mode as selectable
9: DIP switch optional: Selectable charging voltage for various battery type
10: Four stages smart charging, charging current adjusted automatically
11: PFC (Power Factor Correction) for charger, less power consumption than conventional units

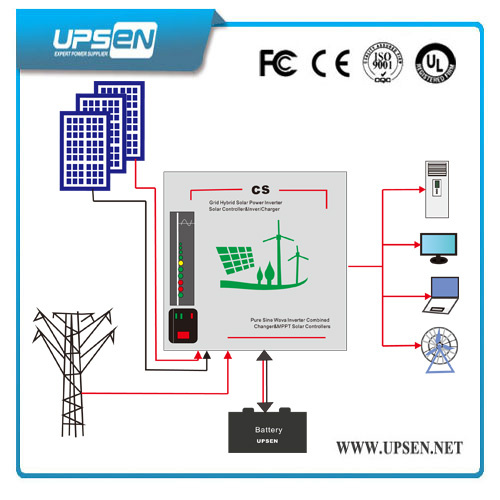

12: Professional off grid solar system solution, which is a combination of big power inverter and solar controller
Technical Specification
Mode NO. |
CS600 |
CS1000 |
CS2000 |
CS3000 |
CS4000 |
CS5000 |
CS6000 |
Rated Power |
600W |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC INPUT |
Phase&Waveform |
Single pahse&Pure Sine Wave |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Fequency |
50HZ/60HZ(Auto adjust) |
Voltage range |
95-127VAC/194-253VAC |
Frequency range |
48-54HZ/58-64HZ |
AC Output |
Waveform |
Pure Sine wave and single phase |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Frequency |
50HZ/60HZ |
Peak Power |
1800W |
3000W |
6000W |
9000W |
12000W |
15000W |
18000W |
Battery | |
Battery DC |
12/24VDC |
12/24VDC |
12/24/48VDC |
24/48VDC |
MAX charging cunrrent |
20A-75A |
Battery type |
GEL,AGM,Sealed lead acid |
MPPT Controller | |
PV Input |
15-30VDC For 12VDC/30-55VDC For 24VDC |
MAX charging cunrrent |
20/30/40/50/60AMP |
MAX Ouput current |
15A |
for DC laod |
Transfer efficiency | |
MPPT efficiency |
more than 95% |
Line Mode |
more than 95% |
Battery Mode |
more than 85% |
Power Saver |
Available when load is less than 50A |
Transfer time |
10ms |
Indicator | |
7-LED Indicators |
Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green), |
5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green) |
2-LED Indicators on MPPT |
Power/CHG Mode |
Dimension |
486*400*181mm |
486*432*181mm |
Weight |
22KG |
26KG |
28KG |
33KG |
45KG |
52KG |
56KG |
Competitive Advantages:
1: Three Years' warranty for pure sinewave inverter, and 1% free set or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
