off-Grid Water Pump Inverter 2.2kw with MPPT Solar Charger for Irrigation System

off-Grid Water Pump Inverter 2.2kw with MPPT Solar Charger for Irrigation System
Price: US $ 40-698/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: HSP2200L
Keywords: Irrigation Solar Water Pump Inverter
Weight: 15kg
Inverter Type: DC/AC Inverter
Pump Type: Single Phase AC Pump
Technology: Second Generation of MPPT, IP65
Display: LED or LCD Optional
Output: Triple
Feature: Pressure Sensor, GPRS Remote Control
Operation: Fully Automatic Operation
Size: 550*350*285mm

Product Description

Off-Grid Water Pump Inverter 2.2kw with MPPT Solar Charger for Irrigation system



1. Descriptions- solar puming inverter

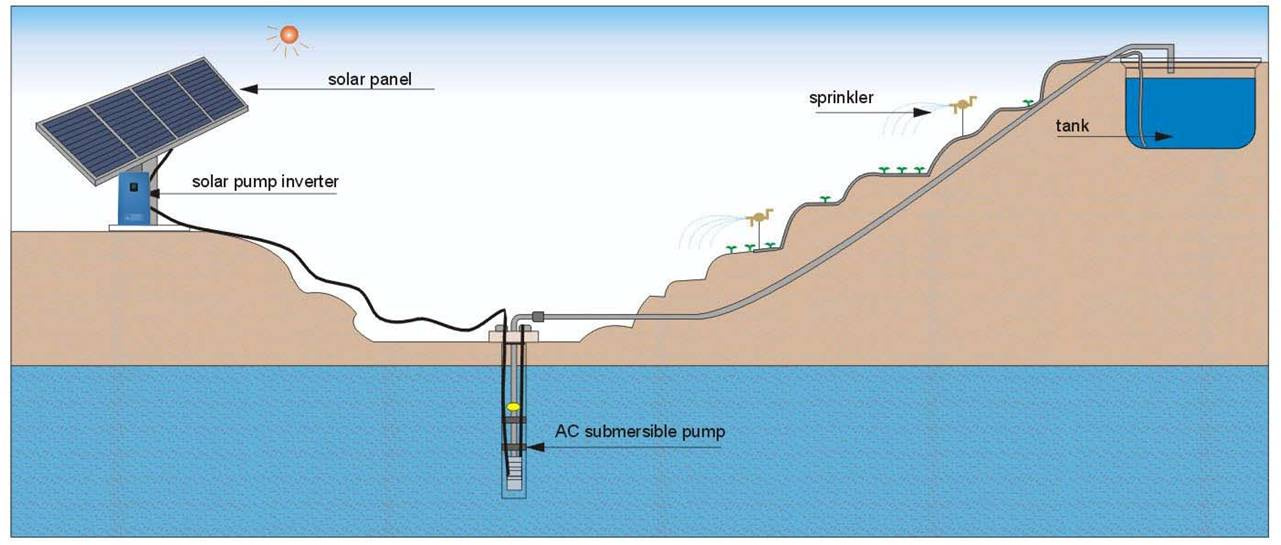

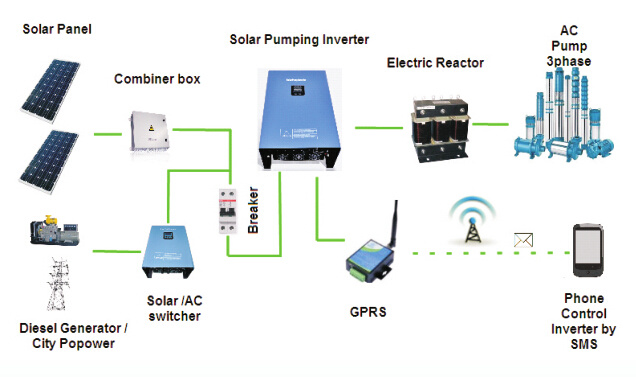

Solar water Pumping System is consist of PV panel, pumping inverter/controller, AC/DC pump.
Details:

>Solar Panel's Power configured to 1.2 ~ 2 times of pump's power , according to the pump's efficiency and sunshine of solar pumping system installed location.
>Solar Booster support max power of pump is 750W.
>Hybrid power input of solar pumping inverter (750W to 30KW is automatic supplement by AC or Battery power, 37KW to 150KW by manual).

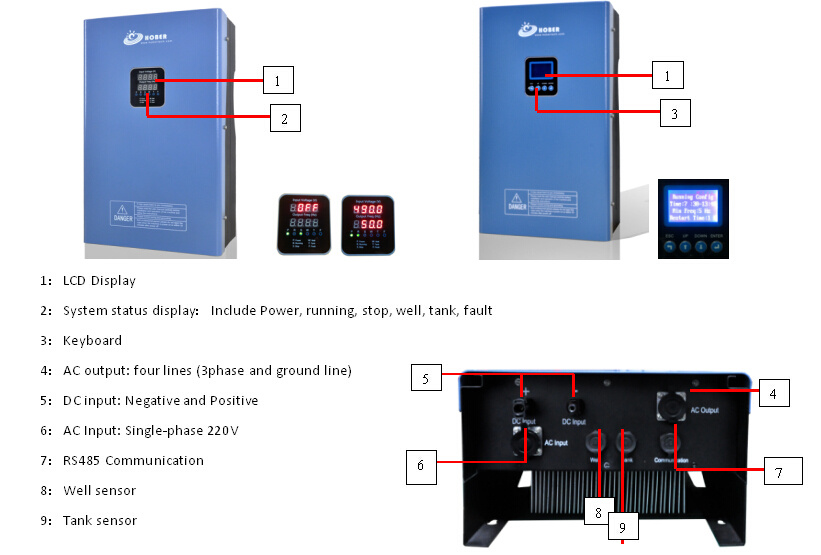

2. Display- Solar puming inverter

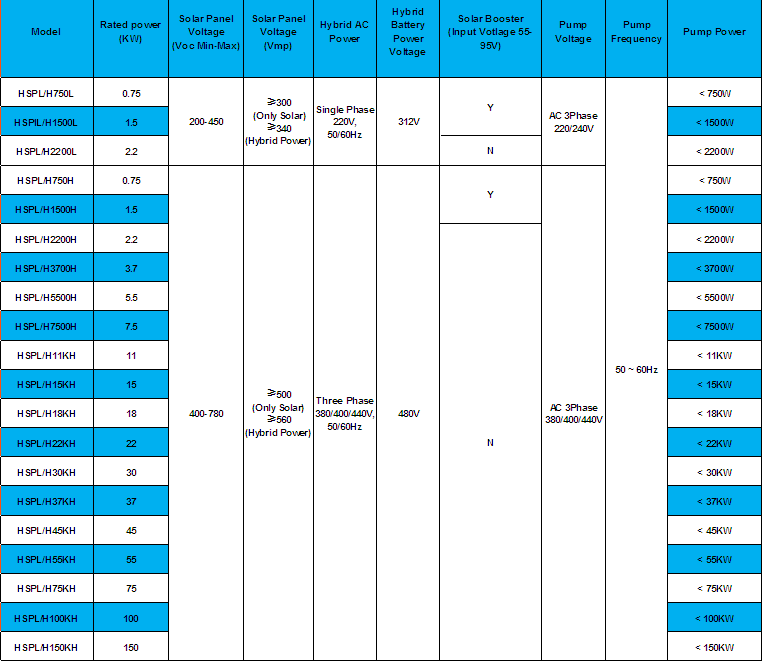

3. Specifications- Solar puming inverter

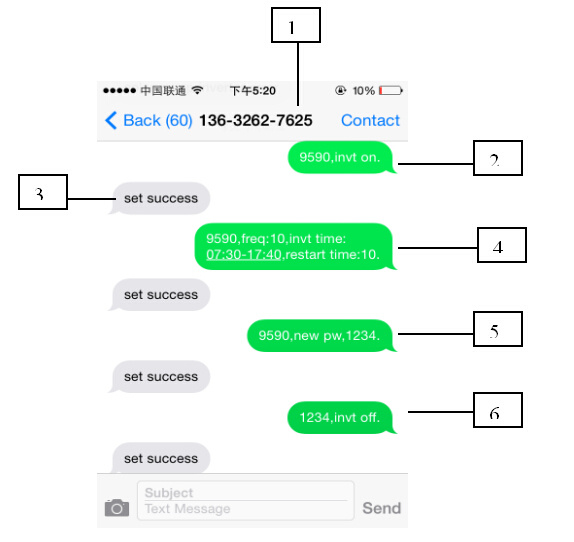

GPRS control:
1The SIM Car Number/ 2G

2SMS to Control the Inverter On(Start output)
3Feed back by Inverter
4Set the Inverter's Min Freq, Running Time and restart time.
5Update the Password for SMS control
6SMS to Control the Inverter Off(Stop output)

Applications:

1) residents living water
2) Farm and agriculture irrigation
3) desert control
4) animal husbandry & livestock watering
5) water apply for sea island
6) water treatment projects,etc.


4. Packing & Delivery
>Inverter: 1pcs
>DC Input Connector: 2-12pcs according to the Table-2
>AC/Battery Input connector: 1pcs
>Tank Sensor: 1pcs
>Well Sensor: 1pcs
>AC Output Connector: 1pcs
>User Manual: 1pcs
Note: For 45KW to 55KW , there is no connector leave factory.
ModelHSPL3700H
PackageExport carton package, 1PCS/Carton
Size550*350*285MM
Wight15KG
DeliveryWithin 7-10 days after deposit
Warranty2 Year warranty period
Payment30% T/T in advance, the balance before delivery

6. FAQ- solar puming inverter

1.How about quality guarantee?    -It's 1 year for whole unit.
2.What's the MOQ?    -1 piece is OK.
3.Can you accept OEM or ODM?    -Yes, surely.
