Oil Immersed High Voltage Fuse for Transformer Protection

Prod Model:	OEFMA OHGMA OEFAM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Safety Standards:	IEC
Color:	White
Material:	Ceramic

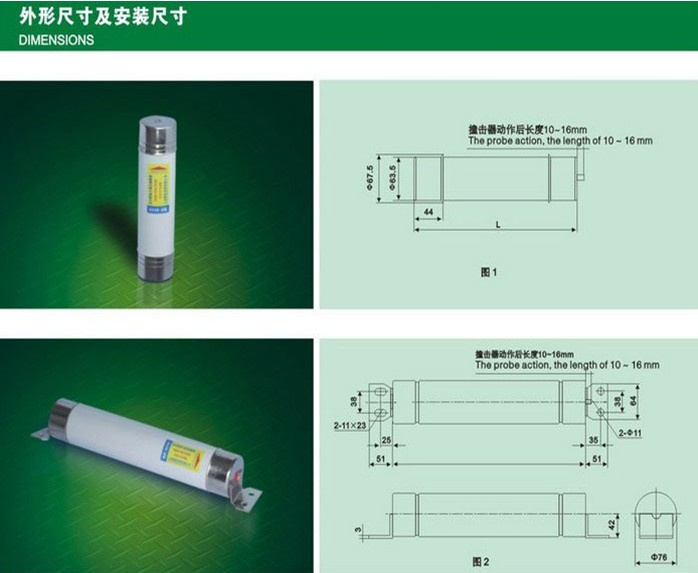

Length:	254mm, 359mm
Diameter:	63.5mm
Weight:	15kg
Service:	OEM, ODM
Delivery:	as Required
Usaga:	High Voltage
Breaking Capacity:	High Voltage
Type:	Fuse
Shape:	as Picture Show
Standard:	IEC

Product Description

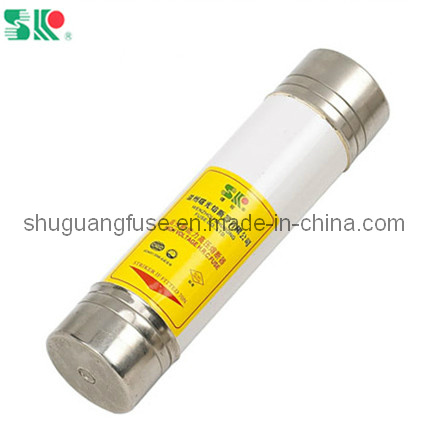

Oil immersed high voltage fuse for transformer protection

Key Specifications/Special Features:

1. Oil-immersed
2. High breaking capability
3. High voltage current limiting fuse
4. Suitable for electrical power system of AC 50Hz, rated voltage 36. -24KV, rated current up to 200A(3.6KV), 160A(7.2KV), 125A(12KV) and below. Circuit for protecting transformers and other power equipment from overload and short-circuit.
5. High-pressured fuse conforms to the national GB15166.2 standard and the international electrical committee IEC 60282 standard as well as German DIN standard and British BS standard.

Type	Rated voltage(KV)	Rated current (A)	Breaking current(KA)	Length(mm)
OEFMA	3.6	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200	50	254
OEFMA	7.2	80, 100, 112	50	254
OHGMA	7.2	100, 125, 140, 160	50	359
OEFAM	12	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63	40	254
OHFAM	12	71, 80	40	254
OHGAM	12	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 100, 125	40	359
OEGAM	24	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63	25	359
OFGMD	12	63, 80, 100, 125	40	359
OKGMD	12	160, 200	40	359
