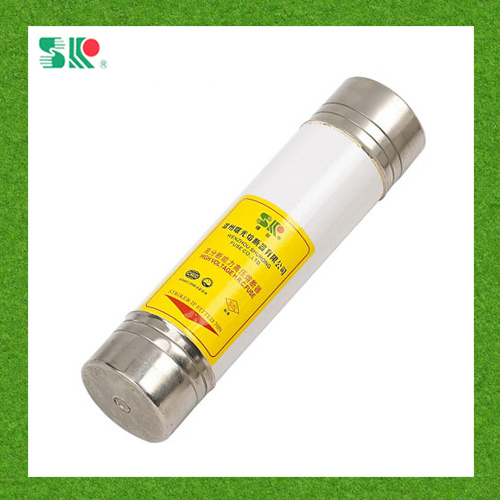

Oil-Immersed High Voltage Fuse

Prod Model:	OEFMA, OEGMA, OFGMA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Sr
Safety Standards:	IEC
Color:	White
Material:	Ceramic
Length:	254mm, 359mm
Diameter:	63.5mm, 76mm
Service:	OEM, ODM
Sample:	Avaiable
Delivery:	as Required
Operation:	Manual Type
Breaking Capacity:	High Voltage
Type:	Fuse
Usaga:	Overload and Short-Circuit Protection

Product Description

Oil immersed high voltage fuse for transformer protection
Key Specifications/Special Features:
1. Oil-immersed
2. High breaking capability
3. High voltage current limiting fuse
4. Suitable for electrical power system of AC 50Hz, rated voltage 36. -24KV, rated current up to 200A(3.6KV), 160A(7.2KV), 125A(12KV) and below. Circuit for protecting transformers and other power equipment from overload and short-circuit.
5. High-pressured fuse conforms to the national GB15166.2 standard and the international electrical committee IEC 60282 standard as well as German DIN standard and British BS standard.

Type	Rated voltage(KV)	Rated current (A)	Breaking current(KA)	Length(mm)	Weight (kg)
OEFMA	3.6	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200	50	254	2
OEFMA	7.2	80, 100, 112	50	254	2
OHGMA	7.2	100, 125, 140, 160	50	359	3
OEFAM	12	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63	40	254	2
OHFAM	12	71, 80	40	254	2
OHGAM	12	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 100, 125	40	359	3
OEGAM	24	6.3, 10, 16, 20, 25, 31.5, 40, 50, 63	25	359	3
OFGMD	12	63, 80, 100, 125	40	359	4
OKGMD	12	160, 200	40	359	4
