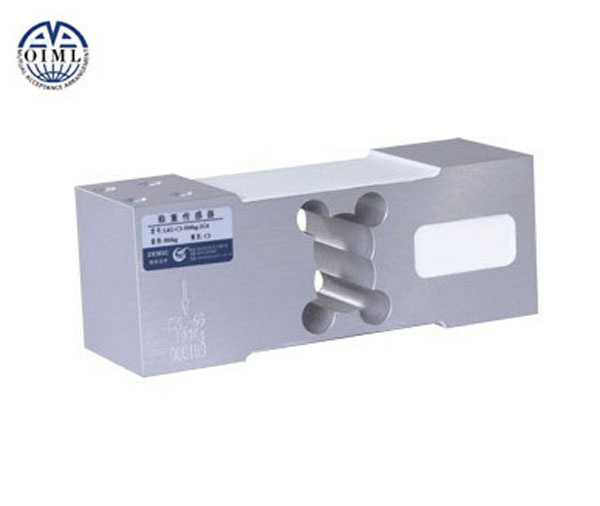

OIML Platform Scale Load Cell (L6G)

Name: OIML Platform Scale Load Cell (L6G)
Brand: all-electronics-online.com
SKU: 678355502
Availability: InStock
Rating: 4.3 (44 reviews)

Price:	US $ 10-20/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE:	OIML
Material:	Aluminum

Product Description

Name: Load cell
Modl: L6G
Capacity:50kg to 600kg .
High accuracy.
Max. platform size:600x600mm.
Intergral installation.
With OIML approval.
L6G load cells are available in the capacities 50kg to 600kg.
Alumium construction with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Intergral structure and easy installation.
Suitable for pricing scales, platform scales and other electronic weighing devices.

Capacity	kg	50/100/150/200/250/300/500/600
Accuracy		C3D	C3	C3G
Approvals			OIML R60 C3
Maximum numberof verification intervals	n max	2500	3000	4000
Minimum load cell verification interval	v min	Emax/5000	Emax/7000	Emax/11000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.015
Creep	(%FS/30min)	≤±0.020	≤±0.0167	≤±0.0125
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.021	≤±0.0175	≤±0.0131
Temperature effect on zero	(%FS/10ºC)	≤±0.028	≤±0.020	≤±0.0127
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6/1065±15
Output resistance	(Ω)	350±3/1000±10
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation,Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm

Hangzhou Gongheng Weighing Equipment Co., Ltd is a Hi-tech enterprise specialized in producing, researching, developing, and selling the electronic scales, crane scale, floor scale, platform scale, pallet truck scale, truck scale and weighing accessories and so on. We have a number of experienced and capable technical personnel and advanced technology, innovated designs, superior production equipment and self-contained QC system, and provides high quality products, best price and service.
We produces the products that are characterized by variety, complete specification, quick delivery, high quality, best price and have been widely praised by many users and distributors. In addition to the standard scales for common use, the company can design and produce products required by different users and meet their special demand. We have set up a well-managed network of in-sale and after-sale service as well as a complete mechanism for service supervision and hope to co-operate with the distributors by supplying the high quality crane scale, floor scale, platform scales at competitive price and on the principle of mutual benefit. Sincerely look forward to cooperating with you, welcome you into our HZGH.
