Om1-OS2 Fiber Mode Conditioning

Name: Om1-OS2 Fiber Mode Conditioning
Brand: all-electronics-online.com
SKU: 723791725
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MCFP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Certification:	ISO9001
Type:	Singlemode to Multimode
Connection Structure:	Sc-LC
Sheath Material:	LSZH

Product Description

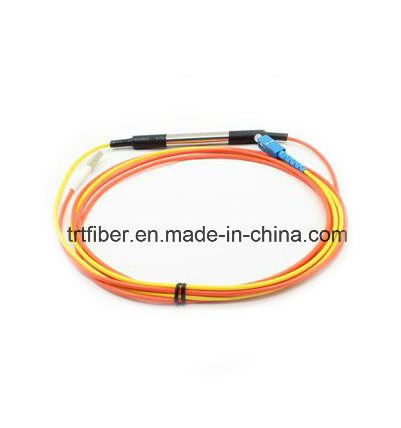

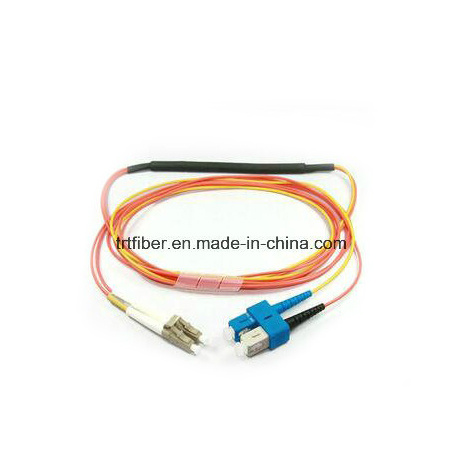

Singlemode to Multimode fiber conditioning, OM1 to OS2 mode conditioning, SC-LC duplex mode conditioning

When using multimode 62.5/125µ M optical fibre for transmitting Gigabit data over distances greater than 300 metres, a Mode Conditioning Patch cord must be used at each transmitter/receiver. This is because when a singlemode laser is launched into the centre of a multimode fibre it may cause differential mode delay (DMD) effects that generate multiple signals. The Mode Conditioning Patch cord overcomes this problem by launching the laser light from the transmitter into a single mode fibre which is aligned with a precise offset from the centre of the core of a 62.5/125µ M fibre in the "mode conditioning" part of the patch cord. The output from the patch cord is then compliant with the IEEE 802.3z standard for 1000Base-LX.
Mode Conditioning Patch Cords are not recommended for short transmission distances a few tens of metres as bit errors may occur/increase.
We have mode conditioing patch cord are used with SC equipment, LC equipment and MTRJ equipments.
It is customized with different connectors like SC LC FC ST MTRJ connectors.

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
Single or multi mode is available
4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Other
Pack Qty	1
Lengths	0.5mt, 1mt, 2mt, 3mt, 5mt, 10mt, 15mt, 20mt
Outer Jacket	LSZH/PVC
Fibre Patch Leads
Connector Type/s	FC,SC,ST,LC,MTRJ
Fibre Sizes Available	62.5/125 (OM1), 50/125 (OM2), 50/125 (OM3)
Number of Cores	2/Duplex
