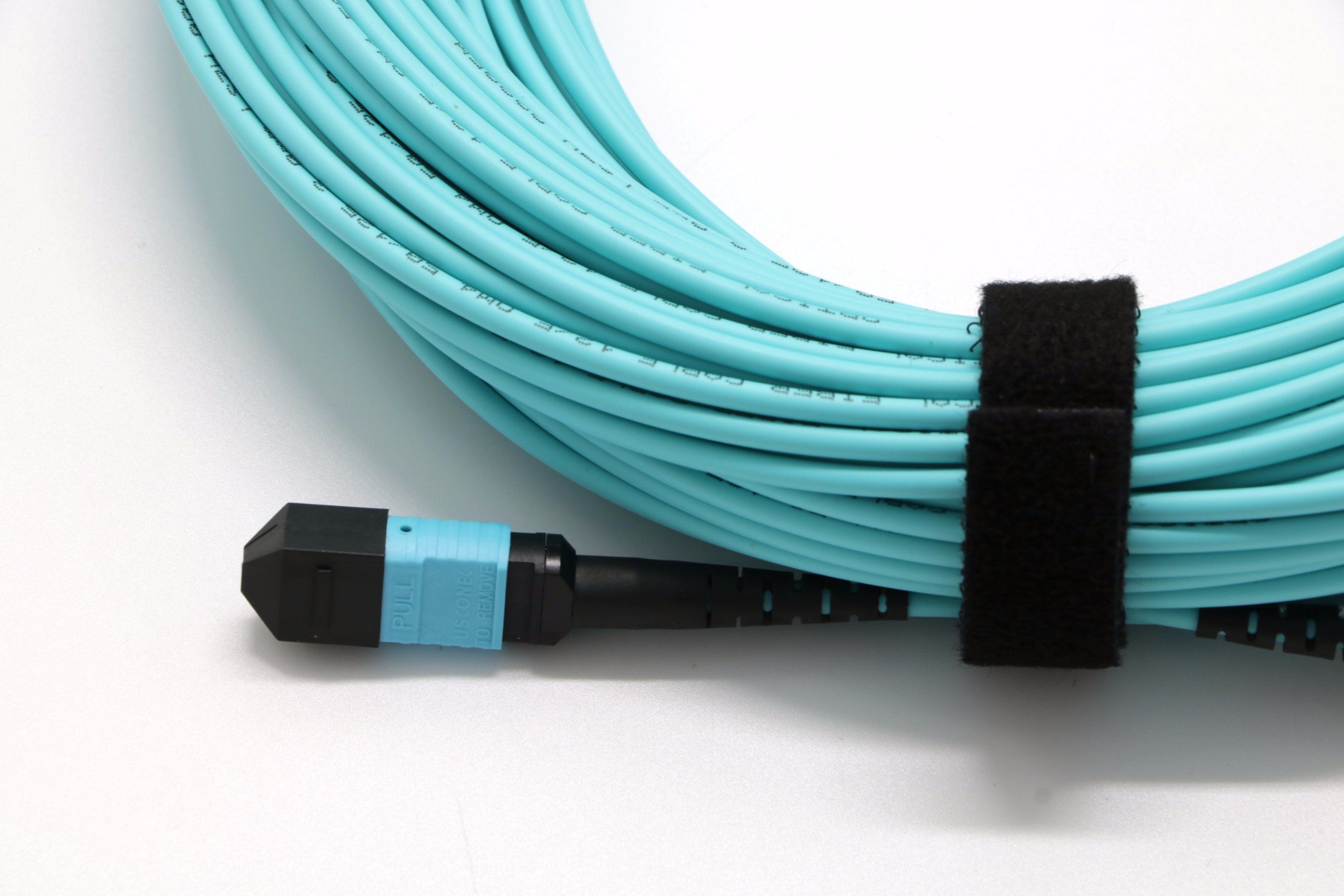

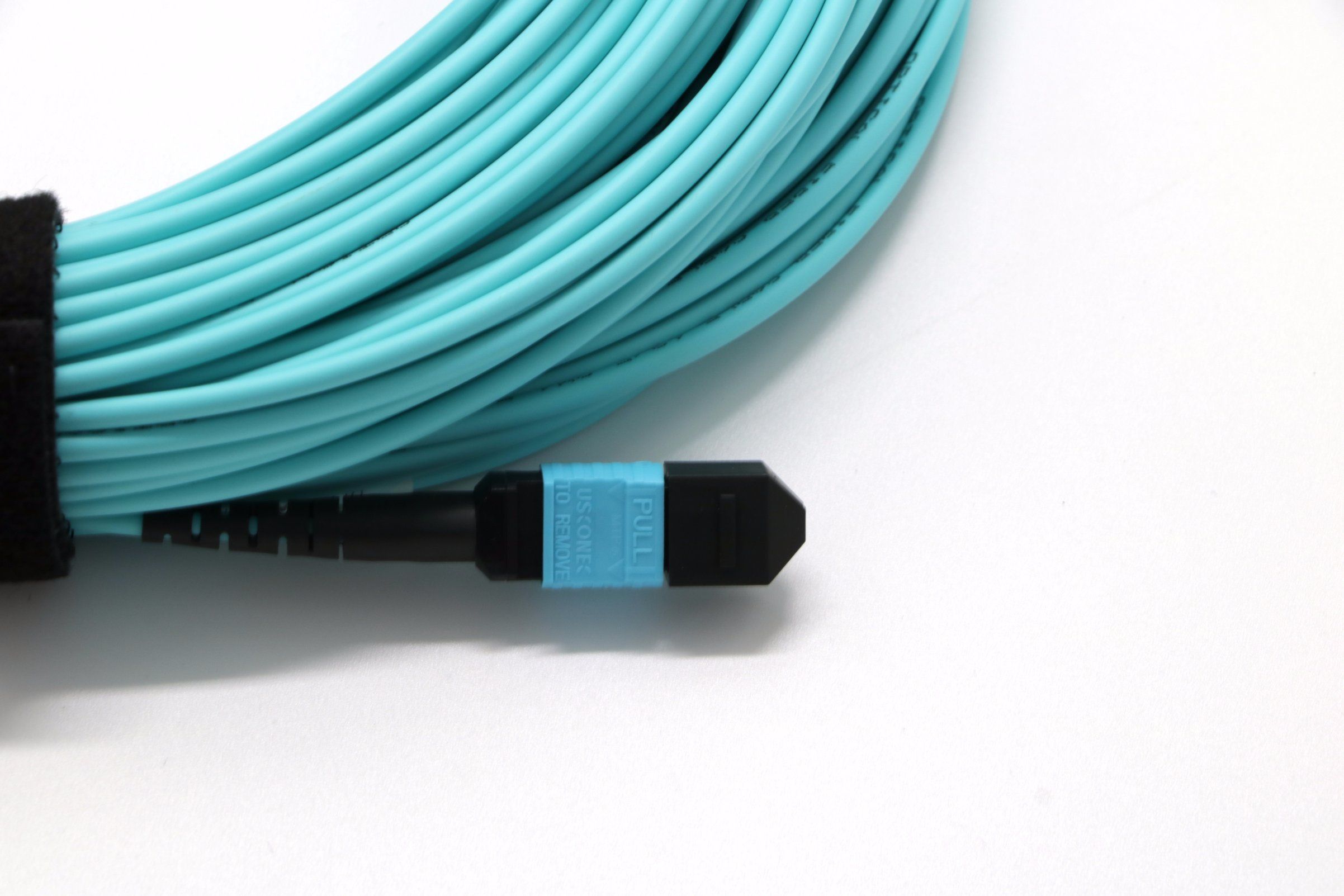

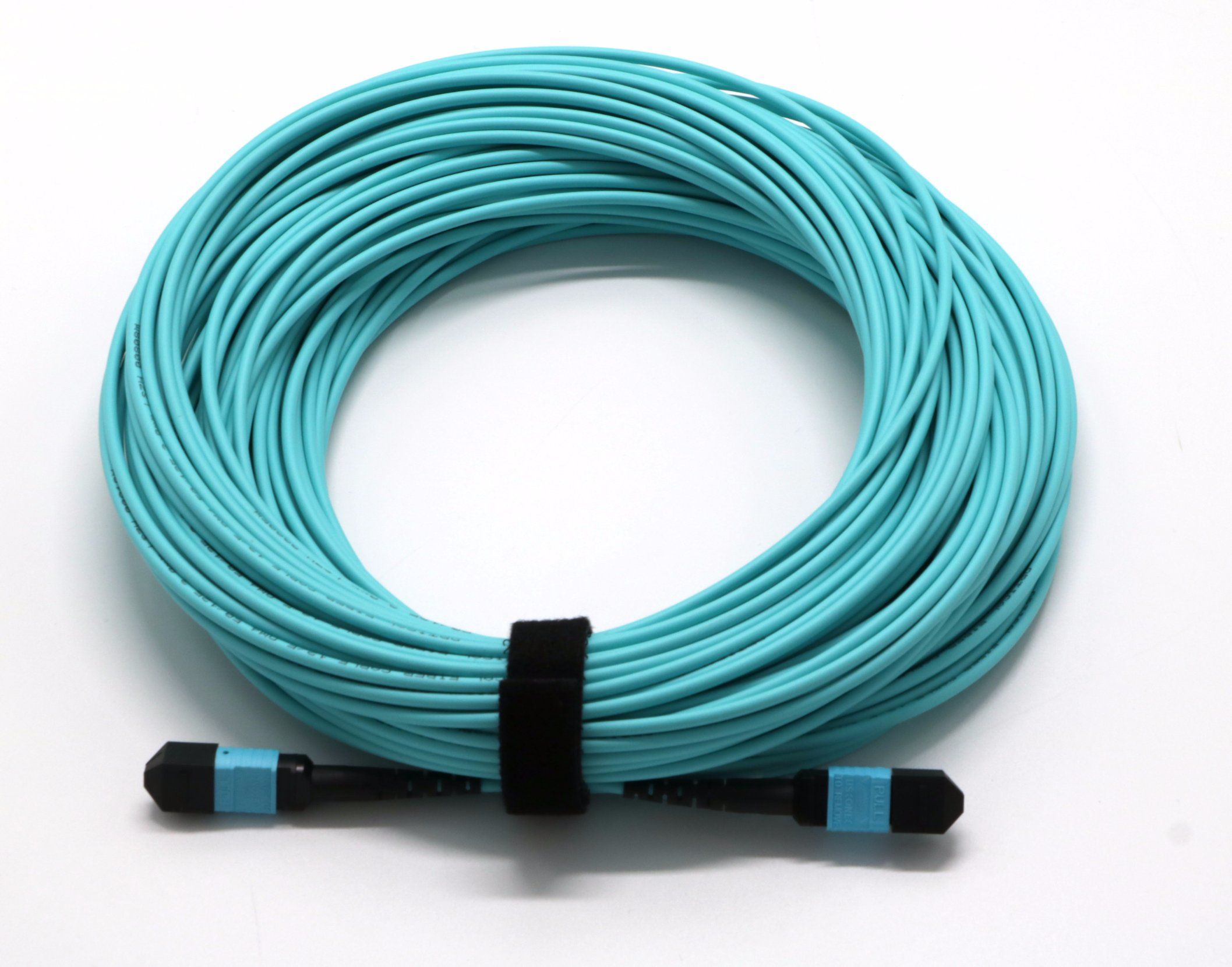

Om3 Multimode MPO Fiber Jumper Cord Aqua Color

Name: Om3 Multimode MPO Fiber Jumper Cord Aqua Color
Brand: all-electronics-online.com
SKU: 770867475
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	24 C OM3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MPO Fiber Jumper:	MPO Patch Cord
Om3 Fiber Patch Cord:	Fiber Patch Cord
Fiber Optic Cable:	Optical Fiber
Application:	Communication
Type:	Multi-mode Fiber
Certification:	CE
Connection Structure:	MPO-MPO

Product Description

Fiber Optic Patch Cables
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, E2000 connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Application
¨         Telecommunication
¨         CATV, FTTH, LAN
¨         Fiber oiptic sensors
¨         Optical transmission system
¨         Test equipment
Features
¨         Screw-thread coupling mechanism
¨         Ceramic ferrules connectors
¨         Low insertion loss, high return loss
¨         Excellent mechanical endurance
¨         High credibility and stability
¨         Good in repeatability and exchangeability
¨         100% Insertion, Return Loss, End Face and Interference inspection

Technical Data

Parameter

Unit

FC, SC, LC

ST, MU

MTRJ, MPO

E2000

UPC

APC

UPC

APC

Insertion Loss

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return Loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Repeatability

≤0.1

Durability

≤0.2dB typical change, 1000 matings

Operating temperature

ºC

-20 ~ +75

Storage temperature

ºC

-40 ~ +85

Ordering Information

Connector	Fiber Core	Cable Diameter	Fiber Type	Polishing	Cable Jacket	Cable Color	Fiber Length
LC SC FC ST D4 MU DIN SMA MPO MTRJ E2000	Simplex Duplex	0.9mm 2.0mm 3.0mm	SM:9/125um MM:50/125um MM:62.5/125um OM3	PC UPC APC	PVC LSZH	Yellow Orange Aqua others	1M 2M 3M 10M 20M 30M

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
