| Prod Model: |
SL-SC/MM-OM3/03 |
| Od: |
3.0mm |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
CE |
Product Description

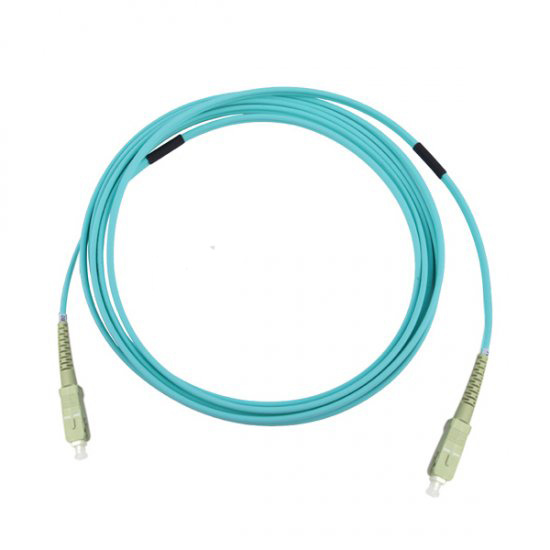

10G OM3 50/125μm Multimode SC/UPC to SC/UPC Simplex Armored Fiber Patch Cable
Armored Patch Cable as the name implies, there is an helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket to better protect the cable work well in data center rooms and harsh environments.
The 10G cables work with both VCSEL laser and LED sources, it is generally used in the following areas: Broadband NetworkOptical Passive Network PONFTTx, lCATV, lLAN and WANMilitary&Industry Harsh Environments
Item Details Connector-1: SC UPCConnector-2: SC UPCFiber Type: SimplexMicron: 50/125μmFiber Class: 10G OM3 MMF FiberCable Color: Aqua(default)Cable Jacket: Armored PVC/LSZH(optional) | | Key Features Low Insertion Loss and high return lossRugged, excellent kink and crush resistantStainless steel tubemetal braid structureComplete with Lucent Technologies Aqua jacketAvailable for LC, SC, ST, FC, etc standard connectorsRoHS, REACH and SvHC compliant |
Standard Cable Vs. Armored Cable

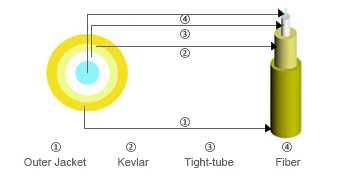

Simplex - Standard Cable

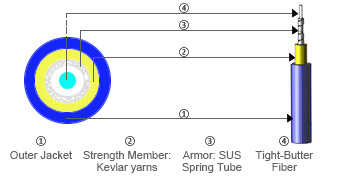

(One armored tube, one core in the tube) | Simplex - Armored Cable
(One armored tube, one core in the tube) |
 |  |
Note: The default cable is single armored, but we also provide double armored cable, it be wrapped by two layers of armored to better protect the fiber more than single armored cable. Welcome to contact us for details.
Specifications
Specification | Unit | FC, SC, LC,ST, MU,MT-RJ,E2000 |
Single-mode & Multi-mode |
UPC & APC |
Insertion loss | dB | ≤0.3 |
Return loss | dB | ≥50 |
Wavelength | nm | 850, 1310, 1510 |
Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 |
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
| Designation | Fiber Dia.
(μm) | Type | Fast Ethernet
100BASE-FX | 1 Gigabit Ethernet
1000BASE-SX | 1 Gigabit Ethernet
1000BASE-LX | 10 Gigabit Ethernet
10GBASE | 40 Gigabet Ethernet
40GBASE-SR4 | 100 Gigabet Ethernet
100GBASE-SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters
(mode conditioning patch cable required) | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 | Multimode | 550 Meters | 300 Meters | 100 Meters | 100 Meters |
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters | 150 Meters | 150 Meters |
| Singlemode | 9/125 | Singlemode | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | | |
PS:The difference of OM4 and OM3 fiber mode as the following1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.
