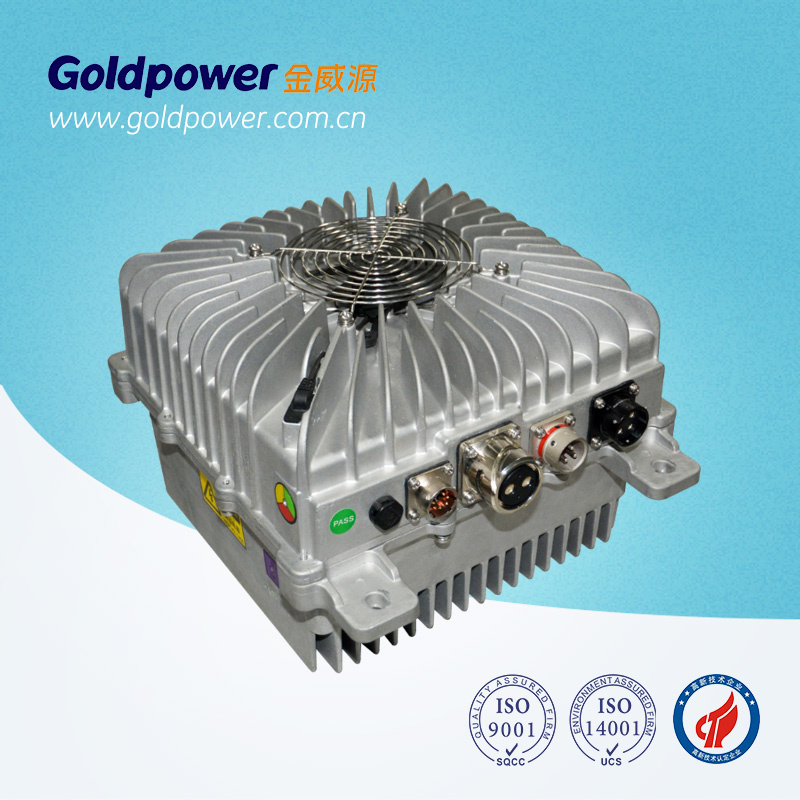

on-Board DC/DC Converter for Electric Vehicle

Name: on-Board DC/DC Converter for Electric Vehicle
Brand: all-electronics-online.com
SKU: 732550132
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPEV-DD102N-L-1A
Efficiency:	≥95%
Operating Temperature:	-40~+85ºC
Communication Port:	Can2.0b
Output Voltage:	14±0.25VDC
Max. Output Current:	85A
Output Type:	Single
Warranty:	2 Years
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Output Power:	1kw
Input Voltage:	40~200VDC
Brand:	Goldpower

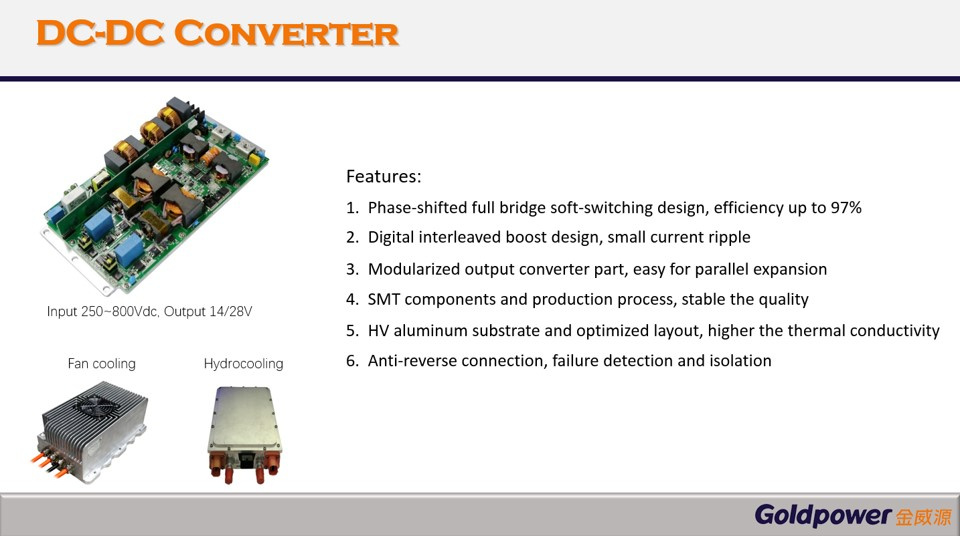

Product Description

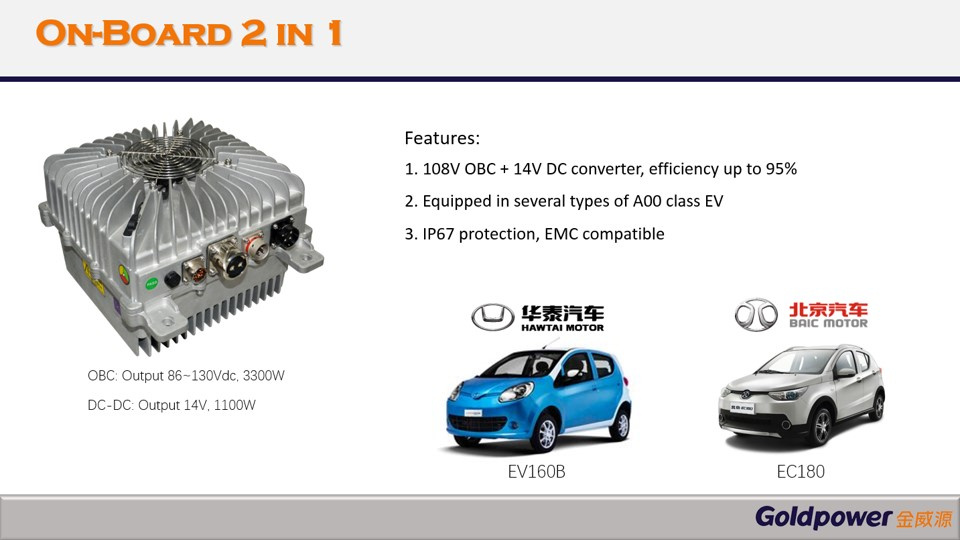

ON-board DC DC converter is mainly used for Electric Vehicle,equipped in several types of A00 class EV,. IP67 protection, EMC compatible

Features:

Soft-switching technology, high eﬃciency up to 94%, high eﬃciency and stability, compact size.
High reliability, MTBF up to 400,000 hours.
aPFC active power factor correction, No power grid pollution.
Wide input, multiple outputs and adjustable, applicable for all types of new energy vehicles, pure EV, plug-in hybrid, extended-range…
Automatic conversion for constant current and constant voltage.
Reserved 12V low voltage output module
Monitor unit communication with one single chip.
Equipped with Anti-backﬂow battery,
Isolation between input and output, featuring failure automatic isolation function, insulation resistance ≥ 20MΩ.
Modulated design, works with integrated DC-DC converter (1.8kW or above)

Applications:

New energy vehicle makers
New energy vehicle service providers
New energy vehicle aftermarket companies

Specification:

Model	GPEV-DD102N-L-1A
Rated output power	1KW
Input voltage	40∼200Vdc
Output voltage	14±0.25Vdc
Max. output current	85A
Power factor	≥0.995
Stability voltage precision	≤±1%
Full load efficiency	≥95%
Ripple & Noise	≤200mV
Dymanic response recovery time	2ms
Boot time	<3s
THD	≤3%
Operating temperature	-40~+85ºC
Cooling method	Fan cooling or Hydrocooling
Acoustic Noise	≤55dB
Communication Port	CAN2.0B
Protection class	IP67
Dimensions	200x 160x 35 mm
Protection	Input over/ under voltage, output over voltage,short circuit,over temperature, failure isolation,lighning protection,communication failure
Application	Low speed vehicles

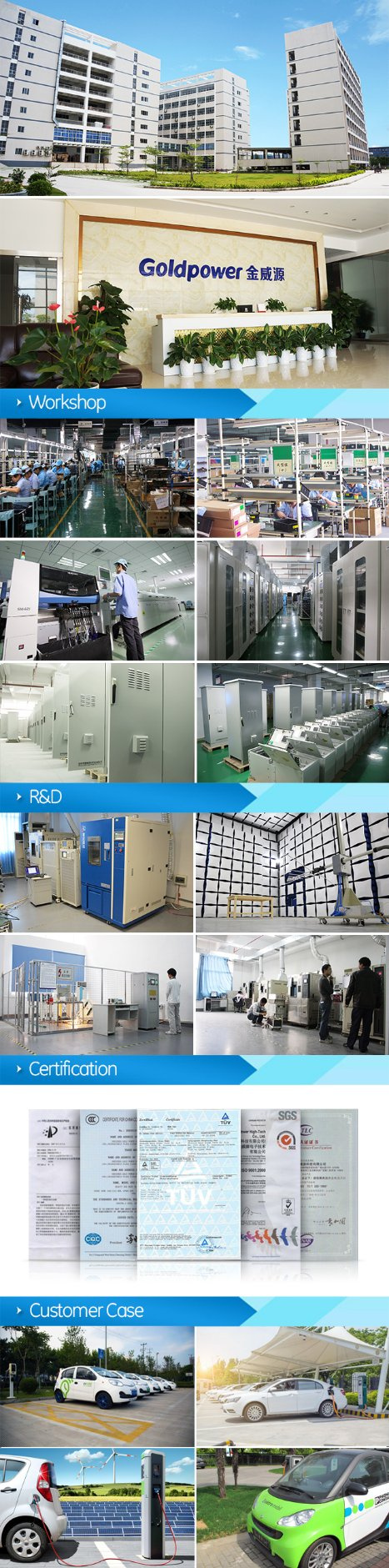

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
