on-Board or Handheld 500W 58V Programmable Charger

Name: on-Board or Handheld 500W 58V Programmable Charger
Brand: all-electronics-online.com
SKU: 821001975
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 30-155/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD500-EVCSA-58
Output Current:	4250~9350mA
Output Voltage:	35~58.8V
Trickle Current Range:	850~4250mA
Trickle Voltage Range:	27~35V
Warrange:	3 Years
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

On-Board or Handheld 500W 58V Programmable Charger

PLD500-EVCSA-58 programmable chargers offer 500W constant current and constant voltage outputs for applications such as electric vehicle and systems with batteries, especially Lithium batteries. Featuring with programmable parameters and charging profile, this series of products provide the system with an optimized charging capability.

Features

Universal AC Input @ 90~305Vac

Ultra-High Reliability

Efficiency up to 95.5%

Ultra-High Power Factor: 0.99@115Vac

Over Voltage Protection

Short Circuit Protection

Over Temperature Protection

Open Circuit Protection

IP67 Ingress Grade

RoHS Complied

3-Year Warranty

Product Specifications

Input Parameters

Input Voltage

Min.

Typ.

Max.

115/230

305

Vac

Input Frequency

Typ.

47~63

Power Factor

@ Full Load, 115Vac

@ Full Load, 230Vac

Min.

Min

0.99

0.95

Input Current

@ Full Load, 115Vac

@ Full Load, 230Vac

Max.

Max

5.22

2.66

Efficiency

@ Full Load, 115Vac

@ Full Load, 230Vac

Typ.

93.5

95.5

58V Charger Output Parameters
Output Current Setting Range	Min. Typ. Max.	4250 8500 9350	mA
Output Voltage Setting Range	Min. Max	35 58.8	V
Trickle Charging Current Range	Min. Typ. Max	850 1700 4250	mA
Trickle Charging Voltage Range	Min. Max	27 35	V

The charging current is programmable between 4250mA and 9350mA. The no load output voltage is programmable with maximal output power of 500W.

The output current peak value is less than 10.2A during start up and shut down with full load and 25ºC, measured with 20MHz bandwidth.

Prtections

Short Circuit Protection	Auto recovery.
Over Voltage Protection	Auto recovery. OVP level programmable at 3~5V above the constant voltage level.
Over Temperature Protection	Auto recovery.
Open Circuit Protection	Auto recovery

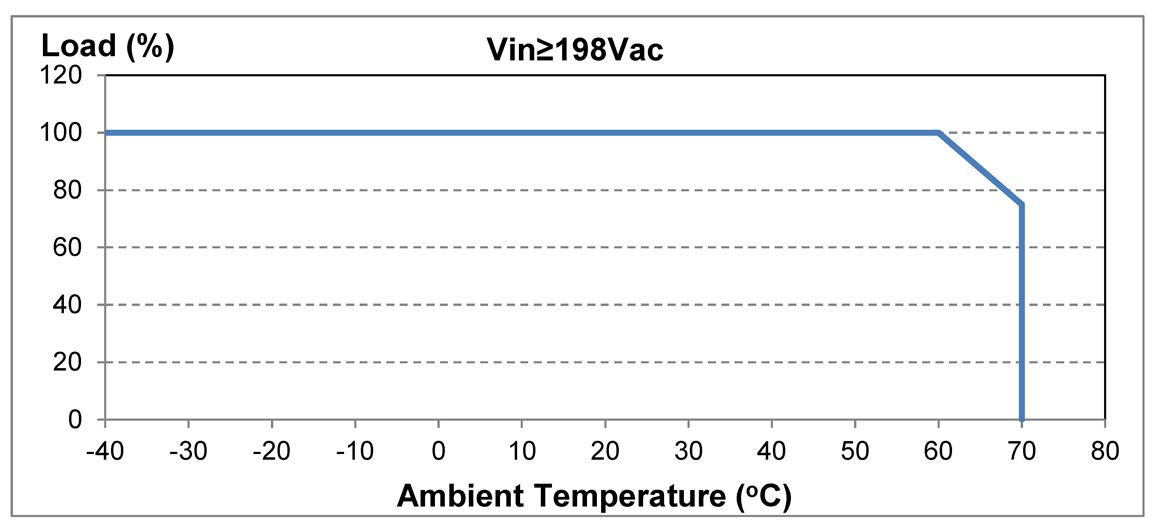

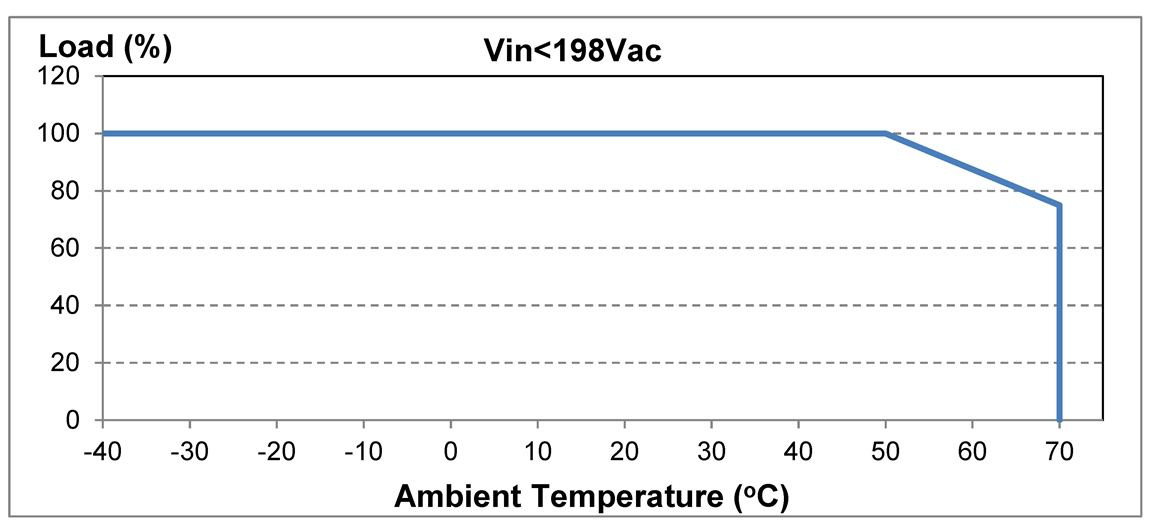

Derating Curves

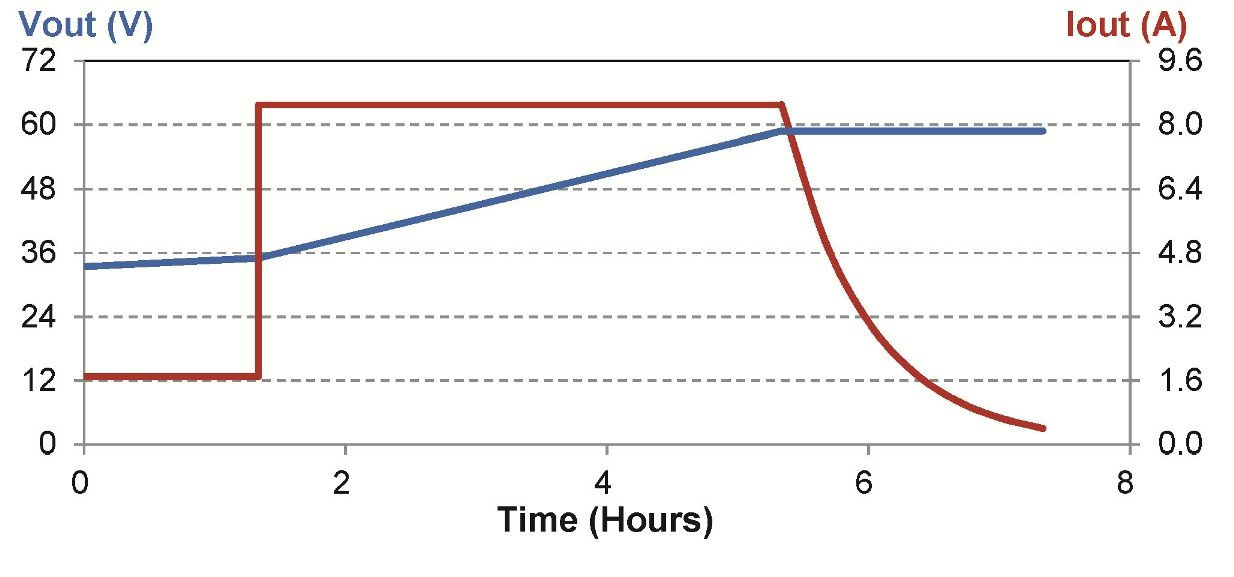

Charging Profile

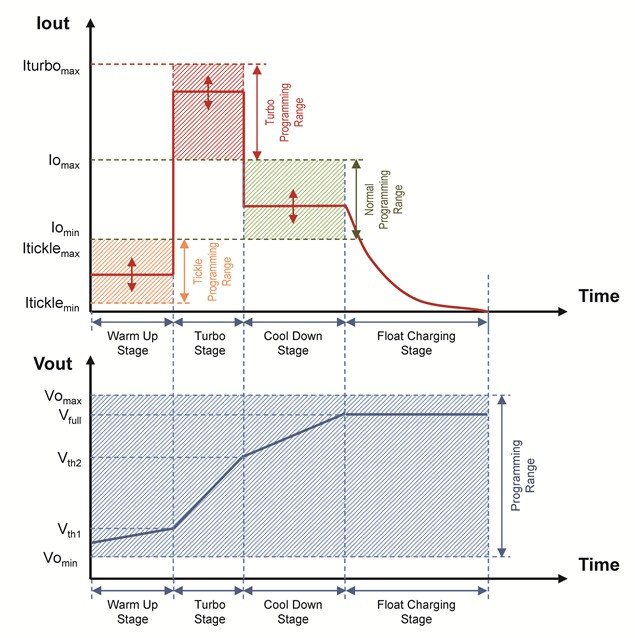

Programmable Profile with "Turbo Charging" TM

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
