on-Board or Handheld Version 600W 36V Programmable Charger

on-Board or Handheld Version 600W 36V Programmable Charger
Price: US $ 30-155/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PLD600-EVCSA-36
Output Current: 7143~15714mA
Output Voltage: 25~42V
Trickle Current Range: 1428~7143mA
Trickle Voltage Range: 20~25V
Warrange: 3 Years
Type: Lithium Ion Battery Charger
Charging Type: Electric Charger
Principle: PWM

Product Description

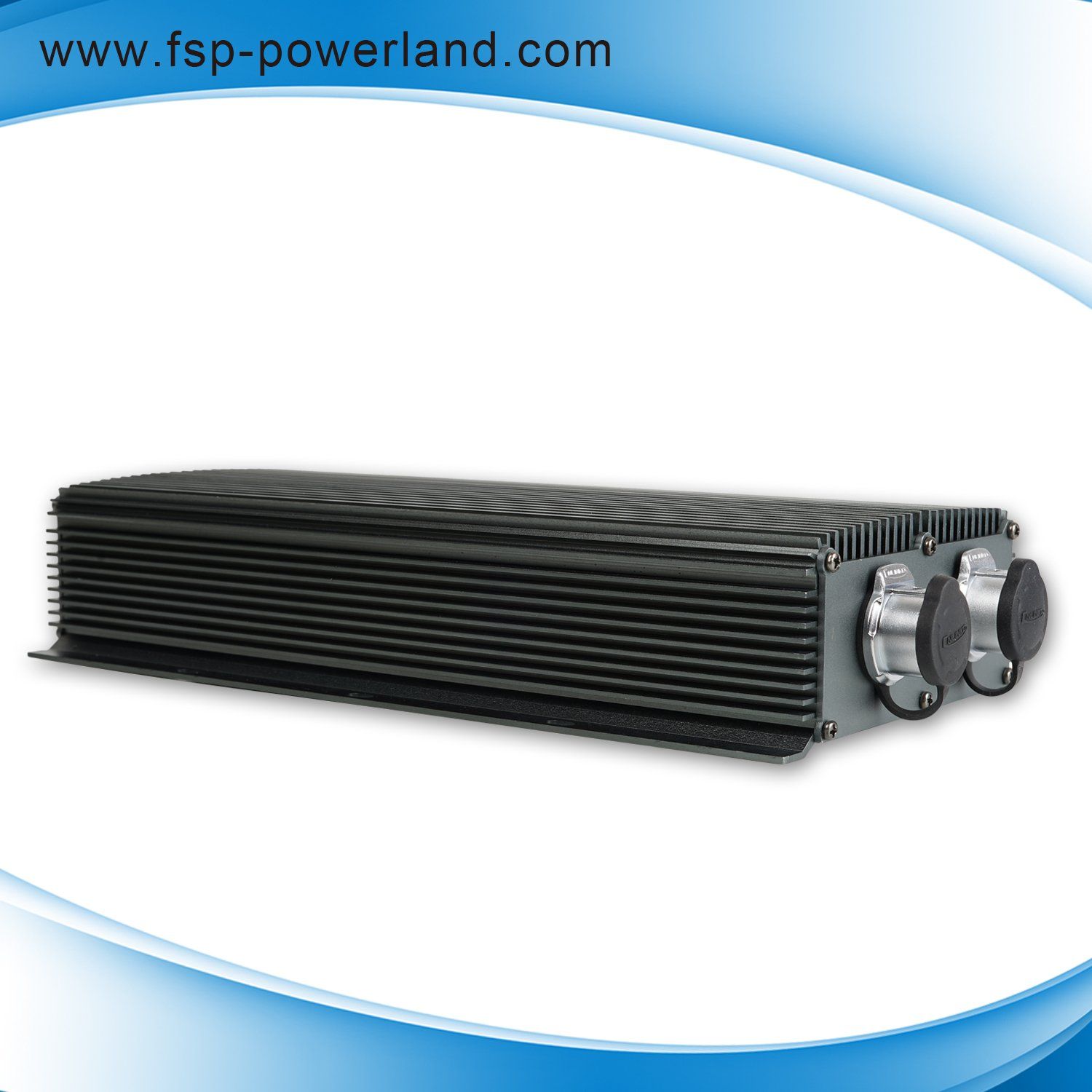

On-Board or Handheld Version 600W 36V Programmable Charger

PLD600-EVCSA-36 programmable chargers offer 600W constant current and constant voltage outputs for applications such as electric vehicle and systems with batteries, especially Lithium batteries. Featuring with programmable parameters and charging profile, this series of products provide the system with an optimized charging capability.

Features
Universal AC Input @ 108~305Vac
Ultra-High Reliability
Efficiency up to 95.5%
Ultra-High Power Factor: 0.99@120Vac
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Open Circuit Protection
IP67 Ingress Grade
RoHS Complied
3-Year Warranty

Product Specifications

Input Parameters

Input Voltage

Min.

Typ.

Max.

90

120/230

305

Vac

Input Frequency

Typ.

47~63

Hz

Power Factor

@ Full Load, 115Vac

@ Full Load, 230Vac



Min.

Min



0.99

0.95



Input Current

@ Full Load, 115Vac

@ Full Load, 230Vac



Max.

Max



6.3

3.2



A



Efficiency

@ Full Load, 115Vac

@ Full Load, 230Vac



Typ.

Typ.



93.5

95.5

%



36V Charger Output Parameters

Output Current Setting Range

Min.

Typ.

Max.

7143

14286

15714

mA

Output Voltage Setting Range

Min.
Max

25
42

V

Trickle Charging Current Range

Min.

Typ.

Max

1428

2857

7143

mA

Trickle Charging Voltage Range

Min.

Max

20

25



V



The charging current is programmable between 7143mA and 15714mA. The no load output voltage is programmable with maximal output power of 600W.

The output current peak value is less than 17.14A during start up and shut down with full load and 25ºC, measured with 20MHz bandwidth.


Prtections

Short Circuit Protection

Auto recovery.

Over Voltage Protection

Auto recovery.

OVP level programmable at 3~5V above the constant voltage level.

Over Temperature Protection

Auto recovery.

Open Circuit Protection

Auto recovery

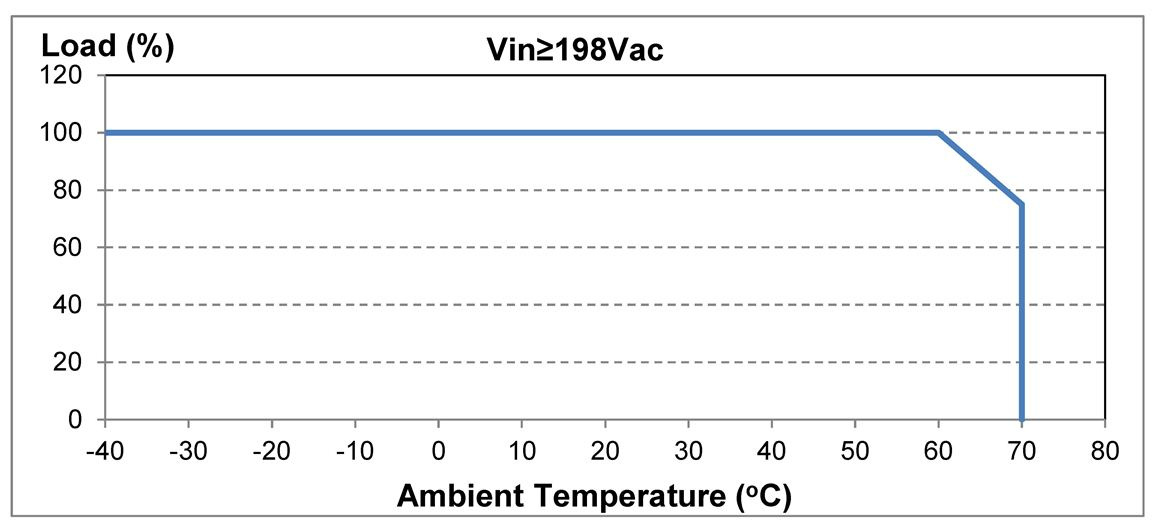

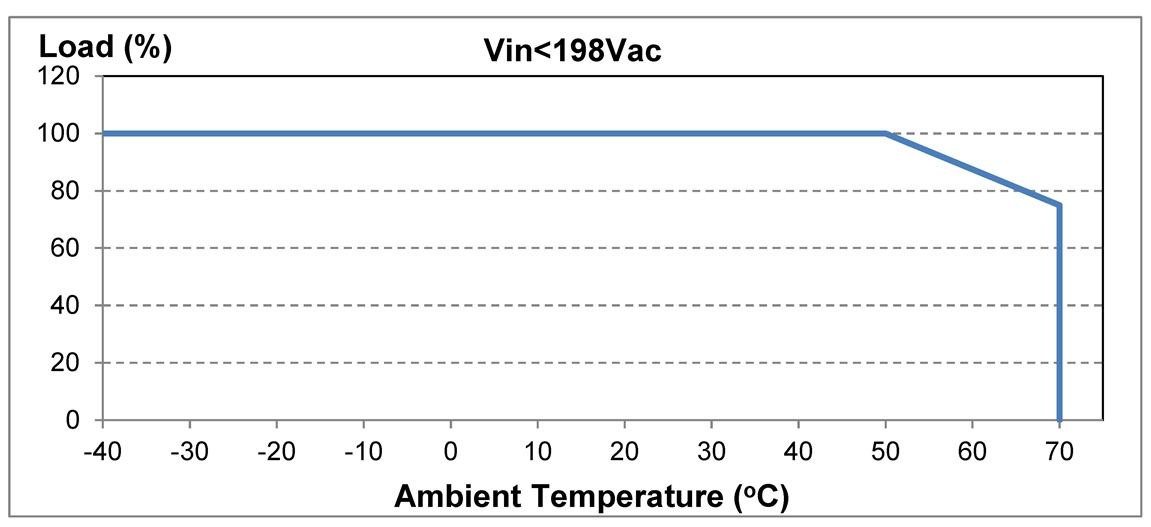

Derating Curves

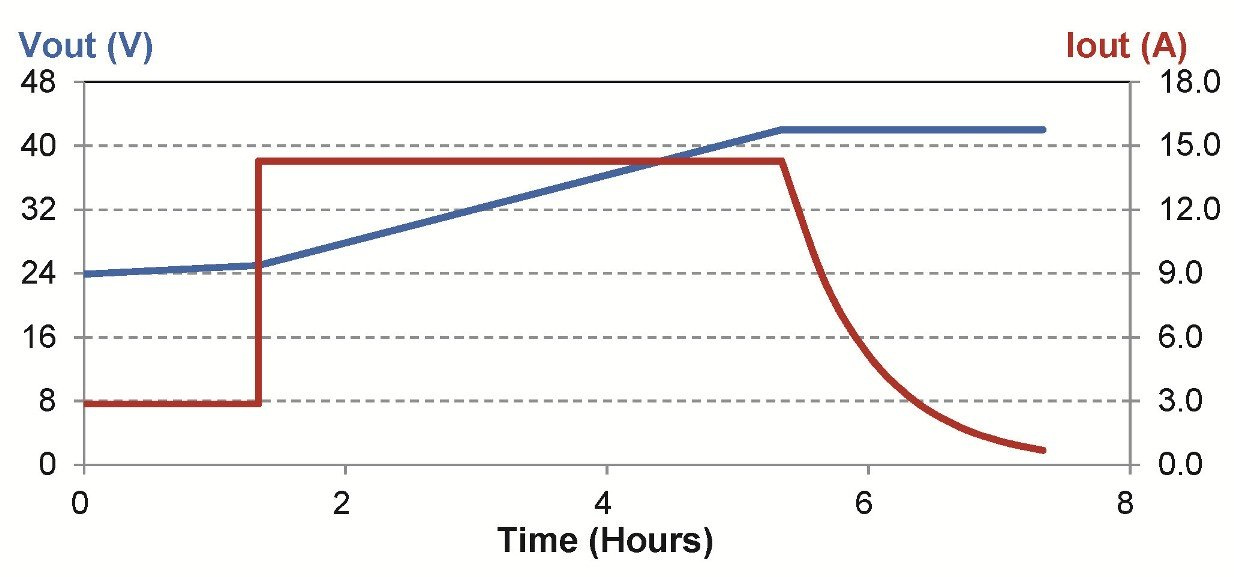

Charging Profile

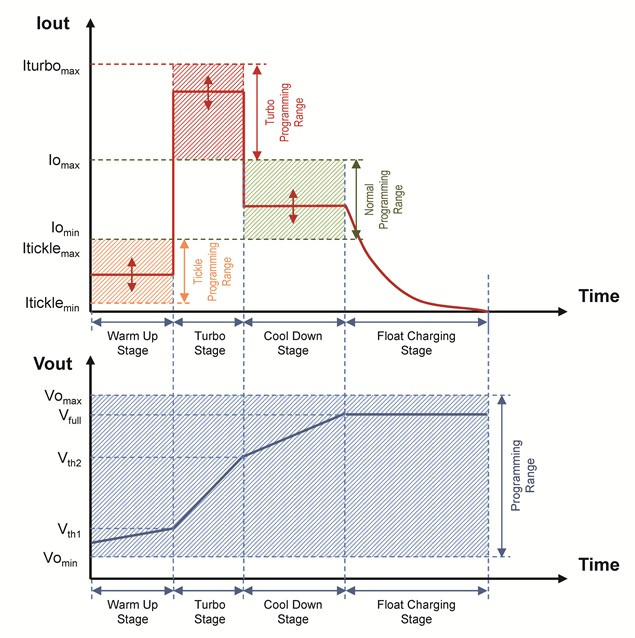

Programmable Profile with "Turbo Charging" TM
