One Core Figure 8 FTTH Drop Optic Fibre Cable

Name: One Core Figure 8 FTTH Drop Optic Fibre Cable
Brand: all-electronics-online.com
SKU: 681960252
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 0.045/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH-1 Messenger
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Using:	FTTH Fiber to The Home Gpon
Strength Member:	FRP or Steel or Kfrp
Shape:	Fig 8
Color:	Black LSZH
Application:	Communication
Certification:	ISO9001
Type:	FTTH Drop Cable
Connection Structure:	Fast Connector
Sheath Material:	LSZH

Product Description

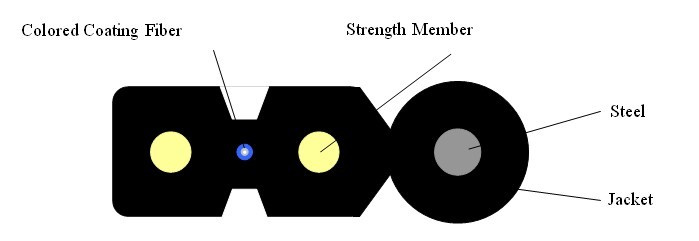

One Core Figure 8 FTTH Drop Optic Fibre Cable

Application
Used as access building cable.
Used in indoor cabbling, especially used for FTTH.

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevants standards;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Leadtime:According to the customer's request.
Design:We customize the cable upon customer's need
Our advantages:High quality,competitive prices and smart operation,fast delivery and excellent Service !
Fiber Parameters

No.	Items			Unit	Specification
					G.657A1
1	Mode Field Diameter		1310nm	μm	9.0±0.4
			1550nm	μm	10.1±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)		1310nm	dB/km	≤0.4
			1550nm	dB/km	≤0.3
10	Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
		1turn×10mm radius @1625nm		dB	≤1.5

Mechanical and Environmental Characteristics

Items	Unit	Specifications
Tension(Long Term)	N	40
Tension(Short Term)	N	80
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-20~+60
Operating Temperature	ºC	-40~+70
Storage Temperature	ºC	-40~+70
