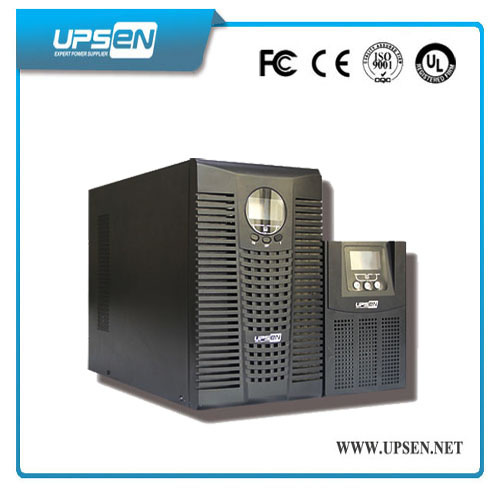

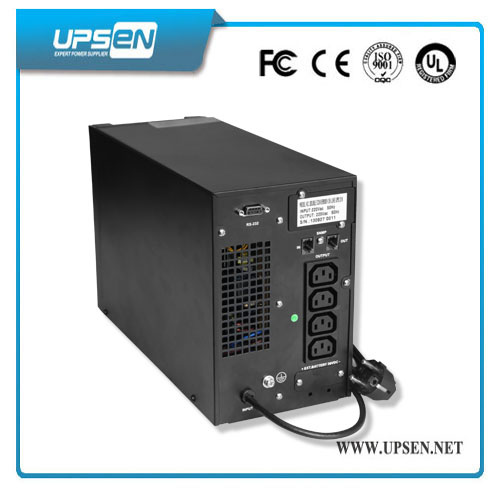

Online UPS High Frequency for PC Power Supply

Name: Online UPS High Frequency for PC Power Supply
Brand: all-electronics-online.com
SKU: 835255665
Availability: InStock
Rating: 4.8 (88 reviews)

Price:	US $ 10-80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Queen Star Series 6-20Kva
Weight:	10-30kgs
Power Factor:	0.99
Transfer Time:	0ms
Phase:	Single Phase
Type:	On-line
Protection:	Over Load/ Current/Voltage, Short Circuit
Application:	Computers, Data Rooms, Communications, Servers
Brand:	Upsen or OEM

Product Description

UPS Quick View
1: High Frequency UPS with single phase 220V / 230V / 240Vac or Three Phase 380 / 400 / 415Vac Input and Output, above 80Kva is High Frequency Modular UPS Model
2: Online UPS with adjustable frequency 50HZ 60HZ through LCD Panel
3: Smart UPS with 0.8 output power factor
4: UPS Power Supply with DSP and IGBT Tech

On Line UPS 1K - 20Kva Key Features
1: True double-conversion on line UPS
2: DSP technology guarantees high performance
3: Output power factor 0.8
4: Active input power factor correction 0.99
5: Wide input voltage range (110-300 VAC)
6: 50Hz/60Hz frequency converter mode
7: Standard backup UPS and long backup UPS in one integrated unit
8: Adjustable battery number from 16 pcs to 20 pcs
9: Adjustable charging current via LCD or software (0.5A~6A)
10: 3-stage extendable charging design for optimized battery performance
11: Maintenance bypass available
12: RJ11, RJ45, SNMP/USB/RS-232 communications

Single Phase HF UPS 1K 2K 3KVA Technical Specification

MODEL		Q1K	Q1KL	Q2K	Q2KL	Q3K	Q3KL
Rated capacity		1KVA/800W		2KVA/1600W		3KVA/2400W
Input	Voltage	115 - 300Vac
	Frequency	40-60Hz / 50-70Hz
	Power factor	0.99
Output	Voltage	220/230Vac(1±2%)
	Frequency	Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
	On-load factor	0.8
	Overload rating	125% overload,1min
Battery	Type	Valve-control lead acid maintenance-free battery
	Back up time	> 11min (half load)	External	>11min (half load)	External	>11min (half load)	External
	Rated voltage	36V		72V		96V
Transfer time		0
Operating environment		Humidity: 20%-90%, Temperature:0^oC-40^oC
Size (WxDxH)mm		350 x 144 x 229		424 x 190 x 328		424 x 190 x 328
Net Weight(kg)		11.5	5.7	22.2	10	26.3	10
*Specification is subject to change without further notice

UPSEN Competitive Advantages
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
