Open Core Current Transformer
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single |
| Type: |
Current Transformer |
Product Description
LMZK open-core current transformer is suitable for current measurement and microcomputer protection of distribution equipments in 10kV AC power system. It is widely used in not only compact fully insulated ring net switch cabinets such as ABB-SafeRing/SafePlus, RM6/SM6, SVS, GA/GE in Germany, FB in France and SS in Korea, but also combined substation and cable take-off boxes because of its small volume, light weight, open feasibility and convenient installment. It is very convenient that the transformer can be directly installed at connected output and input cables.
High quality silicon steel sheet metal slug with very high magnetic permeability as transmit magnetism material are used in the measuring winging of LDZK(J)-10 current transformer, so its core can be divieded and the magnetic circuit loss is little. The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.
The two half cirque of the current transformer encircle the split phase cable tightly and uniformly. It has two configuration formats of single ratio and double ratios and two Installation modes of plastic waistband and stainless steel waistband, and it is applicable to all the 35 mm2-400mm2 and 10kV cables.
The current transformers can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding parameter tables of every type.
All kinds of current transformers of different specifications and parameters can be made according to the client's demands.
Rated frequency: 50Hz or 60Hz;
Rated secondary current: 5A or 1A;
Rated short-time thermal current: 40kA, 1s;
Rated continuous thermal current: 100%In;
Continuous power-frequency voltage 3kV, 1min;
Standards: IEC 185: 1987, GB1208-1997(china), DL/T 725-2000 (china);
P2, S1\S2; P2S2().
P2 primary pole, S1 and S2 secondary poles. P2 and S2 are homonymy poles (subtractive polarity).
Use condition
Ambient temperature: -35.0C-+55.0C,
Average temperature of day: ≤ 40.0C.
Altitude: ≤ 3000m
Air condition: No serious dirtiness in the air.
|
order |
rate |
rate |
(mm) |
weight(kg) |
|
LMZK1-10 |
300-600A |
≤5VA |
φ110×φ50×32 |
0.6 |
|
LMZK2-10 |
50-600A |
≤10VA |
φ110×φ50×52 |
1.2 |
|
LMZK2-10 |
30-600A |
≤25VA |
φ110×φ50×100 |
2.5 |
|
LMZK3-35 |
50-600A |
≤10VA |
φ135×φ66×70 |
3.2 |
|
LMZK3-35 |
30-600A |
≤25VA |
φ135×φ66×140 |
6.5 |
|

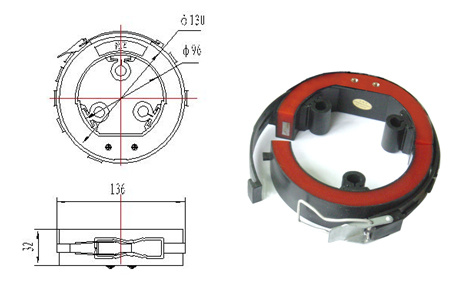

LMZK4-10 |
300-600A |
≤5VA |
φ130×φ96×32 |
0.8 |
Guangzhou Ruihu Electric Co., Ltd. Can Professionally provide all kinds of 10kv to 42kv electrical distribution production and components and some low voltage production. The production informat as below.
10kv up to 36kv Cooper power system Brand pad mounted transformer
Components:
15kv/27kv/38kv/46kv two positions/three postions/four postions loadbreak switch,
15kv/27kv/38kv 250A Elbow,
15kv/27kv/38kv Elbow arrest,
Voltage indicator, fualt indicator,
15kv/27kv/38kv Bay-o-net fuse holder assembly,
15kv/27kv/38kv Single phase and three phase Magnex
15kv/27kv/38kv Dual sensing fuse, ELSP Backup fuse,
15kv/27kv/38kv Loadbreak bushing insert, loadbeak Rotatable feedthru insert,
15kv/27kv/38kv Tap changer switch, insulated protective cap,
FR3 transformer high fire point oil
15kv/27kv/38kv Bushing well;
Low voltage 0.4kv- 1000V capacitor, contractor.
Door lock
Hot stick
Fault indicator
Overhead line indicator,
Test type fault indicator,
Cable mounted fault indicator,
Panel mounted fault indicator(EKL4 EMG brand)
Cooper brand fuse
Hight voltage from 3.6kv up 42kv fuse used RUM(loadbreak with fuse unit) and PT and pad mounted transformer
Low voltage fast speed fuse
***Cooper power system brand cable terminal(12kv up to 42kv)***
IEC separable connector, 250A streight and ELbow, 630A bolt T connector Bushing 250A, 630A. From 12kv up to 36kv(Italy brand)
ANSI separable connector, 15kv\25kv\35kv 200A Series and 600A Series
Cold shrinkable cable terminal
Heat shrinkable cable terminal
Open core current transformer, PT
RMU
Cooper power system brand, ABB, Schneider, ormazabal, Siemens,
and SF6 RMU loadbreak swtich comonent, mechanism, fuse holder, bushing, ground swtich, SF6 express indicator, insulator, voltage indicator,
High voltage capacitor
From 2kv up to 25kv, single phase
100kar, 200kar, 300kar, 334kar, 400kar, 500kar, 750kar, 800kar, 1000kar, 1200kar
Overhead loadbreak, overhead interrupter, reclose.
Vacuum or SF6
Cutout, cutout fuse. Disconnector.
Vacuum contractor, vacuum switchgear(VD4, VS1, VN2-24, CE, VN3-12, VN1-36).
Relay
FUSE
High voltage fuse 12kv-42kv, 3A, 8A, 10A, 15A, 20A, 31.5A, 40A, 50A, 63A, 100A
Low voltage fuse 0.4kv-1000V
NH and RT16 fuse 0.4kv-1000V
And low voltage production.
You are welcome.
