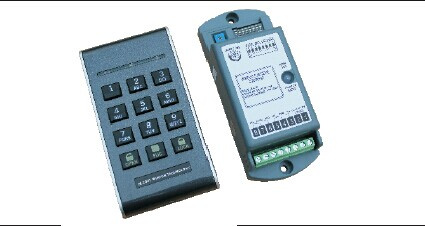

Operation Instruction M-206W Wireless Password Access

Name: Operation Instruction M-206W Wireless Password Access
Brand: all-electronics-online.com
SKU: 695926712
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M-206W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Infrared Sensor Switch
Principle:	Capacitive
Wires:	Two-Wires
Standard:	Standard
Application:	Corridor
Size:	86 Type
Certification:	CE

Product Description

Technical parameters

Power supply: 2*12V (23A) battery

Standby current: dormancy working mode, <=6Μa

Action current: 23Ma

Bit of password: 6 bits

Model of work: press the key FUC

The life of battery: 320days

Distance of emitting: ≥5m

The model of matching code: DIP switch

Emitting frequence: 315MHZ

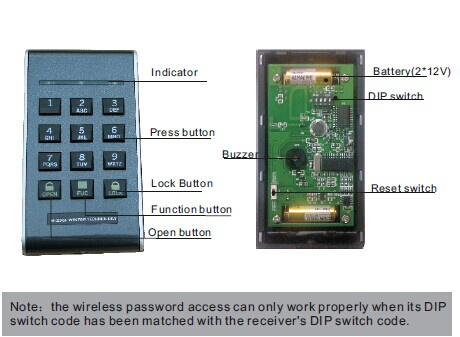

Dial matching:

Open the rear cover, adjust the pass word of DIP SWI TCH match the

same with the wireless receive one. Normally,it should be 4 digits

Normal operate step(M-type):

press"FUC"Key Input the user password (default pass word

is 123456) Confirm by press "FUC"Key the open signal

has been emitted with green light.

Normal operate step(L-TYPE):

Press "FUC"Key Input the user password(the default pass word

is 123456) Confirm by press "FUC"Key green indicator

lighten ,in 15 seconds,press"OPEN "Keyto emit the opening signal

,press"LOCK"Keyto emit the locking signal.

Modify the password:

Press"FUC"Key more than 3seconds the buzzer issue a long

sound Input the original password (6bits), press"FUC" Input

the new password (6 bits) first press"FUC" Input the new pass

word(6bits) once more Press"FUC" the buzzer issue a long

sound the password is modified.

Recov ery the def aul t pas swor d :

If user forget the pas swor d ,you must do the resetting, open the rear

cover Slide the RESET swi tch In30 seconds , the buz zer issue

a long sound the resetting is finished Slide the"reset" swi tch

to nor mal pos ition ,and the pas swor d had been the def aul t pas swor d .
