Opgw Power Optic Fiber Cable for Overhead & Submarine Telecommunication

Name: Opgw Power Optic Fiber Cable for Overhead & Submarine Telecommunication
Brand: all-electronics-online.com
SKU: 801358495
Availability: InStock
Rating: 4.4 (115 reviews)

Price:	US $ 0.5-20/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-OPGW
Tensile Strength:	Over 1000n
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	PE

Product Description

OPGW Power Optic Fiber Cable For Overhead & Submarine Telecommunication

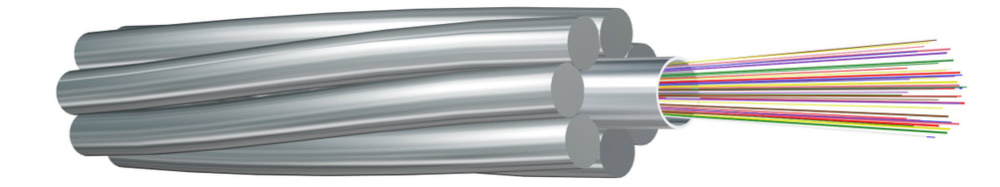

Cable Structure

Description

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Characteristic:

1. High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability .

2. Engineering support supervising and providing its own line of accessories hardware .

3.Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightening

4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv;

5. Apply to the transformation of old lines.

Standards:

ITU-TG.652	Characteristics of a single mode optical fiber
ITU-TG.655	Characteristics of a non-zero dispersion -shifted single mode fibers optical
EIA/TIA598 B	Col code of fiber optic cables
IEC 60794-4-10	Aerial optical cables along electrical power lines-family specification for OPGW
IEC 60794-1-2	Optical fiber cables -part test procedures
IEEE1138-2009	IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines
IEC 61232	Aluminum -Clad steel wire for electrical purposes
IEC60104	Aluminum magnesium silicon alloy wire for overhead line conductors
IEC 61089	Round wire concentric lay overhead electrical stranded conductors .

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
