Optic Fiber Cable GYXTW 24 Core Itu-T G652D of Sm Armored Outdoor

Name: Optic Fiber Cable GYXTW 24 Core Itu-T G652D of Sm Armored Outdoor
Brand: all-electronics-online.com
SKU: 730420875
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 0.11/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW Optical Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Messenger Material:	Steel
Application:	Communication
Type:	Single-mode Fiber
Certification:	Reach
Connection Structure:	Fiber Optic Cable
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH,HDPE,MDPE

Product Description

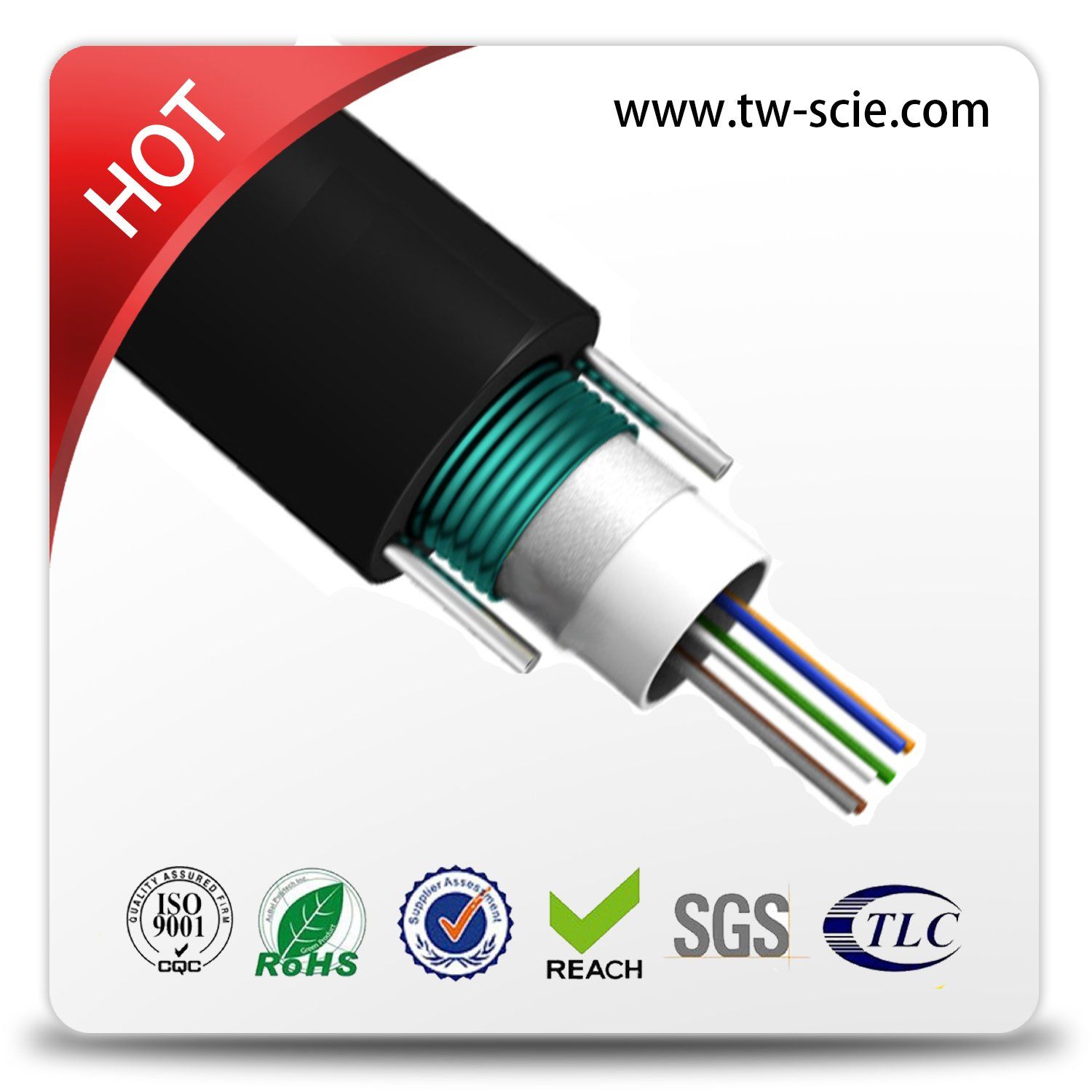

Optic Fiber Cable GYXTW 24 Core ITU-T G652D OF SM Armored Outdoor

Description
GYXTW Outdoor Aerial Optical Fiber Cable with Maximum Fiber Number of 24 Cores
Strength Member: two Steel wire
Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4

Characteristics:
Low dispersion and attenuation
Good mechanical and temperature perfermance
High strength loose tube that is hydrolysis resistance
Special tube filling compound ensure a critical protection of fiber
With small cable diameter, light cable weight
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
* Loose tube filling compound
* 100% cable core filling
* PSP enhancing moisture-proof

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
(+20°C)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km

Technical Parameters

Cable Type	Fiber Count	Tubes	Cable Diameter	Cable Weight	Tensile Strength	Crush Resistance	Bending Radius
			Cable Diameter	Cable Weight	Long/Short Term	Long/Short Term	Static /Dynamic
			mm	kg/km	N	N/100mm	mm
GYXTW-2~12	2~12	1	9	100	1000/3000	1000/3000	10D/20D
GYXTW-14 ~24	14~24	1	9	120	1000/3000	1000/3000	10D/20D

Tag: fiber optic cable,fiber optic cabling

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
