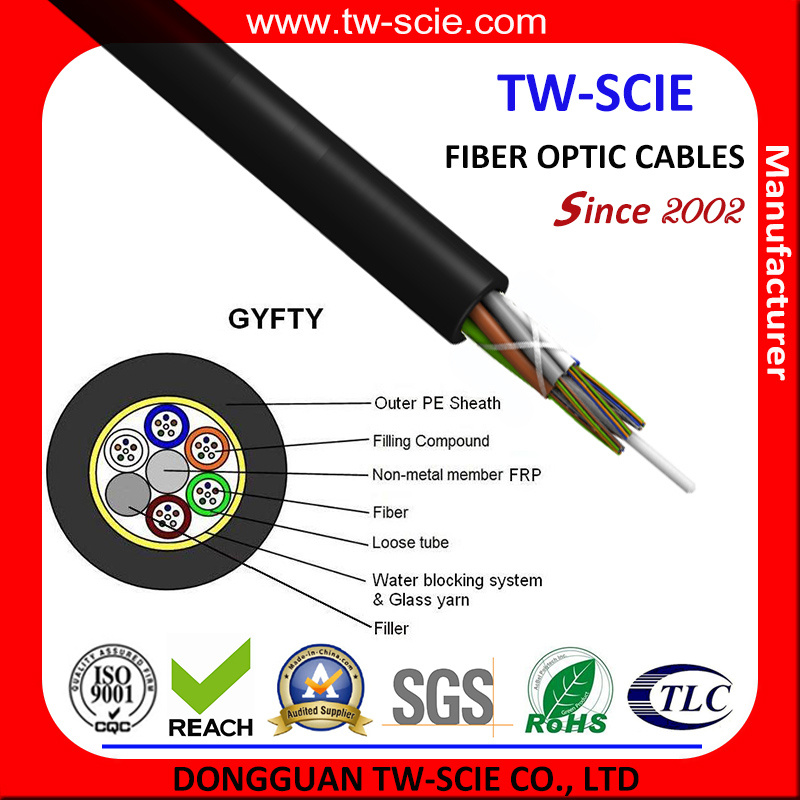

Optic Fiber Cable Non-Metallic GYFTY for Outdoor Use
| Price: |
US $ 10/Meter |
| Trade Terms: |
FOB |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYFTY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Central Stranding Member: |
Steel Wire or FRP |
| Installation Style: |
Aerial |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiermt |
| Second Armour Material: |
Corrugated Aluminium Tape |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
Product Description
·Description

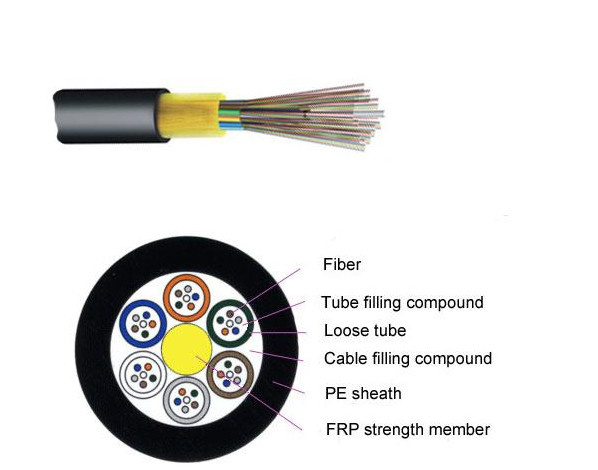

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
|
·Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
·Standards
GYFTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
·Optical Characteristics
|
| | G.652 | G.655 | 50/125μm | 62.5/125μm | Attenuation
(+20ºC) | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km | | @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km | | @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | | | @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | | | Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km | | @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km | | Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA | | Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
|
·Technical Parameters |
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter
mm | Cable Weight kg/km | Tensile Strength
Long/Short Term N | Crush Resistance
Long/Short Term
N/100mm | Bending Radius
Static
/Dynamic
mm | | GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D | | GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D | | GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D | | GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D | | GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D | | GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D | | GYFTY-2~6 | 2~6 | 1 | 6 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-8~12 | 8~12 | 2 | 5 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-14~18 | 14~18 | 3 | 4 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-20~24 | 20~24 | 4 | 3 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-26~30 | 26~30 | 5 | 2 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-32~36 | 32~36 | 6 | 1 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-38~42 | 38~42 | 7 | 0 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-44~48 | 44~48 | 4 | 2 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-50~60 | 50~60 | 5 | 1 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-62~72 | 62~72 | 6 | 0 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D | | GYFTY-2~6 | 2~6 | 1 | 7 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-8~12 | 8~12 | 2 | 6 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-14~18 | 14~18 | 3 | 5 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-20~24 | 20~24 | 4 | 4 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-26~30 | 26~30 | 5 | 3 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-32~36 | 32~36 | 6 | 2 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-38~42 | 38~42 | 7 | 1 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-44~48 | 44~48 | 8 | 0 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-50~60 | 50~60 | 5 | 2 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-62~72 | 62~72 | 6 | 1 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-74~84 | 74~84 | 7 | 0 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D | | GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
|
| Storage/Operating Temperature : -40ºC to + 70ºC |
