Optic Fiber Cable with PE Sheath 12 Core

Prod Model:	GYXTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gyxtc8s:	Figure 8 Fiber Cable
Balck PE:	HDPE
Color:	Customized
Fiber Type:	Yofc Corning
Fiber Cores:	12c
Application:	Communication
Certification:	ISO9001

Product Description

Optic Fiber Cable with PE Sheath 12 Core
Product Description
GYXTC8S Aerial Self-support Optic Fiber Cable
---------------------------------------------------------------
Low attenuation coefficient and chromatic dispersion, insure cable's optics transmission characteristics.
Proper design, precise fiber excess length control and distinct stranding process render the cable excellent mechanical and environmental characteristics.
Steel tape-PE sheath makes cable have nice moisture resistance performance and crush resistance performance
Small cable diameter, light cable weight, self-supporting, easily to install

Specifications
1. SM fiber G652D, Steel tape
2, High Quality
3, Factory price fiber cable
4. UTxxx-SM-08/GYXTC8S

Use:
For hanging on supports of communication lines and electrical power supply lines, urban electric transport lines, between houses and other objects.

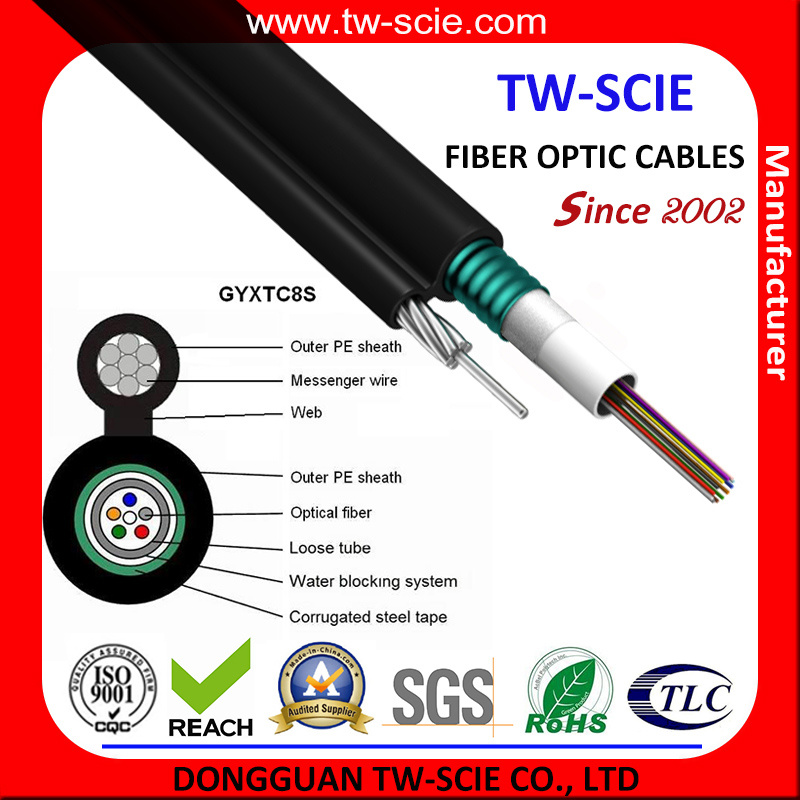

Design:
Cable of « 8» Type(with an offset bearing element) with one optical module, which can contain up to 24 optical fibers. Armour layer is made from steel goffer band providing additional protection from environmental impact and protection from rodents at points of entry of cable into building or structure. External coating is made from UV-stabilized polyethylene of high density. Carrying strength element is made from zinc-coated twisted wire rope, with a thickness of 3.0 or 3.6 mm, which provides for cable a high resistance to longitudinal stress.

Applications
Long-distance communication system,
Local trunk line,
CATV & computer networks system

Amount of fibers, pcs.		2 - 12	14 - 24
Diameter of optical module, mm		3.0	3.6
Diameter of steel carrying wire(twisted from braiding), mm		3.0 (7 x 1.0mm) or 3.6 (7 x 1.2mm)
Outer coating thickness, mm *		1.5
Width × heigth of cable, mm *		7.3   ×   14.2	7.9   ×   14.8
Cable mass (for a wire rope 3.6mm), kg/km  **		114 (136)	123 (145)
Min. bending radius, constant/dynamic		10 / 20 cable diameters
Max. tensile force (for a wire rope 3.6mm), N		4000 (6000)
Max. compressive load (short-term/long-term), N/100mm		1000 / 300
Max. hanging length (sag 1-2% / 2-3%), m ***		100 / 130 (120 / 150)
Allowable temperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C
