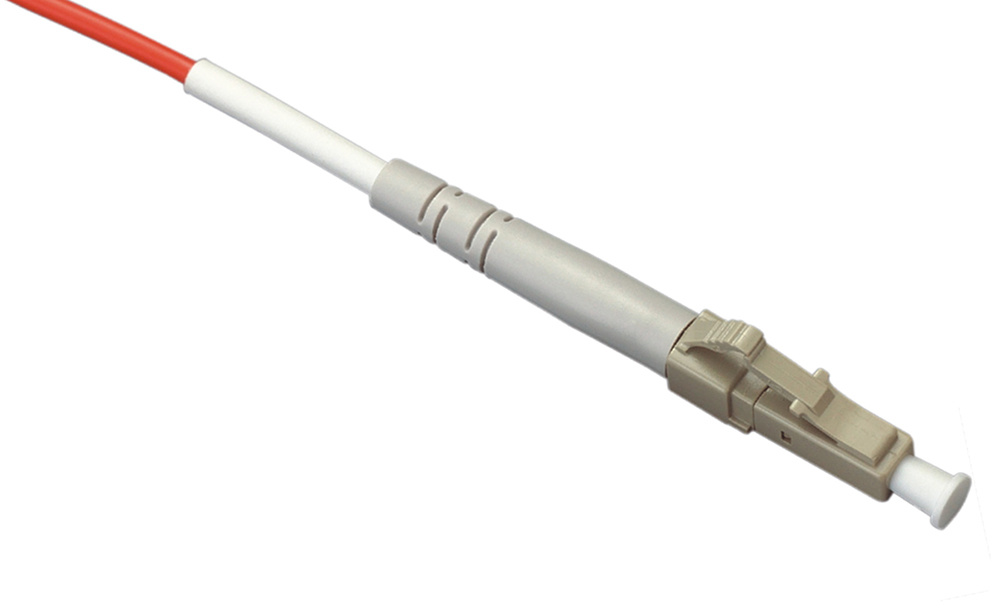

Optic Fiber Patch Cord of LC/Upc-LC/APC 3 Meters

Prod Model:	LC Patch Cord
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheath Color:	Customized
Connector Type:	LC/Sc/FC/St...
Fiber Cores:	1-2 Core
Size:	2.0/3.0
Connection Structure:	LC
Certification:	ISO9001
Type:	Optical Patch Cord
Sheath Material:	PVC or LSZH

Product Description

Optic Fiber Patch Cord of LC/UPC-LC/APC 3 Meters


Product Description

Singlemode or Multimode LC-LC fiber optic patch cord
Specification:
1.Type: LC-LC
2.Polishing: PC (APC/UPC)
3.Insertion Loss: ≤0.2 dB
4.Return Loss: ≥50dB
5.Exchangeability: ≤0.2Db
6.Repeatability: ≤0.2dB/1000times
7.Operation Wavelenghth: 850nm,1310nm,1550nm
8.Operating Temperature: -30 °C ~ +75 °C
9.Storage Temperature: -40 °C ~ +85 °C
10.Cable OD: 3.0mm/2.0mm/0.9mm
11.Cable Material: OFNR,LDZH&Polarization maintaining
12.Mode: G652D; G657A; g OM1; OM2; OM3; OM4...
13.Fiber Cable Type: PVC/LSZH 2.0mm or 3.0mm
14.Spec: single core , dual - core , the 4 core , 6 cores , 12 core . . . etc(according to your requests)
15. the joint selection : FC,SC,ST,LC,MU,MTRJ,E-2000 and other
16. length : The length of patch cord is depend on user's requirements


Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80°C	From -40 to + 80°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

Feature:
1.Low insertion loss and hight return loss.
2.Excellent repeatability and changeability
3.Simplex and duplex available.
4.With ceramic fettules.
5.PVC&LSNH cable option.
6.Optical performance 100% factory test.

Applications:
Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation
Company Information


Products
We manufacture Fiber Optic System products as follows:
Active & Passive Components
Passive components
Patch cords
Pigtails
Splitter
Termination boxes
Patch panel/ODF

Active equipment
Fiber converters
SFP/GEBIC transceivers
Receivers

Why you choose us ?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent  Datolink or your own brand box/roller design and package
4.Stirictly conform to ISO, Rohs CE certificates
5.Long time experience at domestic and export market
Welcome you visit our factory !
Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us!
