Optic Fiber SC/PC mm Simplex Cable Fiber Optical Pacth Cord

Prod Model:	SC/PC
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	RoHS
Brand:	Fiber Come

Product Description

Product Description

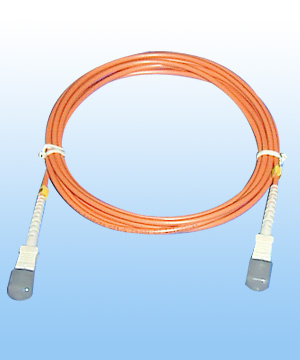

Optic Fiber SC/PC mm Simplex cable Fiber Optical Pacth Cord

1. Cat5e/Cat6/Cat7 Patch cable
2. Passed Fluke test



Features
.  Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
.  All dielectric construction with aramid yarn for physical protection and mechanical strength.
.  Double LSZH sheath cable gives more excellent tensile strength,
    mechanical, rodent, ultraviolet and environmental protection.

Mechanical, Environmental & Material Data

1. Feature v Low insertion loss and high return loss; v Good repeatability & interchangeability; v PC, UPC, APC polishing; FC, SC, ST, LC, MU connector; v Suitable for high-speed, high-capacity optical fiber transmission system; v Provide single mode/ multimode patch cord and pigtails; v Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm; v Length/Type: according to customers' demands.

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

Optic Fiber SC/PC mm Simplex cable Fiber Optical Pacth Cord











2. Application

Ø Optical fiber communications system;

Ø Optical fiber access networks;

Ø Optical fiber CATV;

Ø Optical fiber test equipments;

Ø Optical fiber data communication;

1.Technical parameters

No.	Item	Unit	Single Mode			Multi Mode
1	Insertion loss	dB	≤0.3			≤0.3
2	Return loss	dB	PC	UPC	APC	/
			≥45	≥50	≥55	≥45
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	ºC	-40~85
6	Optical Cable Diameter	mm	Ф0.9,Ф2.0,Ф3.0



2.3D Specification

Item	PC Polishing		APC Polishing
Ferrule Diameter(mm)	2.5	1.25	2.5	1.25
Radius of Curv(mm)	10~25	7~25	5~15
Fiber Height(um)	-100~50		±50
Apwex Offset(um)	±50		±50



Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC	MU	MU	DN	DIN
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC	MT	MTRJ	E2	E2000

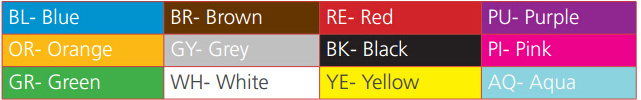

Color Code

Note:Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
