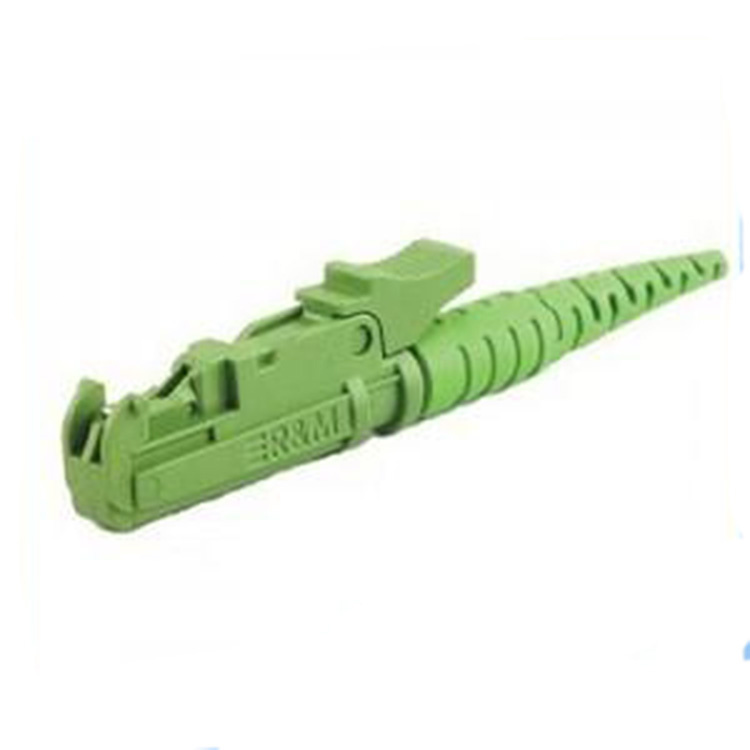

Optical E2000 Fiber Optic Connector for FTTH CATV LAN Network

Name: Optical E2000 Fiber Optic Connector for FTTH CATV LAN Network
Brand: all-electronics-online.com
SKU: 828393805
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	US $ 0.5-0.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	e2000
Transmission Medium:	Single-Mode
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Structure:	E2000
Application:	Tester
Connector Type:	E2000
Brand:	Tti

Product Description

Optical e2000 fiber optic connector for FTTH CATV LAN network

Fiber Optic Connectors are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard. The performance of the Fiber optic connector has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.

Detailes

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85

Applications

1. FTTH

2. WAN

3. LAN

4. Telecommunication

5. CATV

6. Optical Distribution Frame

Features

1. Low insertion loss and back reflection loss

2. Ferrule end surface pre-domed

3. Boots in a variety colors

4. Telcordia style boots

5. Free-floating ceramic ferrule

6.The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit. 7.Clips are avaliable for SC and LC duplex connector. 8.PC and APC, UPC are availiable.

9. Good exchange ability and good durability

Specification:

Material: Zirconia (ZrO2) ferrule
Insertion loss: <0.2dB
Return loss: >65dB
Service life: >1000 times
Temperature range: -40° ~85°
Features:
Single mode, multimode available
All connectors with dusty cap
Compliant with RoHS requirement
Application:
Telecommunication
CATV
LAN (including FITL, FTTH and FTTD)
Data network

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
