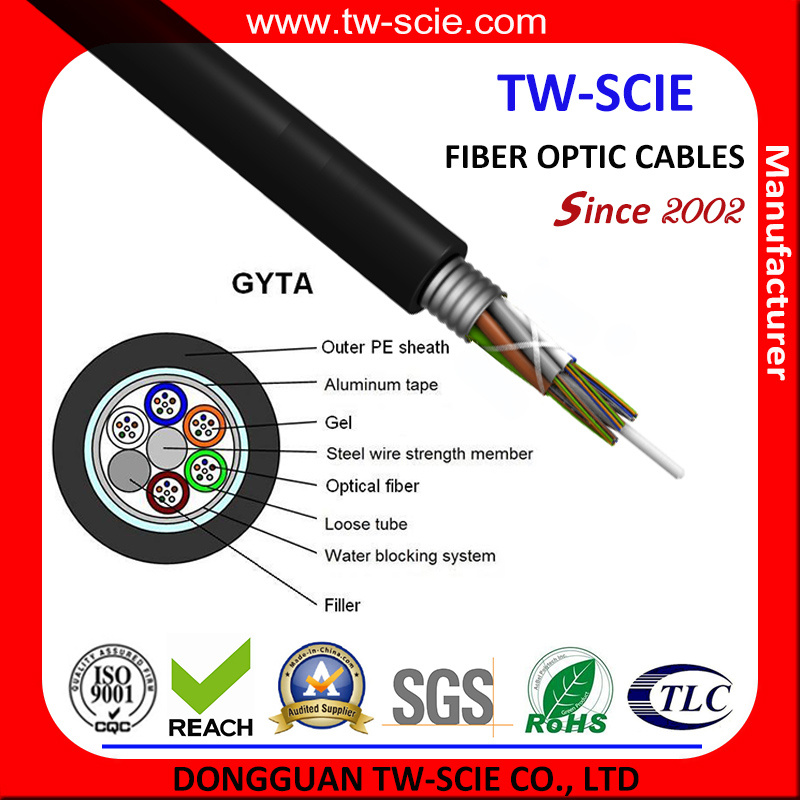

Optical Fiber 12 Core Sm Single Jacket Duct & Aerial Cable

Prod Model:	GYTA fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Duct & Direct Buried
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE /Lszh
Outer Sheath Color:	Black
Armour Material:	Corrugated Aluminium Tape
Central Stranding Member:	Steel Wire or FRP
Color Of Fiber And Loose Tube:	Red,Black,Yellow,Violet,Pink,Aqua
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,
Application:	Fiber Optic Cable
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable

Product Description

Optical Fiber 12 Core Sm Single Jacket Duct & Aerial  Cable

Product Description
Our Advantage
1.Free sample, short time delivery.
2.Good quality, competitive price
3.UL, CE ,ROHS,TLC,CCC, CTI,SGS,ISO9001 certificates are available.
4.OEM is available.

Description

Cable Type	GYTA-48
Fiber Count	48
Tubes	4
Fillers	2
Cable Diameter(mm)	12
Cable Weight (kg/km)	113
Tensile Strength (Long/Short Term N)	600/1500
Crush Resistance (Long/Short Term N/100mm)	300/1000
Bending Radius (Static/Dynamic mm)	10D/20D


Characterisics

1.Excellent mechanical and temperature performance.Critical protection to fibers.
2.Excellent ultraviolet prevention with PE sheath.
3.Excellent crush resistance and flexibility.
4.Special tube filling compound ensure a critical protection of fiber.
5.The following measures are taken to ensure the water blocking performance of the cable:
   a.FRP used as the central strength member
   b.Special water-blocking filling compound in the loose tube
   c.100% cable core filling


NOTE

1.Only a part of cables are listed in the table. Cables with other spans can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.


Packaging & Shipping

1. Standard Packaging
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: ADP or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
