Optical Fiber 144 Core Cable with Stranded Tube GYTY53

Name: Optical Fiber 144 Core Cable with Stranded Tube GYTY53
Brand: all-electronics-online.com
SKU: 735688255
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTY53 optic fiber cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Duct & Direct Buried
Brand Name Of Fiber:	Corning ,Yofc,Draka
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE /Lszg
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Central Stranding Member:	Steel Wire or FRP
Color Of Fiber And Loose Tube:	Red,Black,Yellow,Violet,Pink,Aqua
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	PE

Product Description

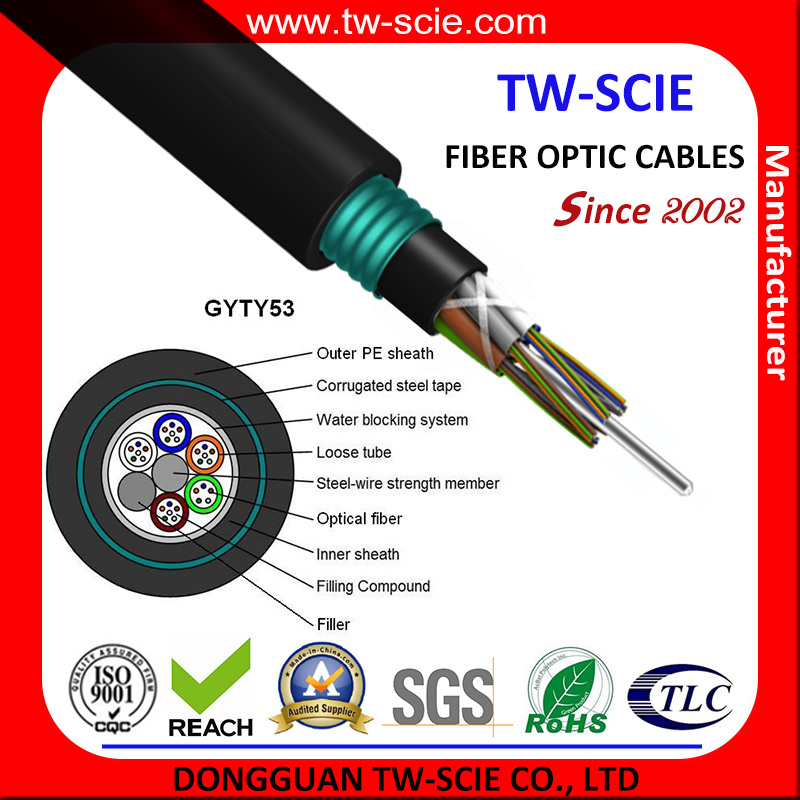

Optical Fiber 144 Core Cable with Stranded Tube GYTY53

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2 ~ 36	12.7	173	6	6	3000	1000	3000	1000
38 ~ 72	13.9	211	12	6	3000	1000	3000	1000
74 ~ 96	15.5	251	12	8	3000	1000	3000	1000
98 ~ 120	17.2	299	12	10	3000	1000	3000	1000
122 ~ 144	18.8	345	12	12	3000	1000	3000	1000
>144	Available upon customer's request

Application:
These corrugated steel tape and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

Features:
1. Up to 288 fibers.
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620
