Optical Fiber Cable GYFTY for Duct or Aerial Application
| Price: |
US $ 0.1-0.5/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GYFTY |
| Outer Sheath Color: |
Black |
| Central Stranding Member: |
FRP |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Armour Material: |
Kevlar Yarn |
| Installation Style: |
Aerial |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiermt |
| Cable Type: |
GYFTY |
| Fiber Type: |
G652D |
| Loose Tube: |
PBT with Jelly |
| Stranding Type: |
Sz |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Optical Fiber Cable |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE |
Product Description

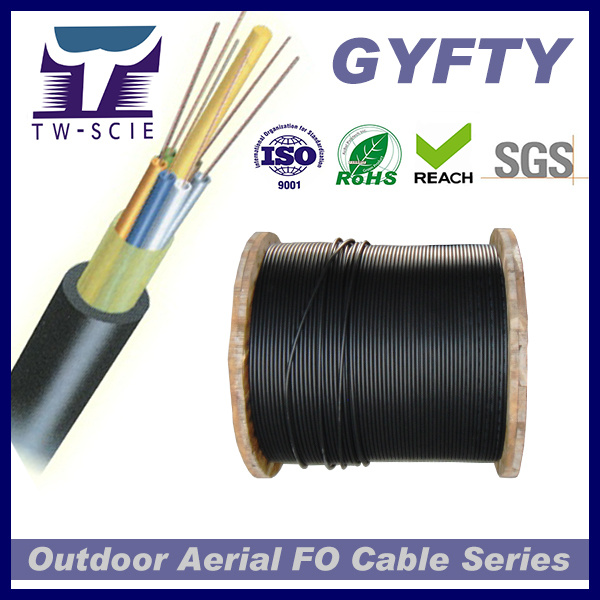

Optical Fiber Cable GYFTY for Duct or Aerial Application
GYFTY Outdoor Sm 9/125 unarmored Fiber Cable
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
General Specifications| Cable Type | GYFTY |
| Fiber Type | G652D |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40ºC to 70ºC |
Fiber Specifications| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber |
| Optical Characteristics | | | |
| Mode field diameter (MFD) | 1310nm
1550nm | 9.2±0.4
10.4±0.8 | µm
µm |
| Cut-off wavelength (λcc) | | ≤1260 | nm |
| Attenuation coefficient | 1310nm
1383nm
1550nm | <0.35
<0.35
<0.22 | dB/km
dB/km
dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | | ≤0.05 | dB |
| Dispersion coefficient | 1288~1339nm
1271~1360nm
1550nm | ≤3.5
≤5.3
≤18 | Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km) |
| Zero dispersion wavelength | | 1300~1324 | nm |
| Max zero dispersion slope | | ≤0.093 | Ps/(nm2.km) |
| Group index of refraction (typical value) | 1310nm
1550nm | 1.466
1.467 | |
| Geometric characteristic | | | |
| Cladding diameter | | 125.0±1.0 | µm |
| Core/cladding concentricity error | | ≤0.8 | µm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245.0±10 | µm |
| Cladding/coating concentricity error | | ≤12.0 | µm |
| Coating non-circularity | | ≤8 | % |
| Diameter of colored coating | | 250.0±15 | µm |
| Mechanical characteristic | | | |
| Curling (radius) | | ≥4 | m |
| Proof stress | | >0.69 | Gpa |
| Coating strip force | Average value
Peak value | 1.0-5.0
1.3-8.9 | N
N |
| Dynamic stress corrosion susceptibility parameter (nd value) | | ≥20 | |

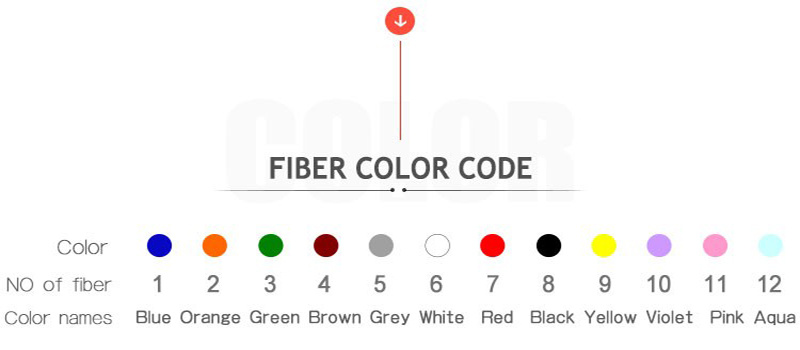

Standard Color Identification of Fiber| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Design| Item | Description |
| Model No | GYFTY |
| 1. Fiber count | 96 | 72 | 48 | 24 | 12 |
| 2. Cable Diameter(MM) | 11.2±0.2 | 9.6 | 9.0 | 7.8 |
| 3. Cable Weight(KG) | 97 | 81 | 65 | 50 |
| 4. Central Strength member | |
| -Material | FRP |
| -Diameter | 2.0mm | 1.4mm |
| -PE sheath | Yes | No |
| 5. Loose Tube | |
| -Material | PBT |
| -Outer diameter | 2.0 mm | 1.4mm |
| -Thickness | 0.3mm |
| -Type of filling compound | Jelly |
| -No. of loose tube | 8 | 6 | 4 | 2 | 3 |
| 6. Filler | |
| -Material | PP |
| -Outer diameter | 1.6mm |
| -No. of fillers | 0 | 0 | 1 | 3 | 2 |
| 7. Tube Assembly | |
| -Tube Layout | 1+8 | 1+6 | 1+5 |
| -Stranding type | SZ |
| 8. Water-blocking system | |
| -Material | Filling compound |
| 9. Core wrap | |
| -Material | polyester tape |
| 10. Outer Sheath | |
| -Material | PE |
| -Thickness | 1.8mm±0.2mm |
| 12. Sheath marking | |
| -Type of marking | Laser printing |

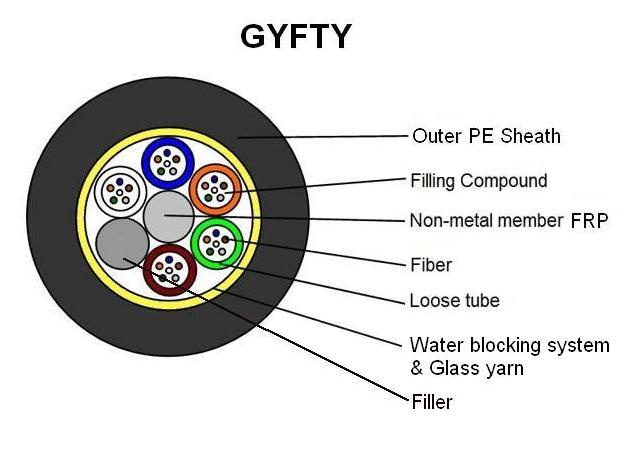

Cable Core
The loose tubes are stranded around the central strength member utilizing SZ. SZ stranding wraps the tubes in one direction for several turns, then in the other direction.
Central Strength Member
The central strength member is made of FRP. It provides both tensile and anti-buckling strength to the cable.
Loose Tube
Optical fibers are housed in jelly filled tube. The tube is manufactured with industry standard PBT. It is colored for easy identification according to the scheme shown above.
Water Blocking Material
Filling compound, the water blocking material between the loose tube and the sheath protect cable from water intrusion.
Outer Jacket
A black Medium density polyethylene jacket is extruded over the cable core and corrugated steel tape armor as the sheath.
Cable Sheath Marking
Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer's requirements.
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
For more details please feel free to contact me. Any of your inquiry will reply within 24hrs.
Alina SS
Mob:+86-13480750182
Tel:+86-755-23208570 Ext 8002 Fax:+86-755-23578277
