Optical Fiber Cable GYTA

Name: Optical Fiber Cable GYTA
Brand: all-electronics-online.com
SKU: 834492585
Availability: InStock
Rating: 4.8 (22 reviews)

Price:	US $ 1.1-3.5/Meter
Min Order:	100000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	MTRJ
Certification:	CPR
Sheath Material:	PE
Core:	12-24
Brand:	Cx-Cable

Product Description

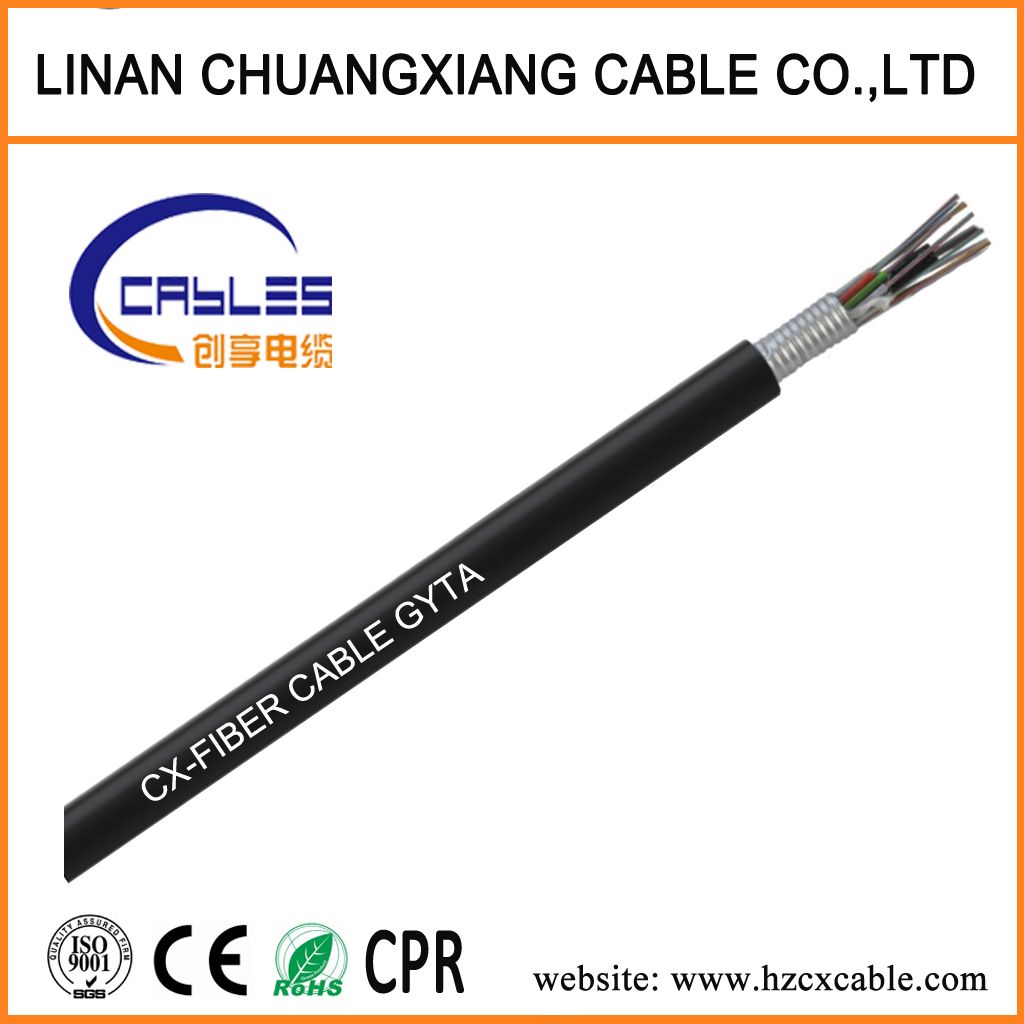

Optical Fiber Cable GYTA

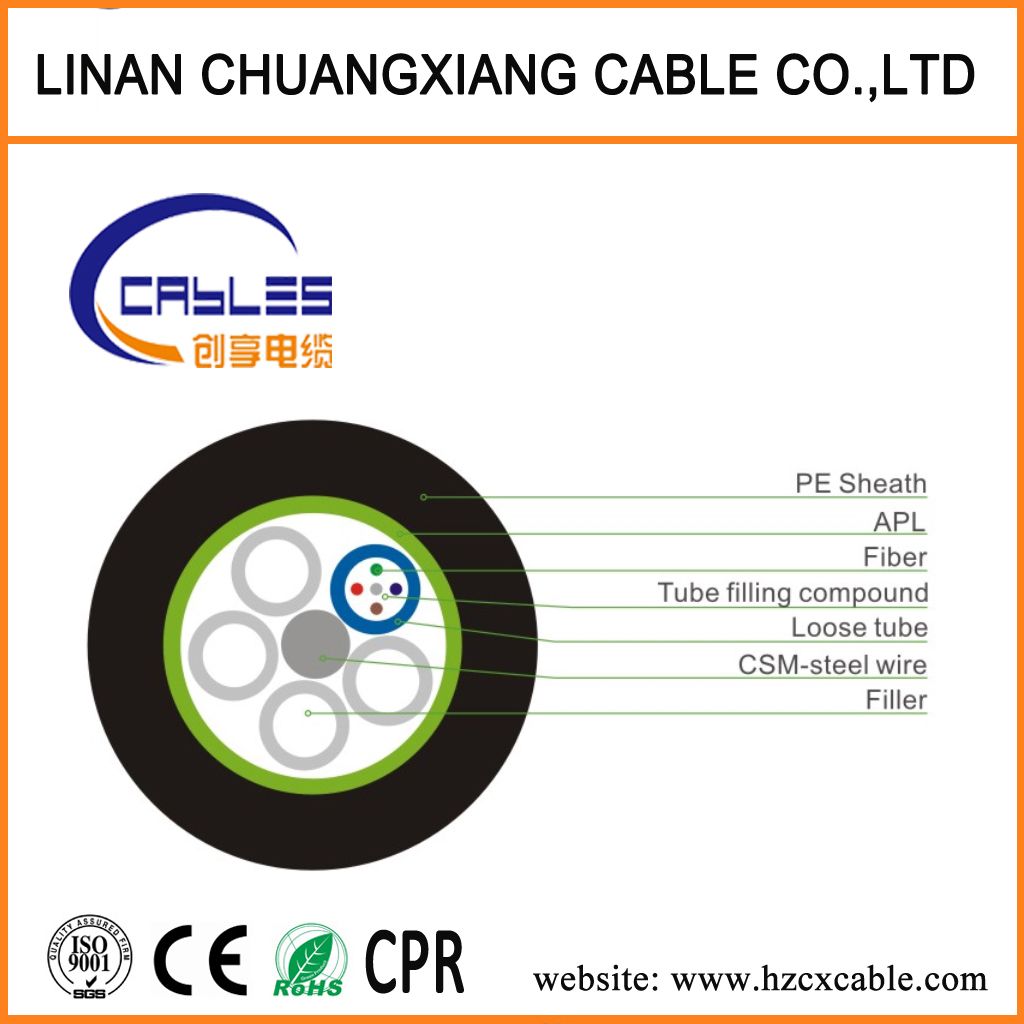

Construction:
The fibers are placed in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A steel wire sometimes sheathed with PE for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Cable structure and parameter

SN	Item	Unit	Value
1	No. of fibers	count	6
2	No. of fibers per tube (max)	count	6
3	No. of elements	count	1
4	Tube diameter	mm	1.7
5	Outer sheath thickness	mm	1.8
6	Cable diameter	mm	9.3
7	Cable weight	kg/km	90
8	Short term tension	N	1500
9	Short term crush	N/100mm	1000
Note: Mechanical sizes are nominal values.

Characteristic of Optical Cable

Mechanical characteristic and test method
Tensile strength	conform to IEC 794-1-E1
Crush	conform to IEC 794-1-E3
Impact	conform to IEC 794-1-E4
Repeated bending	conform to IEC 794-1-E6
Torsion	conform to IEC 794-1-E7
Flexing	conform to IEC 794-1-E8
Cable bend	conform to IEC 794-1-E11
Water penetration	conform to IEC 794-1-F5B
Temperature requirement	Operation		-40~+60ºC
	Installation		-10~+60ºC
	Storage/transportation		-40~+60ºC
Temperature cycling test	conform to IEC 794-1-F1
Bending Radius	Unloaded	10 times of outer diameter
	Loaded	20 times of outer diameter

G652D fiber information
Mode field diameter (1310nm): 9.2±0.4μm
Mode field diameter (1550nm): 10.4±0.8μm
Cladding diameter: 125±1.0μm
Coating diameter: 245±7.0μm
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.21dB/km
Bending loss at 1550nm (100 turns,30mm radius): ≤0.05dB
Dispersion in the range 1288 to 1339nm: ≤3.5ps/(nm·km)
Dispersion at 1550nm: ≤18ps/(nm·km)
Dispersion slope at zero dispersion wavelength: ≤0.092ps/(nm2·km)

Contact Information:
Name: Diego
Mob:+86 15067106732
Tel:+86 571 61107876 Fax:+86 571 61107877

Web: www.hzcxcable.com

We are here waiting for you~

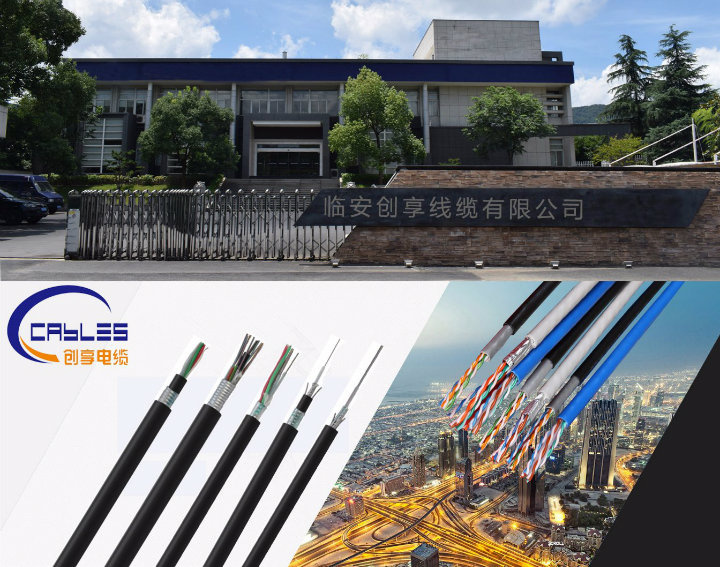

Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.
